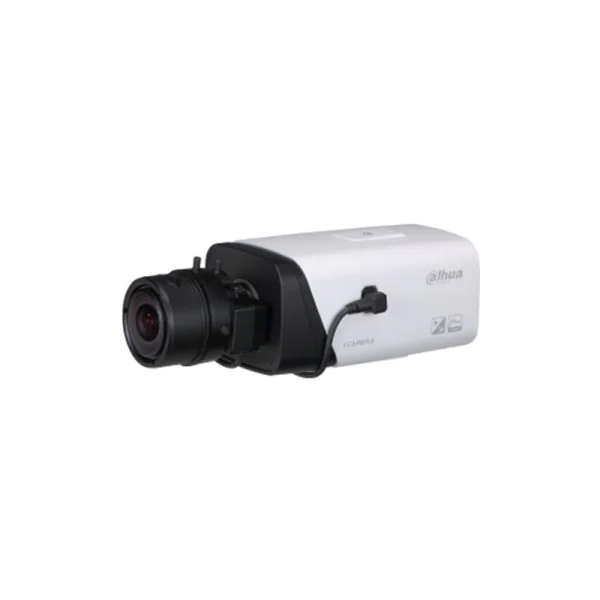

The Dahua IPC-HF81230E-E is a cutting-edge 12MP Box Network Camera designed to deliver superior image quality and advanced features for various surveillance applications. This high-performance camera is tailored to meet the demands of modern security systems, offering impressive resolution and night vision capabilities that ensure reliable monitoring in diverse environments. Ideal for large-scale installations, this camera stands out with its exceptional performance and reliability.
Quick Spec
| Resolution | 12 Megapixels |
| Image Sensor | 1/1.7″ CMOS |
| Frame Rate | 20fps@12MP |
| Lens Type | CS Mount (lens not included) |
| Power Supply | 12V DC/24V AC/PoE+ |
Product Features
- Ultra-high 12MP resolution for clear and detailed images
- Smart detection features including face detection, people counting, and heat mapping
- Supports multiple network protocols for flexible connectivity
- Day/night functionality with IR cut filter for 24/7 monitoring
- Durable construction ensuring high performance in various environments
Product Applications
- City surveillance: Ideal for monitoring large public areas, parks, and streets
- Transportation hubs: Effective for security monitoring in airports, train stations, and bus terminals
- Industrial facilities: Ensures comprehensive surveillance of factory floors and production lines
Supported Options
| Wall Mount Bracket | PFB121W |
| Ceiling Mount Bracket | PFB203W |
| Sun Shield | PFM820 |
Compare to Similar Items
| Model | Difference |
| IPC-HFW81230E-Z | Motorized lens, similar resolution |
| IPC-HDBW8123E-ZE | Vandal-resistant dome design, similar resolution |
| IPC-HFW5231E-Z12 | Zoom lens, lower resolution (2MP) |
Get more information
For further information about the Dahua IPC-HF81230E-E, contact us via Live Chat or at sales@router-switch.com. Check Dahua IPC-HF81230E-E price and IPC-HF81230E-E datasheet, buy Dahua IPC-HF81230E-E Box Network Camera with the best price and fast shipping. Free Live Chat is supported.
Dahua HF81230E-E Specification
IPC-HF81230E-E Specifications |
|
| Brand | Dahua |
| Product Name | IPC-HF81230E-E |
| Type | Box Network Camera |
| Image Sensor | 12MP CMOS |
| Effective Pixels | 4000 x 3000 |
| Minimum Illumination | 0.1 Lux at F1.6 |
| Shutter Speed | 1/3~1/100000s |
| Lens Mount | C/CS |
| Day/Night | Auto(ICR)/Color/B/W |
| Wide Dynamic Range (WDR) | 120dB |
| Video Compression | H.265/H.264/MJPEG |
| Resolution | 12MP (4000 x 3000) |
| Frame Rate | 12MP@20fps |
| Audio Interface | 1/1 In/Out |
| Alarm Interface | 2/1 In/Out |
| Network Interface | 1 RJ-45 (10/100/1000 Base-T) |
| Storage | Micro SD card, up to 128GB |
| Power Supply | DC12V, PoE (802.3af) |
| Operating Conditions | -30��C ~ +60��C |
| Ingress Protection | IP67 |
| Dimensions | 78mm �� 66mm �� 160mm |
| IR Distance | Up to 30m |
| ONVIF | Profile S, G |
Reviews
There are no reviews yet.
