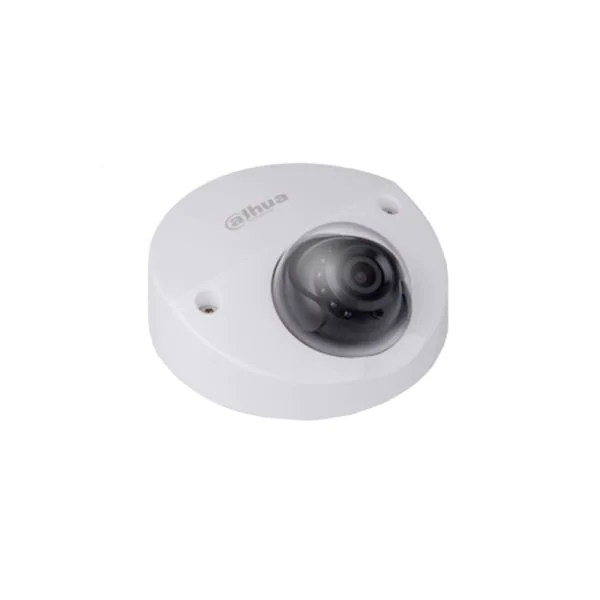

The Dahua IPC-HDBW4231F-M12 is a high-performance 2MP IR Mini Dome Network camera, designed to provide exceptional image quality and advanced monitoring capabilities. With its 2.8mm fixed lens, and optional 3.6mm or 6mm lenses, this camera is versatile enough to meet various security needs for both indoor and outdoor applications.
Quick Spec
| Resolution | 2MP |
| Lens Options | 2.8mm (fixed), 3.6mm, 6mm |
| IR Range | Up to 30 meters (98 feet) |
| Weatherproof Rating | IP67 |
| Operating Temperature | -30C to +60C (-22F to +140F) |
Product Features
- High-resolution 2MP sensor for clear image capture.
- Integrated IR LEDs for night vision up to 30 meters.
- Compact design making it suitable for discreet surveillance.
- Weatherproof with an IP67 rating for outdoor installation.
- Wide dynamic range to handle varied lighting conditions.
Product Applications
- Retail stores and shopping malls for monitoring customer activity and ensuring security.
- Office buildings for securing entry points and common areas.
- Residential areas for monitoring the vicinity of homes and increasing safety.
Supported Options
| Mounting Bracket | PFA139 |
| Power Supply | AC24V/3A |
| Wall Mount | PFB203W |
Compare to Similar Items
| Model | Differences |
| Dahua IPC-HDBW4231F-M | No IR night vision |
| Dahua IPC-HDBW4231R-AS | Built-in microphone |
| Dahua IPC-HDBW5431F-AS | Higher 4MP resolution |
Get more information
For further information about the Dahua IPC-HDBW4231F-M12, its price, and to check the Dahua IPC-HDBW4231F-M12 datasheet, please contact us through Live Chat or email us at sales@router-switch.com. Buy Dahua IPC-HDBW4231F-M12 with the best price and fast shipping. Free Live Chat support is available.
Dahua HDBW4231F-M12 Specification
IPC-HDBW4231F-M12 Specifications |
|
| Brand | Dahua |
| Model | IPC-HDBW4231F-M12 |
| Camera Type | IR Mini Dome Network Camera |
| Image Sensor | 1/2.8�� 2 Megapixel progressive scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Lens Type | Fixed |
| Lens Size | 2.8mm (3.6mm, 6mm optional) |
| Minimum Illumination | 0.009 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on) |
| Day/Night | ICR |
| IR Distance | Up to 20m (66ft) |
| IR On/Off Control | Auto / Manual |
| Interface | RJ-45 (10/100Base-T) |
| Video Compression | H.265/H.264 |
| Ethernet | 10/100Mbps |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | Max 6W |
| Operating Conditions | -30��C ~ +60��C (-22��F ~ +140��F) / Less than 95% RH |
| Ingress Protection | IP67, IK10 |
| Dimension | ��110mm �� 81mm (��4.33″ �� 3.19″) |
| Net Weight | 0.40kg (0.88lb) |
