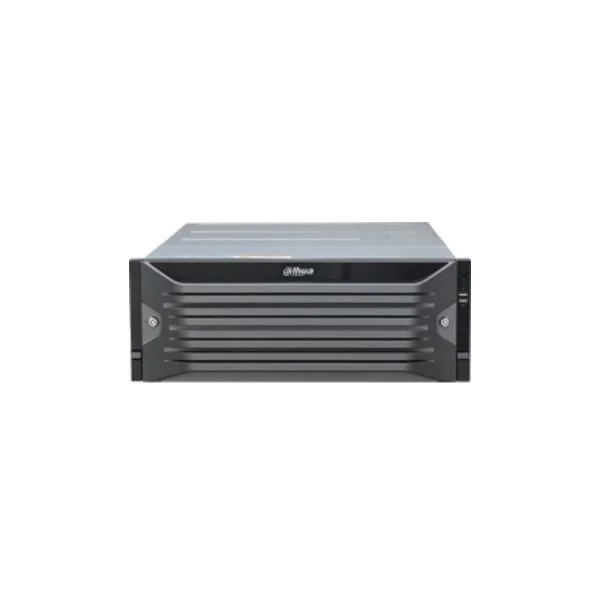

The Dahua EVS7136S is a powerful 36-bay embedded video storage solution designed to meet the demanding needs of video surveillance environments. With its extensive storage capacity and robust performance, this device ensures seamless video recording, management, and playback. Ideal for large-scale installations, it delivers reliable and scalable storage with superior data protection capabilities.
Quick Spec
| Brand | Dahua |
| Model | EVS7136S |
| Storage Bays | 36 bays |
| Form Factor | 4U Rackmount |
| Video Output | 2 HDMI |
| Network Interface | 4 x Gigabit Ethernet |
Product Features
- 36-bay large storage capacity to accommodate extensive video data
- Embedded Linux operating system for stability and security
- Real-time live view and playback of up to 128 channels
- Dual power supply for enhanced reliability
- Supports advanced RAID levels for data redundancy and protection
Product Applications
- Large-scale video surveillance systems in public spaces such as airports and stadiums
- High-security installations including government buildings and financial institutions
- Commercial complexes and shopping malls requiring extensive video recording and storage
Supported Options
| Accessory | Model |
| Hard Drive | Dahua HDD-ST1000 |
| RAID Controller | Dahua RAID-1001 |
| Network Interface Card | Dahua NIC-4000 |
Compare to Similar Items
| Model | Differences |
| Dahua EVS7212S | 12-bay, lower storage capacity and fewer network connections |
| Dahua EVS7124S | 24-bay, mid-range storage capacity and less RAID support |
| Dahua EVS7320S | 20-bay, adaptable to both medium and large installations |
Get more information
Check Dahua EVS7136S price and EVS7136S datasheet, buy Dahua EVS7136S with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, contact us through Live Chat or email us at sales@router-switch.com.
Dahua EVS7136S Specification
EVS7136S Specifications |
|
| Brand | Dahua |
| Model | EVS7136S |
| Form Factor | 36-Bay |
| Video Storage | Embedded |
| Processor | Intel Xeon |
| Memory | 64GB DDR4 |
| Storage Capacity | Up to 360TB |
| Network Interface | 2 x 10Gb Ethernet, 4 x 1Gb Ethernet |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 |
| Operating System | Embedded Linux |
| Video Output | Supports HDMI, VGA |
| USB Ports | 6 USB Ports (4 x USB 3.0, 2 x USB 2.0) |
| Cooling | 8 x Hot Swappable Fans |
| Power Supply | Dual Redundant 2000W |
| Dimensions | 735mm x 482.6mm x 133.35mm |
| Power Consumption | 700W |
| Operating Temperature | 0°C to 45°C |
| Certification | CE, FCC, UL |
| Warranty | 3 Years |
| Power Management | Automatic Startup/Shutdown |
| Audio Input/Output | 2-ch Audio In / 2-ch Audio Out |
