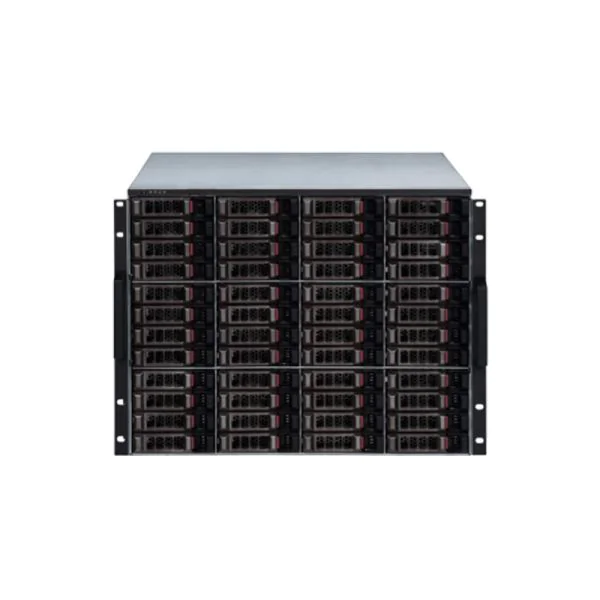

The Dahua EVS7048D-R is an advanced 48-HDD Enterprise Video Storage solution designed for enhanced data handling and security in various enterprise environments. Featuring dual controller technology, this system ensures maximum reliability and performance. Ideal for medium to large-scale surveillance applications, the EVS7048D-R provides efficient data storage and management, making it a robust and reliable choice for businesses seeking secure and high-capacity storage solutions.
Quick Spec
| Brand | Dahua |
| Model | EVS7048D-R |
| Storage Capacity | 48 HDDs |
| Controller Type | Dual Controller |
| Form Factor | 4U Rackmount |
Product Features
- High-density storage supporting up to 48 HDDs.
- Dual controller architecture for improved system reliability.
- Resource-efficient design with optimized power consumption.
- Advanced data protection via RAID 0/1/5/10/50/60 support.
- Scalable storage with easy integration into existing systems.
Product Applications
- Large-scale surveillance systems requiring extensive video data storage.
- Enterprise environments focused on high data integrity and security.
- Data centers needing high-capacity, reliable storage solutions.
Supported Options
| Accessory | Model |
| RAID Controller | ARC-1883IX-24 |
| Power Supply Unit | PSU-2400W-D |
| Network Interface Card | NIC-X550-T2 |
Compare to Similar Items
| Model | Differences |
| EVS7016R-R | 16-HDD capacity, single controller |
| EVS7024S-R | 24-HDD capacity, dual controller, smaller form factor |
| EVS7032D-R | 32-HDD capacity, dual controller |
Get more information
For further information about the Dahua EVS7048D-R, including the price, datasheet, and purchasing options, please contact us through Live Chat or email sales@router-switch.com. Check Dahua EVS7048D-R price and EVS7048D-R datasheet, buy Dahua EVS7048D-R with the best price and fast shipping. Free Live Chat support is available.
Dahua EVS7048D-R Specification
EVS7048D-R Specifications |
|
| Brand | Dahua |
| Model | EVS7048D-R |
| Product Type | Enterprise Video Storage |
| Number of HDD Supported | 48 |
| Controller | Dual Controller |
| Max Storage Capacity | Up to 576TB (12TB per HDD) |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Processor | Intel Xeon Processor |
| Memory | 64GB DDR4 (Expandable to 512GB) |
| Network Interface | 4 x 10GbE SFP+, 2 x 1GbE RJ-45 |
| Power Supply | Redundant 850W, 110-240V AC |
| Operating System | Custom Linux-based OS |
| Form Factor | 4U Rackmount |
| Dimensions | 790mm x 448mm x 175mm |
| Operating Temperature | 0��C to 40��C |
| Storage Temperature | -20��C to 70��C |
| Relative Humidity | 20% to 80% (Non-condensing) |
| Video Input | Support for IP Cameras |
| Compression Technology | H.265, H.264, MJPEG |
| Data Backup | Via e-SATA and USB 3.0 |
| Certification | CE, FCC, UL |
