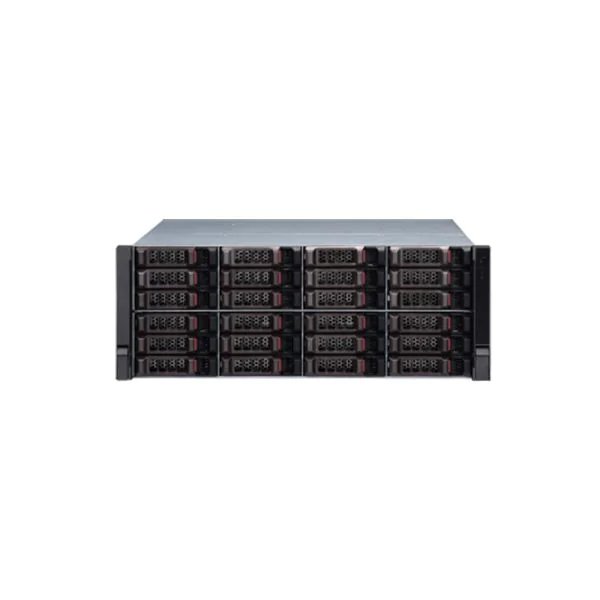

The Dahua EVS7024S-R is a 24-HDD Enterprise Video Storage solution designed to provide comprehensive, high-capacity, and highly efficient video storage capabilities. This enterprise-grade storage unit is perfect for large-scale video surveillance needs, ensuring data integrity, reliability, and scalability for a wide range of applications.
Quick Spec
| Brand | Dahua |
| Model | EVS7024S-R |
| Storage Capacity | Up to 24 HDDs |
| Interface | SATA III |
| Max Throughput | 512 MB/s |
Product Features
- Scalable storage up to 24 hard drives
- High-speed data transfer with SATA III interface
- Redundant power supplies for increased reliability
- Supports RAID 0/1/5/6/10 configurations
- Advanced data protection features
Product Applications
- Large-scale video surveillance systems
- Corporate data centers requiring high-capacity storage
- Public safety monitoring networks
Supported Options
| Accessory | Model |
| Hard Drive | Dahua HDD-4TB |
| RAID Controller | Dahua RAID-CTRL-1 |
| Power Supply | Dahua PS7024 |
Compare to Similar Items
| Model | Differences |
| Dahua EVS7012S-R | 12 HDDs capacity |
| Dahua EVS7048S-R | 48 HDDs capacity |
| Dahua EVS7008S-R | 8 HDDs capacity |
Get more information
For further details and pricing information about the Dahua EVS7024S-R, please contact us through Live Chat or email us at sales@router-switch.com. Check Dahua EVS7024S-R price and EVS7024S-R datasheet, buy Dahua EVS7024S-R with best price and fast shipping. Free Live Chat is supported.
Dahua EVS7024S-R Specification
EVS7024S-R Specifications |
|
| Brand | Dahua |
| Model | EVS7024S-R |
| Storage Capacity | Up to 24 HDDs |
| Max Storage | 240 TB |
| RAID Support | RAID 0, 1, 5, 6, 10, 50 |
| Network Interface | 2 x 10GBase-T, 4 x 1000 Mbps |
| Video Output | 1 x VGA, 1 x HDMI |
| USB Interface | 2 x USB 3.0, 1 x USB 2.0 |
| Operating System | Embedded Linux |
| CPU | Quad-core Processor |
| RAM | 16 GB DDR4 |
| Video Input | 256-channel IP video inputs |
| Power Supply | Redundant Power Supply |
| Power Consumption | 220W (without HDD) |
| Operating Temperature | -10��C to +55��C |
| Dimension | 645 mm �� 446 mm �� 133 mm |
| Certification | CE, FCC, RoHS |
| Warranty | 3 Years |
| Management Interface | Web Browser, Network Client |
| Alarm In/Out | 16/6 channels |
| Heat Dissipation | Active cooling, dual fans |
