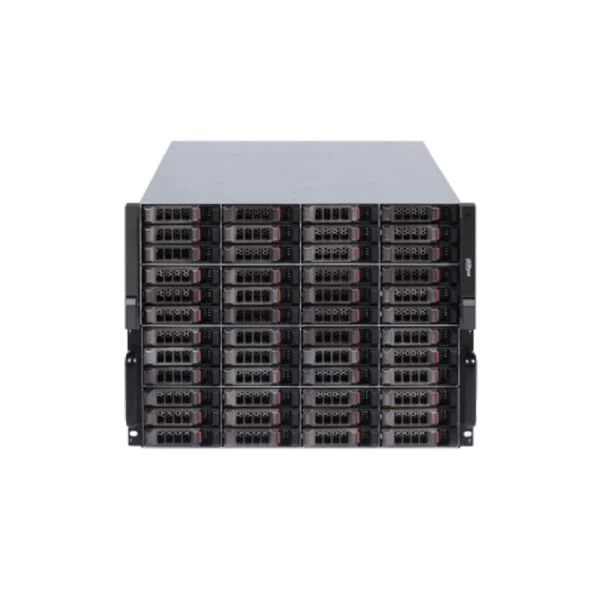

The Dahua EVS5048S-R is a high-capacity enterprise video storage solution that supports up to 48 hard disk drives (HDDs). It is specifically designed to meet the demanding storage needs of surveillance systems, ensuring reliable and efficient data recording and retrieval. Equipped with advanced technologies, this storage solution provides excellent performance and scalability for large-scale video surveillance applications.
Quick Spec
| Brand | Dahua |
| Model | EVS5048S-R |
| Number of HDDs | 48 |
| Storage Capacity | Up to 768TB |
| Interface | Gigabit Ethernet |
Product Features
- High-density storage support for up to 48 HDDs.
- Advanced data protection with RAID configurations.
- Hot-swappable HDD bays for easy maintenance.
- Intelligent video analytics for enhanced security.
- Scalable architecture for expanding storage needs.
Product Applications
- City surveillance systems for extensive urban monitoring.
- Large commercial complexes requiring extensive storage for multiple video feeds.
- Industrial sites needing robust and scalable storage solutions for security footage.
Supported Options
| Accessory | Model |
| Rack Mount Kit | Dahua RMK48 |
| Spare HDD | Dahua HDD8TB |
| Redundant Power Supply | Dahua RPS-EVS48 |
Compare to Similar Items
| Model | Differences |
| Dahua EVS5048S | Does not include redundant power supply |
| Dahua EVS5024S-R | 24 HDD capacity, smaller size |
| Dahua EVS5080S-R | Supports 80 HDDs, larger storage capacity |
Get more information
Check Dahua EVS5048S-R price and EVS5048S-R datasheet, buy Dahua EVS5048S-R with the best price and fast shipping. Free Live Chat are supported.
For further information about the product and its price, contact us through Live Chat or email at sales@router-switch.com.
Dahua EVS5048S-R Specification
EVS5048S-R Specifications |
|
| Brand | Dahua |
| Model | EVS5048S-R |
| Type | Enterprise Video Storage |
| Storage Capacity | 48 HDDs |
| Supported HDD Size | Up to 10TB per drive |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 |
| Network Interface | 4 x Gigabit Ethernet |
| Redundant Power Supply | Yes |
| Max Power Consumption | 600W |
| Hot-swappable Drives | Yes |
| Operating Temperature | 0��C to 40��C (32��F to 104��F) |
| Operating Humidity | 10% to 90% |
| Dimensions (W x D x H) | 447.5mm x 796.6mm x 175.5mm |
| USB Ports | 2 x USB 3.0 |
| Serial Ports | 1 x RS232 |
| VGA Output | 1 x VGA |
| LCD Display | Yes, front panel |
| Operating System | Embedded Linux |
| Video Output Resolution | Up to 1080p |
| Cooling Fans | 4 x Hot-swappable Fans |
| Backup Methods | External Device, Network, Cloud |
| Warranty | 3 Years |
