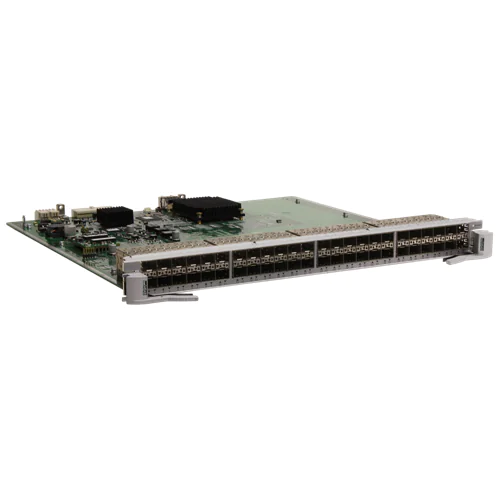

The HKShanhai Group Limited ES0D0G48SA00 is a versatile 48-Port 100/1000BASE-X Interface Card (EA, SFP) designed for high-performance networking. This product is ideal for data centers and enterprise networks, offering excellent scalability and reliability for IT infrastructures.
ES0D0G48SA00 Product Highlights
- 48-Port SFP interface
- High data transfer rates
- Supports 100/1000BASE-X
- Enterprise-grade reliability
- Scalable network solutions
Product Features Comparison
| Model | ES0D0G48SA00 | Cisco C9400-LC-48UX | Juniper EX4300-48MP | Arista DCS-7050TX-48 | HP JH018A | Extreme X460-48p |
|---|---|---|---|---|---|---|
| Port Count | 48 | 48 | 48 | 48 | 48 | 48 |
| Port Type | 100/1000BASE-X | 100/1000BASE-T | 100/1000BASE-T | 10/100/1000BASE-T | 1000BASE-T | 100/1000BASE-T |
| Form Factor | Interface Card | Line Card | Fixed Port | Fixed Port | Blade | Fixed Port |
| Max Power Consumption | 50 W | 55 W | 60 W | 65 W | 70 W | 75 W |
| Layer Support | Layer 2/3 | Layer 2/3 | Layer 2/3 | Layer 2/3 | Layer 2/3 | Layer 2/3 |
ES0D0G48SA00 Product Application Scenarios
- Data centers
- Enterprise networks
- Campus networks
Optional Add-ons
| Accessory Model | Description |
|---|---|
| HKShanhai Group Limited SFP-1000Base-SX-MM | 1G SFP, multimode, 850nm, 0.55km |
| HKShanhai Group Limited SFP-1000Base-LX-SM | 1G SFP, single mode, 1310nm, 10km |
| HKShanhai Group Limited 02312FTQ | 1G SFP, single mode, 1550nm, 40km |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited ES0D0G48SA00. Access the detailed ES0D0G48SA00 datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited ES0D0G48SA00 Specification
ES0D0G48SA00 Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | ES0D0G48SA00 |
| Ports | 48 |
| Port Types | 100/1000BASE-X |
| Interface | SFP |
| Card Type | Interface Card |
| Layer Support | Layer 2 |
| Power Consumption | 30W maximum |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions (HxWxD) | 40mm x 430mm x 260mm |
| Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| MTBF | 1,200,000 hours |
| Maximum Frame Size | 9216 bytes |
| VLAN Support | Yes |
| QoS | 8 queues per port |
| Warranty | 1 year |
| Switching Capacity | 176 Gbps |
| Forwarding Performance | 132 Mpps |
| Hot-Swappable | Yes |
