HKShanhai Group Limited ES0D00MCUA00 is the core of system control, management, maintenance, and also provides the clock source for the system. It provides functions of the control plane and system maintenance plane.
Quick Specs

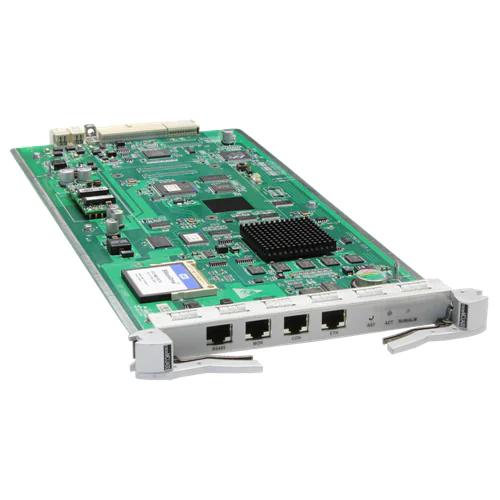

Figure 1 shows the appearance of ES0D00MCUA00.
?
Table 1 shows the Quick Specs.
|
Product Name |
ES0D00MCUA00 |
|
Attribute of a ETH management port |
|
|
Connector type |
RJ45 |
|
Standards compliance |
IEEE802.3 |
|
Working mode |
10/100 Mbit/s auto-sensing |
|
Maximum transmission distance |
100m |
|
Attribute of a console manangement port |
|
|
Connector type |
RJ45 |
|
Working mode |
Duplex Universal Asynchronous Receiver/Transmitter |
|
Standards compliance |
RS232 |
|
Baud rate |
9600 bit/s to 115200 bit/s |
|
Physical specification |
|
|
Dimensions (W x D x H) |
194.5 mm x 426.8 mm x 35.1 mm |
|
Weight (kg) |
0.90 kg (2.0 lb) |
|
Maximum power consumption |
18 W |
|
Environment parameters |
|
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating relative humidity |
5% RH to 95% RH (noncondensing) |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Storage relative humidity |
5% RH to 95% RH (noncondensing) |
Get?More?Information
Do you have any?question?about?the?ES0D00MCUA00
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited ES0D00MCUA00 Specification
S7703 Main Control Unit A
