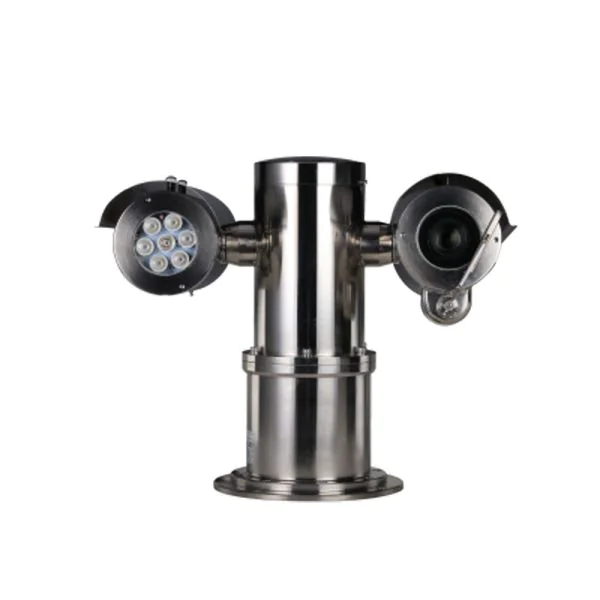

The Dahua EPC245U-PTZ-IR is a highly specialized 2MP 45x Explosion-proof IR Network Positioning System, designed to deliver superior performance in hazardous environments. With its robust explosion-proof construction and advanced imaging technology, this positioning system ensures reliable surveillance and monitoring in challenging conditions.
Quick Spec
| Resolution | 2MP |
| Optical Zoom | 45x |
| IR Distance | Up to 200m |
| Explosion-proof Rating | Exd IIC T6 Gb/ExtD A21 T85 |
| Power Supply | 24V AC |
Product Features
- 45x optical zoom for detailed observation from a significant distance
- Explosion-proof housing, suitable for hazardous environments
- High-performance IR LEDs offering a night vision range of up to 200 meters
- 2 Megapixel resolution providing crystal clear image quality
- Intelligent video analysis technologies for advanced security monitoring
Product Applications
- Oil and gas facilities requiring explosion-proof surveillance equipment
- Chemical plants needing robust monitoring systems in high-risk areas
- Mining sites ensuring safety and security in hazardous operating conditions
Supported Options
| Mounting Bracket | ZJYP-244 |
| Power Supply Adapter | PFM320D-015 |
| Network Cable | PFM920I-6UN-C |
Compare to Similar Items
| EPC245U-PTZ-IR | 2MP 45x Explosion-proof IR Network Positioning System |
| EPC235U-PTZ-IR | 2MP 35x Explosion-proof IR Network Positioning System |
| EPC445U-PTZ-IR | 4MP 45x Explosion-proof IR Network Positioning System |
| EPC245U-PTZ | 2MP 45x Explosion-proof Network Positioning System (No IR) |
Get more information
Contact us through Live Chat or email us at sales@router-switch.com for more information about the Dahua EPC245U-PTZ-IR and its pricing.
Dahua EPC245U-PTZ-IR (only for project) Specification
EPC245U-PTZ-IR (only for project) Specifications |
|
| Brand | Dahua |
| Model | EPC245U-PTZ-IR (only for project) |
| Camera Resolution | 2MP (1920×1080) |
| Zoom | 45x Optical Zoom |
| Infrared | Yes (IR) |
| Explosion-proof Rating | Yes |
| Image Sensor | 1/1.9″ CMOS |
| Minimum Illumination | Color: 0.005Lux@F1.5; B/W: 0Lux (IR on) |
| Shutter Speed | 1/1s to 1/30,000s |
| Lens | 6-270mm |
| Day/Night | Auto (ICR) / Color / B/W |
| S/N Ratio | 55dB |
| Video Compression | H.265/H.264 |
| Network Interface | RJ-45 (10/100 Base-T) |
| Power Supply | AC 24V / DC 36V |
| Power Consumption | Max. 65W |
| Operating Temperature | -40C to +60C |
| Protection Level | IP68 |
| Video Frame Rate | Main Stream: 1080P/1.3MP/720P (1~50/60fps); Sub Stream: D1/CIF (1~25/30fps) |
| Storage | Micro SD, Max 128GB |
| Control Protocol | ONVIF, CGI, P2P |
