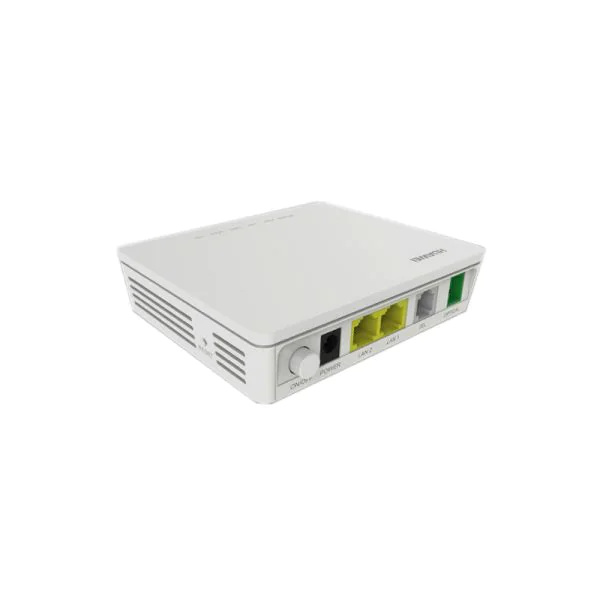

HKShanhai Group Limited EG8120L, an intelligent routing-type ONT.
Product Details
HKShanhai Group Limited EG8120L provides these features:
GPON Port
Class B+
Receiver sensitivity: -27dBm
Overload optical power: -8 dBm
Wavelengths: US 1310 nm, DS 1490 nm
Wavelength blocking filter (WBF)
Flexible mapping between GEM Port and TCONT
GPON: consistent with the SN or password authentication defined in G.984.3
Bi-directional FEC
SR-DBA and NSR-DBA
Type B (single-homing&dual-homing)
Ethernet Port
Ethernet port-based VLAN tags and tag removal
1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
QinQ VLAN
Limit on the number of learned MAC addresses
MAC address learning
Local switching/isolation based on Ethernet ports
Transparent transmission of IPv6 packets at Layer 2
POTS Port
Maximum REN: 4
G.711A/, G.729a/b, and G.722 encoding/decoding
T.30/T.38/G.711 fax mode
DTMF
Emergency calls (with the SIP protocol)
Smart interconnection
SIP/H.248 auto-negotiation
Any port any service
Parental control
Smart O&M
Variable-length OMCI messages
Active/Passive rogue ONT detection and isolation
PPPoE/DHCP simulation testing
Call emulation, and circuit test and loop-line test
eSight management
Security
MAC address filtering
Power Saving
Indicator power saving
Power consumption reduction of idle components in power-saving state
COC V5
Common O&M
OMCI/Web UI
Dual-system software backup and rollback
802.1ag Ethernet OAM
Optical link measurement and diagnosis
Loopback check
QoS
Ethernet port rate limitation
802.1p priority
SP/WRR/SP+WRR
Broadcast packet rate limitation
Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Layer 3 Features
PPPoE/Static IP/DHCP
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS/DNS server/DNS client
IPv6/IPv4 dual stack, and DS-Lite
Static/Default routes
Multiple services on one WAN port
Multicast
IGMP v2/v3 snooping
MLD v1/v2 snooping
Fast leave
VLAN tag translation, transparent transmission, and removal for downstream multicast packets
IGMP/MLD protocol packet rate limitation
Get More Information
Do you have any question about the EG8120L
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited EG8120L Specification
EG8120L Specification |
|
|
Dimensions (H x W x D) |
30 mm x 115 mm x 94 mm |
|
Operating temperature |
0° C to +40° C |
|
Operating humidity |
5% RH to 95% RH (non condensing) |
|
Power adapter input |
100–240 V AC, 50/60 Hz |
|
System power supply |
11–14 V DC, 1 A |
|
Static power consumption |
3.8 W |
|
Maximum power consumption |
4.9 W |
|
Ports |
1POTS+1GE+1FE |
|
Indicators |
POWER/PON/LOS/LAN/TEL |
