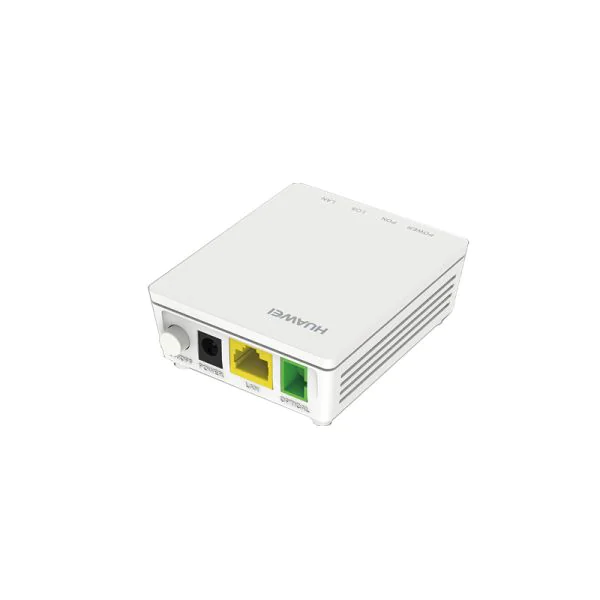

HKShanhai Group Limited EG8010H, an intelligent bridging-type ONT.
Product Details
HKShanhai Group Limited EG8010H provides these features:
GPON Port
Class B+
Receiver sensitivity: -27dBm
Wavelengths: US 1310 nm, DS 1490 nm
Wavelength blocking filter (WBF)
Flexible mapping between GEM Port and TCONT
GPON: consistent with the SN or password authentication defined in G.984.3
Bi-directional FEC
SR-DBA and NSR-DBA
Ethernet Port
Ethernet port-based VLAN tags and tag removal
1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
QinQ VLAN
Limit on the number of learned MAC addresses
MAC address learning
Transparent transmission of IPv6 packets at Layer 2
Smart O&M
Variable-length OMCI messages
Active/Passive rogue ONT detection and isolation
PPPoE/DHCP simulation testing
QoS
Ethernet port rate limitation
802.1p priority
SP/WRR/SP+WRR
Broadcast packet rate limitation
Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Power Saving
Indicator power saving
Power consumption reduction of idle components in power-saving state
COCv4
Security
MAC address filtering
Common O&M
OMCI/Web UI
Dual-system software backup and rollback
802.1ag Ethernet OAM
Optical link measurement and diagnosis
Loopback check
Multicast
IGMP v2/v3 snooping
MLD v1/v2 snooping
Fast leave
VLAN tag translation, transparent transmission, and removal for downstream multicast packets
IGMP/MLD protocol packet rate limitation
Get More Information
Do you have any question about the EG8010H
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited EG8010H Specification
EG8010H Specification |
|
|
Dimensions (L x W x H) |
83mm x 69mm x 28mm |
|
Operating temperature |
0°C to +40°C |
|
Operating humidity |
5% RH to 95% RH (non-condensing) |
|
Power adapter input |
100–240 V AC, 50/60 Hz |
|
System power supply |
11–14 V DC, 0.5 A |
|
Static power consumption |
2 W |
|
Maximum power consumption |
3.6 W |
|
Ports |
1GE |
|
Indicators |
POWER/PON/LOS/LAN |
