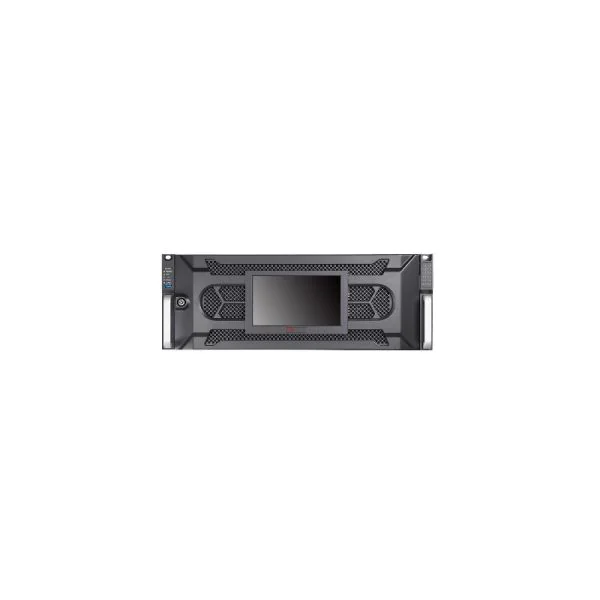

The Hikvision DS-96128NI-I24 is a high-capacity, 128-channel 4U 4K Super NVR designed for large-scale video surveillance needs. This robust Network Video Recorder provides superior video quality, massive storage options, and advanced features to support extensive security systems. Ideal for businesses and organizations demanding reliable and scalable surveillance solutions.
Quick Spec
| Brand | Hikvision |
| Model | DS-96128NI-I24 |
| Channels | 128 |
| Form Factor | 4U |
| Video Output | 4K |
Product Features
- Supports up to 128 channels of video input
- 4U rack-mounted design for easy integration
- High-definition 4K video output
- Advanced video analytics and smart search options
- Expandable storage with up to 24 HDDs
Product Applications
- Large enterprises requiring extensive surveillance systems
- Government and public sector facilities with high-security needs
- Retail chains with multiple locations needing centralized monitoring
Supported Options
| Accessory | Model |
| Hard Disk Drive | HDD-4TB |
| UPS Battery Backup | UPS-1500VA |
| Network Switch | NS-48P |
Compare to Similar Items
| Model | Differences |
| DS-9632NI-I24 | Supports 32 channels, same 4U form factor, 4K video output |
| DS-9616NI-I8 | Supports 16 channels, 2U form factor, 4K video output, fewer HDD slots |
| DS-9664NI-I24 | Supports 64 channels, same 4U form factor, 4K video output |
Get more information
Check ‘Hikvision DS-96128NI-I24’ price and ‘DS-96128NI-I24 datasheet’, buy ‘Hikvision DS-96128NI-I24 Super NVR’ with best price and fast shipping. Free Live Chat are supported. Contact us at sales@router-switch.com for further information about the product and its price, including detailed specifications and availability via Live Chat.
Hikvision DS-96128NI-I24 Specification
DS-96128NI-I24 Specifications |
|
| Brand | Hikvision |
| Model | DS-96128NI-I24 |
| Channels | 128 |
| Form Factor | 4U |
| Video Output | HDMI, VGA |
| Maximum Resolution | 4K (3840 x 2160) |
| Compression | H.265, H.264 |
| Decoding Capability | 12-ch 12MP, 16-ch 8MP, 32-ch 4MP |
| Network Interface | 4 x 1 Gigabit Ethernet |
| USB Interface | 2 x USB 2.0, 1 x USB 3.0 |
| HDD Bays | 24 SATA interfaces |
| RAID Support | RAID 0, 1, 5, 10 |
| Alarm I/O | 16/8 |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | �� 100W (without HDD) |
| Operating Temperature | -10��C to +55��C (+14��F to +131��F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Dimensions | 19�� x 17.5�� x 7�� (W x D x H) |
| Supported Protocols | IPv6, HTTPS, SNMP, NTP, SMTP, NFS, iSCSI, UPnP?, etc. |
| Recording Modes | Continuous, Event, Alarm, Motion Detection |
| Casing | Metal |
