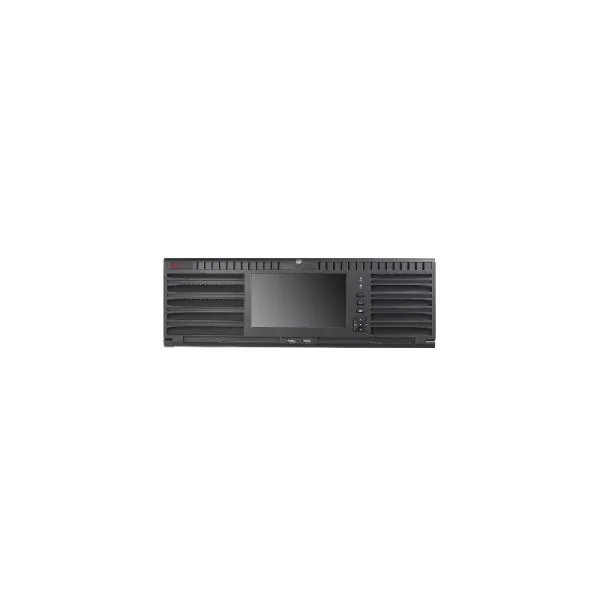

The Hikvision DS-96128NI-I16 is a high-performance 128-channel 3U 4K Super NVR designed to meet the demands of extensive video surveillance systems. Its robust design and advanced features make it an excellent choice for large-scale security installations, providing exceptional video quality and enhanced storage capabilities.
**
Quick Spec
**
| Brand | Hikvision |
| Model | DS-96128NI-I16 |
| Channels | 128 |
| Form Factor | 3U |
| Resolution | 4K |
**
Product Features
**
- Supports up to 128 IP cameras
- 4K ultra-high-definition video output
- Up to 16 SATA interfaces for HDD connection
- RAID 0, 1, 5, 6, 10 support
- Advanced video analytics and smart search functionality
**
Product Applications
**
- Large-scale commercial and industrial complexes requiring continuous surveillance
- City surveillance projects with a need for vast storage and high image clarity
- Critical infrastructure facilities such as airports and seaports demanding high channel counts and reliability
**
Supported Options
**
| HDD | DS-A80624S |
| RAID Controller | RAID-PR-8I |
| Network Interface Card | NIC-XL710QDA2 |
**
Compare to Similar Items
**
| Model | Differences |
| DS-96128NI-I8 | 8 SATA interfaces, lower storage capacity |
| DS-9632NI-I16 | 32 channels, lower channel count |
| DS-96256NI-I24 | 24 SATA interfaces, higher storage capacity |
**
Get more information
**
For further information about the Hikvision DS-96128NI-I16 and its price, you can reach out via Live Chat or email us at sales@router-switch.com. Check Hikvision DS-96128NI-I16 price and DS-96128NI-I16 datasheet, buy Hikvision DS-9600 series with best price and fast shipping. Free Live Chat support is available.
Hikvision DS-96128NI-I16 Specification
DS-96128NI-I16 Specifications |
|
| Brand | Hikvision |
| Model | DS-96128NI-I16 |
| Channels | 128 |
| Form Factor | 3U |
| Supported Resolution | 4K |
| Video Compression | H.265/H.264/MJPEG |
| Max Incoming Bandwidth | 768 Mbps |
| Max Outgoing Bandwidth | 400 Mbps |
| Video Output | 2 HDMI, 1 VGA |
| Audio Compression | G.711/G.722/G.726/MP2L2/AAC |
| RAID Levels | RAID 0, 1, 5, 6, 10, 50, 60 |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SNMP |
| Number of HDDs Supported | 16 |
| Max Capacity per HDD | 10 TB |
| USB Interface | Front: 2 �� USB 2.0; Rear: 2 �� USB 3.0 |
| Ethernet Interface | 4 Gigabit Ethernet ports (RJ-45) |
| Power Supply | AC 100-240 V |
| Operating Temperature | -10��C to +55��C |
| Operating Humidity | 10% to 90% |
| Dimensions | 446 �� 460 �� 146 mm (17.6 �� 18.1 �� 5.7 inch) |
| Power Consumption (without HDD) | ��75W |
