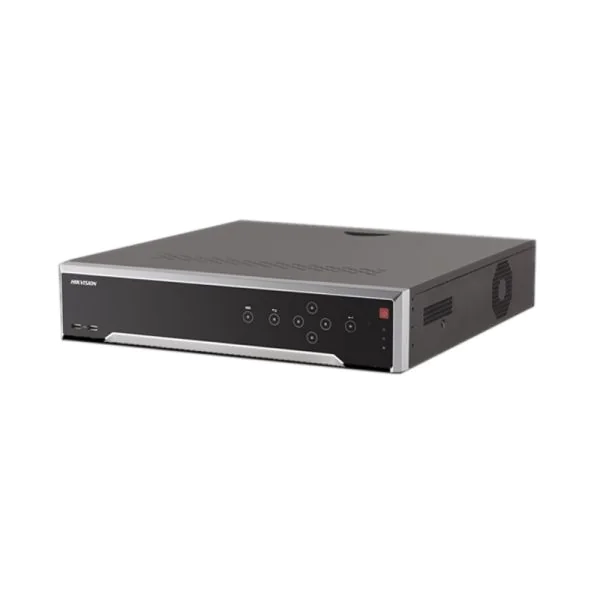

Hikvision DS-8616NI-K8 is an Embedded 4K NVR.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-8616NI-K8 |
|
Video/Audio Input |
|
|
Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1k) |
|
IP video input |
16-ch |
|
Network |
|
|
Incoming bandwidth |
160Mbps |
|
Outgoing bandwidth |
160Mbps |
|
Video/Audio Output |
|
|
HDMI/VGA output |
4-ch, VGA1: 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz; HDMI1: 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz; VGA2/HDMI2: 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz |
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Synchronous Playback |
16-ch |
|
Decoding |
|
|
Capability |
8-ch@1080P |
|
Live view / Playback |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Product Details
Hikvision DS-8616NI-K8 provides these main features:
Professional and Reliable
Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
HD Input
H.265/ H.265+/H.264//H.264+/MPEG4 video formats
Connectable to the third-party network cameras
Up to 32 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI1/VGA1 and HDMI2/VGA2 independent outputs provided
HDMI1 Video output at up to 4K (3840 2160) resolution
HD Storage
Up to 8 SATA interfaces and 1 eSATA interface connectable for recording and backup
Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
2 self-adaptive 10 M/100 M/1000 Mbps network interfaces, and two working modes are configurable: multi-address and network fault tolerance
Various Applications
Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Supports HDD quota and group modes; different capacity can be assigned to different channels
Get More Information
Do you have any question about the DS-8616NI-K8
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-8616NI-K8 Specification
DS-8616NI-K8 Specification |
|
|
Video/Audio Input |
|
|
Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
IP video input |
16-ch |
|
Network |
|
|
Incoming bandwidth |
160Mbps |
|
Outgoing bandwidth |
160Mbps |
|
Video/Audio Output |
|
|
HDMI/VGA output |
4-ch, VGA1: 2K (2560 Ă— 1440)/60Hz, 1920 Ă— 1080/60Hz, 1280 Ă—1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz; HDMI1: 4K (3840 Ă— 2160)/60Hz, 4K (3840 Ă— 2160)/30Hz, 2K (2560Ă— 1440)/60Hz, 1920 Ă— 1080/60Hz, 1600 Ă— 1200/60Hz, 1280 Ă—1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz; VGA2/HDMI2: 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/ 60Hz, 1024 Ă—768/60Hz |
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Synchronous Playback |
16-ch |
|
Decoding |
|
|
Capability |
8-ch@1080P |
|
Live view / Playback |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
|
Hard Disk |
|
|
eSATA |
1 eSATA interface |
|
SATA |
8 SATA interfaces for 8 HDDs |
|
Capacity |
Up to 8TB capacity for each HDD |
|
External Interface |
|
|
Network Interface |
2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
|
Serial Interface |
RS-232, RS-485, Keyboard |
|
USB Interface |
Front panel: 2 Ă— USB 2.0Â |
|
Rear panel: 1 Ă— USB 3.0 |
|
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Power |
200 W |
|
Consumption(without hard disk and POE) |
??30 W |
|
Working Temperature |
-10 ??~ +55 ??(+14 ℉~ + 131 ?? |
|
Working Humidity |
10 % ~ 90 % |
|
Chassis |
2U chassis |
|
Dimensions |
445 Ă— 470 Ă— 90 mm (17.5″ Ă— 18.5″ Ă— 3.5″) |
