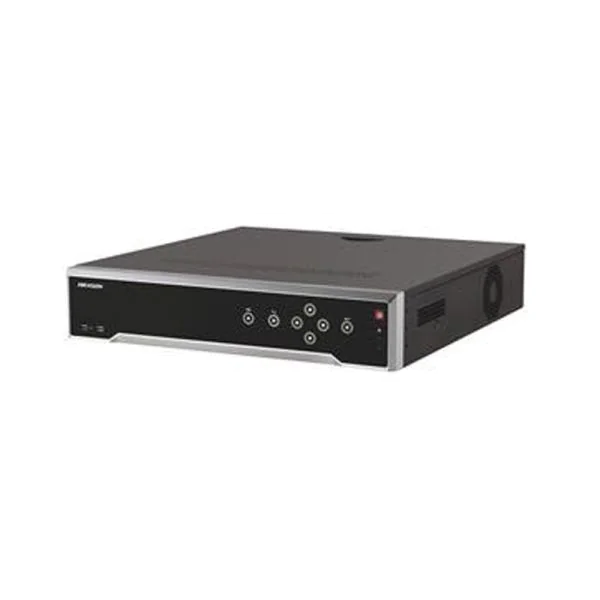

Hikvision DS-7716NI-I4 is the DS-7700NI-I4 Series NVR.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-7716NI-I4 |
|
Video/Audio input |
IP video input: 16-ch, Up to 12 MP resolution Two-way audio: 1-ch, RCA (2.0 Vp-p, 1k) |
|
Network |
Incoming bandwidth: 160 Mbps Outgoing bandwidth: 256 Mbps Remote connection: 128 |
|
Video/Audio output |
Recording resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF HDMI output resolution: 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 1920 1080p/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz VGA output resolution: 1920 1080p/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz Audio output: 1-ch, RCA (Linear, 1 K) |
|
Decoding |
Decoding format: H.265/H.264/MPEG4 Live view / Playback resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF Synchronous playback: 16-ch Capability: 4-ch @ 4K, or 16-ch @ 1080p |
Product Details
Hikvision DS-7716NI-I4 provides these key features:
Professional and Reliable
Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
HD Input
H.265/H.264+/H.264/MPEG4 video formats
Connectable to the third-party network cameras
Up to 32 IP cameras can be connected
Recording at up to 12 MP resolution
Supports live view, storage, and playback of the connected camera at up to 12 MP resolution
HD Output
HDMI and VGA outputs provided
HDMI Video output at up to 4K (3840 2160) resolution
HD Storage
Up to 4 SATA interfaces connectable for recording and backup
Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
2 self-adaptive 10M/100M/1000M network interfaces
Various Applications
Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Supports HDD quota and group modes; different capacity can be assigned to different channels
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
DS-7716NI-I4 |
|
|
Video/Audio input |
IP video input: 32-ch, Up to 12 MP resolution Two-way audio: 1-ch, RCA (2.0 Vp-p, 1k) |
IP video input: 16-ch, Up to 12 MP resolution Two-way audio: 1-ch, RCA (2.0 Vp-p, 1k) |
|
Network |
Incoming bandwidth: 256 Mbps Outgoing bandwidth: 256 Mbps Remote connection: 128 |
Incoming bandwidth: 160 Mbps Outgoing bandwidth: 256 Mbps Remote connection: 128 |
|
Video/Audio output |
Recording resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF HDMI output resolution: 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 1920 1080p/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz VGA output resolution: 1920 1080p/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz Audio output: 1-ch, RCA (Linear, 1 K) |
Recording resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF HDMI output resolution: 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 1920 1080p/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz VGA output resolution: 1920 1080p/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz Audio output: 1-ch, RCA (Linear, 1 K) |
|
Decoding |
Decoding format: H.265/H.264/MPEG4 Live view / Playback resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF Synchronous playback: 16-ch Capability: 4-ch @ 4K, or 16-ch @ 1080p |
Decoding format: H.265/H.264/MPEG4 Live view / Playback resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF Synchronous playback: 16-ch Capability: 4-ch @ 4K, or 16-ch @ 1080p |
Get More Information
Do you have any question about the DS-7716NI-I4
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-7716NI-I4 Specification
DS-7716NI-I4 Specification |
|
|
Video/Audio input |
IP video input: 16-ch, Up to 12 MP resolution Two-way audio: 1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
Network |
Incoming bandwidth: 160 Mbps Outgoing bandwidth: 256 Mbps Remote connection: 128 |
|
Video/Audio output |
Recording resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF  HDMI output resolution: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz  VGA output resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz  Audio output: 1-ch, RCA (Linear, 1 KΩ) |
|
Decoding |
Decoding format: H.265/H.264/MPEG4  Live view / Playback resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF  Synchronous playback: 16-ch  Capability: 4-ch @ 4K, or 16-ch @ 1080p |
|
Hard disk |
SATA: 4 SATA interfaces for 4HDDs Capacity: Up to 6TB capacity for each HDD |
|
External interface |
Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces Serial interface: 1 RS-485 (half-duplex), 1 RS-232 USB interface: Front panel: 2 Ă— USB 2.0; Rear panel: 1 Ă— USB 3.0 Alarm in/out: 16/4 |
|
General |
Power supply: 100 to 240 VAC Power: ??0 W Consumption (without hard disk): ??0 W Working temperature: -10 to +55ºC (14 to 131ºF) Working humidity: 10 to 90 % Chassis: 19-inch rack-mounted 1.5U chassis Dimensions (W Ă— D Ă— H): 445 Ă— 390 Ă—70 mm ( 17.5″Ă— 15.3″ Ă— 2.8″) |
Â
Â
