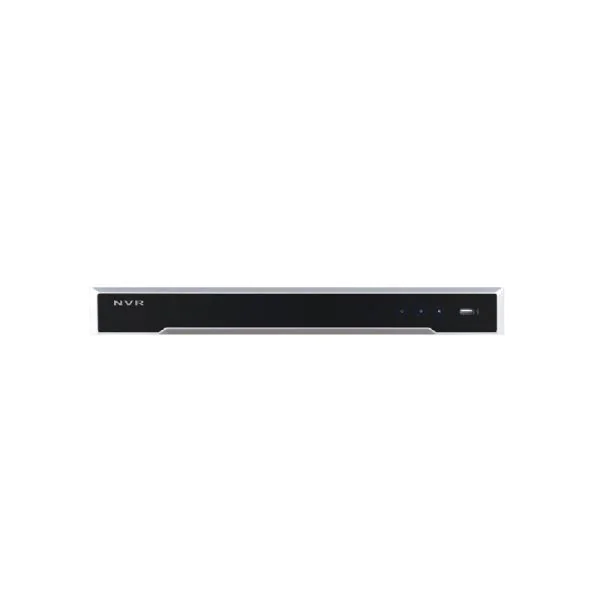

The Hikvision DS-7616NI-I2/16P is a high-performance 16-channel NVR that supports 16 PoE interfaces. This versatile 1U device can handle inputs from multiple cameras and supports 4K video resolution, making it ideal for sophisticated surveillance solutions. Engineered for efficiency and reliability, this NVR ensures seamless recording and playback, enhancing your security operations.
Quick Spec
| Brand | Hikvision |
| Product Name | DS-7616NI-I2/16P |
| Number of Channels | 16 |
| PoE Interfaces | 16 |
| Video Output Resolution | 4K |
| Form Factor | 1U |
Product Features
- Supports up to 16 channels with PoE functionality.
- 4K video output for superior image clarity.
- Efficient H.265+ compression technology.
- Dual-OS design for high reliability and redundancy.
- Supports RAID 0, 1, 5, 6, 10.
Product Applications
- Large commercial buildings requiring extensive surveillance.
- Retail stores needing high-resolution video for security monitoring.
- Institutional environments like schools or hospitals where robust security is crucial.
Supported Options
| Hard Drive | WD Purple 2TB |
| Network Cable | Cable Matters Cat6 |
| UPS | APC 1500VA |
Compare to Similar Items
| Model | Differences |
| DS-7608NI-I2/8P | 8 channel, 8 PoE interfaces, lower cost |
| DS-7732NI-I4/16P | 32 channel, higher PoE power budget, larger storage capacity |
| DS-7616NI-E2/8P | 16 channel, 8 PoE interfaces, budget version |
Get more information
For further information about the Hikvision DS-7616NI-I2/16P, contact us through Live Chat or email us at sales@router-switch.com. Check Hikvision DS-7616NI-I2/16P price and DS-7616NI-I2/16P datasheet, buy Hikvision DS-7616NI Series with the best price and fast shipping. Free Live Chat support is available.
Hikvision DS-7616NI-I2/16P Specification
DS-7616NI-I2/16P Specifications |
|
| Brand | Hikvision |
| Model | DS-7616NI-I2/16P |
| Channels | 16 |
| Form Factor | 1U |
| PoE Ports | 16 |
| Max Resolution | 4K |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1 channel, resolution: 4K (3840 �� 2160) |
| VGA Output | 1 channel, resolution: 1920 �� 1080 |
| Decoding Capability | Up to 8-ch @ 1080p |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, iVMS-4200 |
| Internal HDD | 2 SATA interfaces, up to 6 TB capacity for each HDD |
| RAID | RAID 0, 1, 5, 6, 10 supported |
| Alarm In/Out | 16/4 |
| USB Ports | 2 x USB 2.0 |
| Operating System | Embedded LINUX |
| Network Interface | 1 x 10/100/1000 Mbps self-adaptive Ethernet interface |
| Dimensions | 445 �� 390 �� 70 mm |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | �� 200 W (including HDDs) |
| Operating Temperature | -10��C to +55��C |
| Operating Humidity | 10% to 90% |
