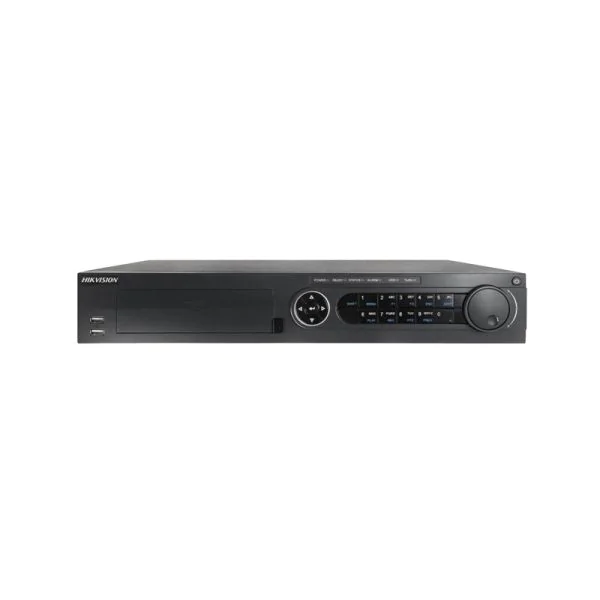

Hikvision DS-7332HQHI-K4 is the Turbo HD DVR.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-7332HQHI-K4 |
|
Video/Audio Input |
|
|
Audio Input |
4-ch |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Analog and HD-TVI video input |
32-ch, BNC interface (1.0Vp-p, 75 ) connection |
|
Supported camera types |
Support HDTVI input: 4MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz |
|
Video Input Interface |
BNC (1.0 Vp-p, 75) |
|
Audio Compression |
G.711u |
|
Audio Input Interface |
4-ch, RCA (2.0 Vp-p, 1 K) |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 K) (using audio input) |
|
Video/Audio Output |
|
|
CVBS Output |
1-ch, BNC(1.0Vp-p,75), resolution:PAL:704×576, NTSC:704×480 |
|
HDMI2 Output |
1-ch,4K(3840 2160)/30Hz,2K(2560 1440)/60Hz,19201080/60Hz,1280 1024/60Hz,1280 720/60Hz, 1024 768/60Hz |
|
HDMI/VGA Output |
1920 1080 / 60 Hz,1280 1024 / 60 Hz, 1280 720 / 60 Hz, 1024 768 / 60 Hz |
|
Recording resolution |
When 1080p Lite mode not enabled: |
|
Frame Rate |
Main stream: |
Product Details
Hikvision DS-7716NI-K4 provides these key features:
Third-party network cameras supported
Up to 8 Megapixels resolution recording
Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160) resolution
16/32-ch network cameras can be connected with 160M/256M incoming bandwidth
Up to 4 SATA interfaces
Support dual-os to ensure high reliablility of system running
Support various VCA detection alarm and VCA search
Support H.265/H.264/MPEG4 video formats
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
||
|
Video/Audio input |
IP video input: 16-ch, Up to 12 MP resolution Two-way audio: 1-ch, RCA (2.0 Vp-p, 1k) |
IP video input: 16-ch Two-way audio: 1-ch, RCA (2.0 Vp-p, 1k) |
|
Network |
Incoming bandwidth: 160 Mbps Outgoing bandwidth: 256 Mbps Remote connection: 128 |
Incoming bandwidth: 160 Mbps Outgoing bandwidth: 160 Mbps Remote connection: 128 |
|
Video/Audio output |
Recording resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF HDMI output resolution: 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 1920 1080p/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz VGA output resolution: 1920 1080p/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz Audio output: 1-ch, RCA (Linear, 1 K) |
Recording resolution: 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF HDMI output resolution: 1-ch, resolution: 4K (3840*2160)/60Hz, 4K (3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz VGA output resolution: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz Audio output: 1-ch, RCA (Linear, 1k) |
|
Decoding |
Decoding format: H.265/H.264/MPEG4 Live view / Playback resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF Synchronous playback: 16-ch Capability: 4-ch @ 4K, or 16-ch @ 1080p |
Live view / Playback resolution: 8MP / 6MP / 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF Capability: 8-ch@1080P |
Get More Information
Do you have any question about the DS-7332HQHI-K4
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-7332HQHI-K4 Specification
DS-7332HQHI-K4 Specification |
|
|
Video/Audio Input |
|
|
Audio Input |
4-ch |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Analog and HD-TVI video input |
32-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
|
Supported camera types |
Support HDTVI input: 4MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for channel 1/2/3/4. Support AHD input: 4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz Support CVI input: 1080p25, 1080p30, 720p25, 720p30 support CVBS input |
|
Video Input Interface |
BNC (1.0 Vp-p, 75Ω) |
|
Audio Compression |
G.711u |
|
Audio Input Interface |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
|
Video/Audio Output |
|
|
CVBS Output |
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 |
|
HDMI2 Output |
1-ch,4K(3840 Ă— 2160)/30Hz,2K(2560 Ă— 1440)/60Hz,1920Ă—1080/60Hz,1280 Ă— 1024/60Hz,1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz |
|
HDMI/VGA Output |
1920 Ă— 1080 / 60 Hz,1280 Ă— 1024 / 60 Hz, 1280 Ă— 720 / 60 Hz, 1024 Ă— 768 / 60 Hz |
|
Recording resolution |
When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
|
Frame Rate |
Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
|
Video Bit Rate |
32 Kbps-6 Mbps |
|
Stream Type |
Video/Video&Audio |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) |
|
Audio Output |
1-ch RCA(Linear, 1kΩ) |
|
Dual Stream |
Support |
|
Synchronous Playback |
16-ch |
|
Network management |
|
|
Remote connections |
128 |
|
Network protocols |
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
|
Hard Disk Driver |
|
|
Interface Type |
4 SATA Interfaces |
|
Capacity |
Up to 10 TB capacity for each disk |
|
External Interface |
|
|
Network Interface |
1; 10M / 100M / 1000M self-adaptive Ethernet interface |
|
USB Interface |
2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
|
Alarm Input |
16-ch |
|
Alarm Output |
4-ch |
|
General |
|
|
Power Supply |
100 to 240 VAC |
|
Consumption |
??45W(without hard disks) |
|
Working Temperature |
-10 ??to +55 ??(+14 ??to +131 ?? |
|
Working Humidity |
10% to 90% |
|
Dimensions |
440 Ă— 390 Ă— 70 mm (17.3 Ă— 15.4 Ă— 2.8 inch) |
