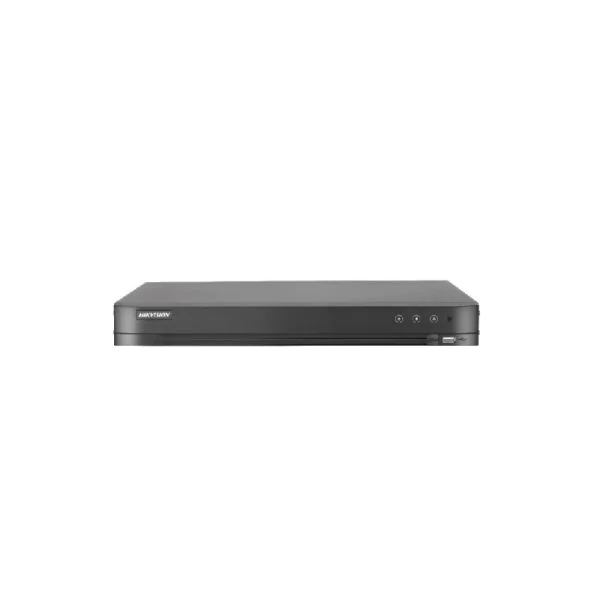

The Hikvision DS-7232HGHI-K2 is a state-of-the-art 32-channel DVR that supports 1080p Lite resolution and utilizes H.265 compression technology. Perfect for extensive surveillance needs, this 1U form factor device offers robust performance and storage capabilities, making it suitable for various security applications.
Quick Spec
| Channels | 32 |
| Resolution | 1080p Lite |
| Compression Technology | H.265 |
| Form Factor | 1U |
| Hard Drives Supported | 2 SATA interfaces |
Product Features
- Supports long-distance HD transmission over coaxial cable
- H.265 Pro+ can significantly improve the encoding efficiency and reduce the data storage cost
- Capable of providing error-free functionality in varied bandwidth conditions
- Dual-stream support for recording and network transmission
- Supports multiple VCA (Video Content Analytics) events
Product Applications
- Commercial Buildings: Ideal for monitoring extensive commercial properties with multiple entry points.
- Retail Stores: Provide high-quality, continuous video surveillance for shoplifting prevention and staff monitoring.
- Warehouses: Excellent for overseeing large storage areas to ensure inventory safety.
Supported Options
| Accessory | Model |
| Surveillance Hard Drive | WD Purple 4TB |
| Camera | Hikvision DS-2CE16D0T-IRP |
| UPS | APC BX600C-IN |
Compare to Similar Items
| Parameter | Hikvision DS-7232HGHI-K2 | Hikvision DS-7216HGHI-K1 | Hikvision DS-7208HQHI-K2 | Hikvision DS-7104HGHI-F1 |
| Channels | 32 | 16 | 8 | 4 |
| Resolution | 1080p Lite | 720p Lite | 720p | 1080p Lite |
| Compression | H.265 | H.265 | H.265 | H.264 |
| Form Factor | 1U | 1U | 1U | Desktop |
| SATA Interfaces | 2 | 1 | 2 | 1 |
Get more information
For more information about the Hikvision DS-7232HGHI-K2, please reach out via Live Chat or email us at sales@router-switch.com. Check Hikvision DS-7232HGHI-K2 price and DS-7232HGHI-K2 datasheet, buy Hikvision DS-7232HGHI-K2 DVR with the best price and fast shipping. Free Live Chat support is available for any inquiries.
Hikvision DS-7232HGHI-K2 Specification
DS-7232HGHI-K2 Specifications |
|
| Brand | Hikvision |
| Model | DS-7232HGHI-K2 |
| Video/Audio Input | 32 channels |
| Video Compression | H.265 |
| Recording Resolution | 1080p Lite |
| Video Output Interface | VGA, HDMI |
| Audio Output | 1-ch RCA |
| Playback | Simultaneous Playback on up to 16 Channels |
| Synchronous Playback | 16 Channels |
| Network Interface | 1 RJ-45 10/100/1000 Mbps |
| USB Interface | 2 x USB 2.0 |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| Power Supply | 12V DC |
| Power Consumption | Less than 20W (without hard disks) |
| Working Temperature | -10C – +55C |
| Working Humidity | 10% – 90% |
| Dimensions (W x D x H) | 315 x 242 x 45 mm (12.4 x 9.5 x 1.8 in) |
| Supported HDD Types | 3.5 inch SATA |
| Video Bit Rate | 32 Kbps ?C 6 Mbps per channel |
| Dual-stream | Supported |
