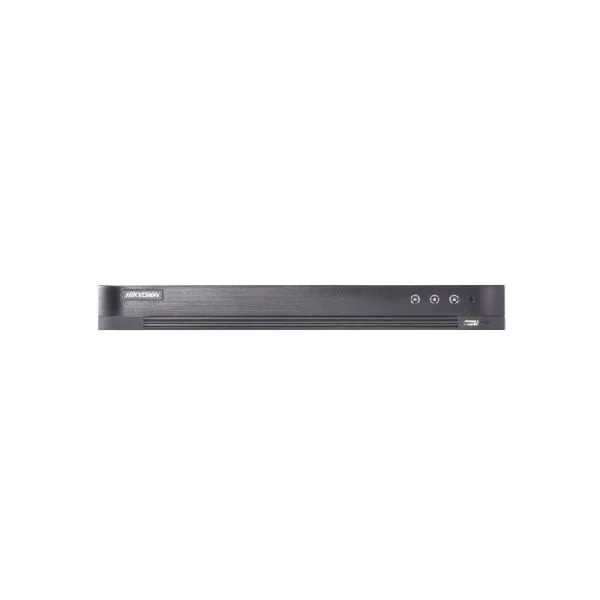

The Hikvision DS-7204HUHI-K2 is a 4-channel 5 MP 1U H.265 DVR designed for high-quality surveillance and video recording. This advanced DVR supports high-definition output and enables efficient storage management due to its H.265 video compression technology. Reliable and feature-rich, the DS-7204HUHI-K2 is ideal for various security requirements.
Quick Spec
| Channels | 4 |
| Max Resolution | 5 MP |
| Compression Technology | H.265 |
| Form Factor | 1U |
| Brand | Hikvision |
Product Features
- High-definition 5 MP video output for excellent image clarity.
- Supports H.265 compression, reducing bandwidth and storage requirements.
- 4-channel video input for comprehensive surveillance coverage.
- 1U form factor for easy rack-mount installation.
- Remote access capabilities for monitoring from any location.
Product Applications
- Retail Security: Ideal for monitoring store premises, reducing theft, and enhancing customer safety.
- Office Surveillance: Ensures the security of business properties and monitors employee activities effectively.
- Home Security: Provides homeowners with a reliable solution for protecting their properties and loved ones.
Supported Options
| Accessory | Model |
| Hard Disk Drive | WD Purple 4TB |
| Power Supply | Hikvision 12V DC Adapter |
| Surge Protector | APC P6U2 |
Compare to Similar Items
| Model | Differences |
| DS-7208HUHI-K2 | 8 channels, supports up to 8 MP resolution |
| DS-7104HQHI-K1 | 4 channels, supports only up to 4 MP resolution |
| DS-7604NI-K1/4P | 4 channels, NVR, supports IP cameras |
Get more information: Contact us via Live Chat or email at sales@router-switch.com for further details about the Hikvision DS-7204HUHI-K2 and its pricing. Check “Hikvision DS-7204HUHI-K2 price” and “DS-7204HUHI-K2 datasheet”, buy “Hikvision DS-7204HUHI-K2 series” with the best price and fast shipping. Free Live Chat is supported.
Hikvision DS-7204HUHI-K2 Specification
DS-7204HUHI-K2 Specifications |
|
| Brand | Hikvision |
| Model | DS-7204HUHI-K2 |
| Video/Audio Input | 4-ch |
| Max Resolution | 5 MP |
| Compression Technology | H.265 |
| Form Factor | 1U |
| Video Output | HDMI/VGA |
| Recording Resolution | Up to 5 MP |
| Analog Video Input | 4-ch BNC interface |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 k) |
| Audio Output | 1-ch RCA (Linear, 1k) |
| Network Interface | 1 RJ-45 10/100 Mbps Ethernet Interface |
| USB Interface | 2 USB 2.0 |
| Hard Drive Interface | 2 SATA interfaces |
| Max Capacity per HDD | Up to 10 TB capacity for each disk |
| Alarm Input | 4-ch |
| Alarm Output | 1-ch |
| Power Supply | 12 VDC |
| Power Consumption | 20 W (without HDD) |
| Operating Temperature | -10 C to +55 C (14 F to 131 F) |
| Dimensions (W D H) | 315 242 45 mm (12.4″ 9.5″ 1.8″) |
| Weight | Excluding Weight |
