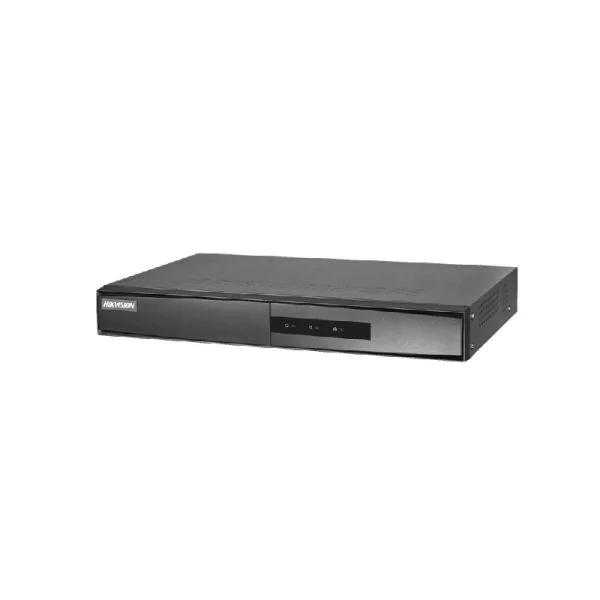

The Hikvision DS-7104NI-Q1/M is a compact 4-channel Mini 1U NVR designed to facilitate high-quality video recording and seamless network management. Ideal for small-scale surveillance setups, this NVR provides robust performance while ensuring easy installation and integration. With advanced features and reliable security, it is perfect for both home and business applications.
Quick Spec
| Brand | Hikvision |
| Model | DS-7104NI-Q1/M |
| Number of Channels | 4 |
| Form Factor | Mini 1U |
| Max Recording resolution | 4MP |
Product Features
- Supports H.265+/H.265/H.264+/H.264 video formats
- VGA and HDMI output simultaneously at up to 1920 1080 resolution
- 4-ch network cameras can be connected, with 40 Mbps incoming bandwidth
- Supports multiple VCA (Video Content Analytics) events
- Plug & Play with 4 independent PoE network interfaces
Product Applications
- Home Security: Enhance the security of residential properties with reliable video surveillance.
- Retail Stores: Monitor customer activity and safeguard assets in small to medium retail establishments.
- Small Offices: Secure office environments by integrating with existing security systems for real-time monitoring.
Supported Options
| Accessory | Model |
| External Hard Drive | Hikvision HSV-1TB |
| POE Switch | Hikvision DS-3E0105P-E/M |
| Network Camera | Hikvision DS-2CD1021-I |
Compare to Similar Items
| Model | Difference |
| Hikvision DS-7108NI-Q1/8P | 8 channels, higher bandwidth capacity |
| Hikvision DS-7604NI-K1/4P | Supports up to 4K resolution, enhanced storage capabilities |
| Hikvision DS-7732NI-I4 | 32 channels, superior processing power |
Get more information
For further information about the Hikvision DS-7104NI-Q1/M and its pricing, please contact us through Live Chat or email us at sales@router-switch.com. Check Hikvision DS-7104NI-Q1/M price and DS-7104NI-Q1/M datasheet, buy Hikvision DS-7104NI-Q1/M with the best price and fast shipping. Free Live Chat is supported.
Hikvision DS-7104NI-Q1/M Specification
DS-7104NI-Q1/M Specifications |
|
| Brand | Hikvision |
| Model | DS-7104NI-Q1/M |
| Product Type | 4-ch Mini 1U NVR |
| Video/Audio Input | 4 channels |
| IP Video Input | 4 channels |
| Max Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Decoding Capability | 1-ch@8 MP/4-ch@1080p |
| Video/Audio Output | HDMI/VGA simultaneous output |
| HDMI Output | 4K (3840 �� 2160) |
| VGA Output | 1920��1080 resolution |
| Audio Output | 1-ch, RCA (Linear, 1 K��) |
| Hard Disk Drive Interface | 1 SATA interface |
| Max Storage Capacity | Up to 6 TB |
| Network Interface | 1 RJ-45 10/100 Mbps Ethernet interface |
| USB Interface | 2 �� USB 2.0 |
| Power Supply | 12 VDC |
| Power Consumption | �� 10 W |
| Working Temperature | -10 ��C to +55 ��C (14 ��F to 131 ��F) |
| Working Humidity | 10% to 90% |
| Dimensions (W �� D �� H) | 260 �� 225 �� 48 mm (10.2�� �� 8.9�� �� 1.9��) |
