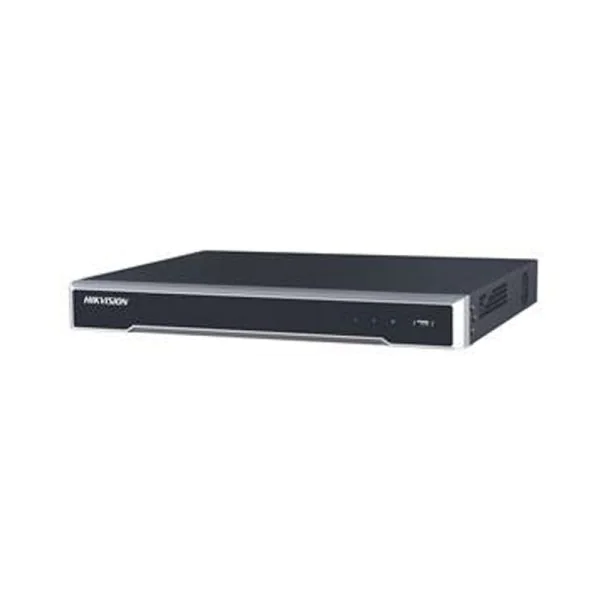

8-ch 1U 4K NVR
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
DS-7608NI-K2 |
|
IP Video Input |
8-ch |
|
Incoming Bandwidth |
80 Mbps |
|
Outgoing Bandwidth |
160 Mbps |
|
Power Supply |
12 VDC |
|
Consumption |
15 W |
|
Dimension (W D H) |
385 315 52 mm (15.2″ 12.4″ 2.0″) |
Product Details
DS-7608NI-K2 provides these features and benefits:
Up to 8 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 4K high-definition live view, storage and playback
Up to 8-ch @ 1080p decoding capacity
Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
2 HDDs for continuous video recording
Get More Information
Do you have any question about the DS-7608NI-K2
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-7608NI-K2 Specification
DS-7608NI-K2 Specification |
|
|
Model |
DS-7608NI-K2 |
|
Video And Audio |
|
|
IP Video Input |
8-ch |
|
HDMI Output |
4K (3840 Ă— 2160)/30Hz, 2K (2560 Ă— 1440)/60Hz, 1920 Ă— 1080/60Hz, 1600 Ă— 1200/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz |
|
Outgoing Bandwidth |
160 Mbps |
|
VGA Output |
1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz |
|
Incoming Bandwidth |
80 Mbps |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
Decoding |
|
|
Decoding Format |
H.265/H.265+/H.264/H.264+/MPEG4 |
|
Decoding Capability |
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) |
|
Synchronous Playback |
8-ch |
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/ UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Network |
|
|
Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Network Protocol |
TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP,SMTP, SNMP, NFS, iSCSI, ISUP, UPnP??span>, HTTP, HTTPS |
|
Auxiliary Interface |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 6 TB capacity for each HDD |
|
Alarm In/Out |
4/1 |
|
USB Interface |
Front panel: 1 Ă— USB 2.0; Rear panel: 1 Ă— USB 3.0 |
|
General |
|
|
Power Supply |
12 VDC |
|
Consumption |
??span>15 W |
|
Working Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
|
Working Humidity |
10 to 90 % |
|
Dimension (W Ă— D Ă— H) |
385 Ă— 315Ă— 52 mm (15.2″ Ă— 12.4″ Ă— 2.0″) |
