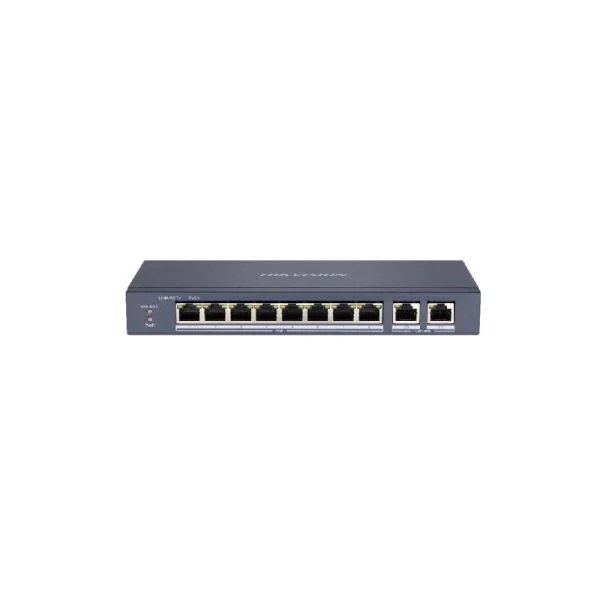

DS-3E0310P-E/M, Hikvision DS-3E Series Switch, 8xFE PoE ports/Unmanaged/PoE support

The Hikvision DS-3E0310P-E/M is a professional-grade switch designed to meet the needs of modern enterprise networks. The DS-3E0310P-E/M provides robust network performance, diverse connection options, and high security standards. With advanced functionalities like Power over Ethernet (PoE), this Hikvision switch ensures seamless integration, making it a reliable choice for businesses looking to enhance their network infrastructure. Whether you refer to it as ds-3e0310p-e/m, ds 3e0310p e/m, or ds-3e0310p-e/m hikvision, this device stands out for its high efficiency and reliability in demanding network environments.

Product Highlights

100m

Transmission Distance

PoE Ports

58W

PoE Power Budget

Product Applications Scenarios

Enterprise Network

It provides scalable, efficient connectivity and reliable data transfer for critical applications.

Cloud Services

It supports cloud infrastructure with flexible PoE+ ports, offering seamless power to devices essential for cloud solutions.

Edge & IoT

Designed for edge computing, this switch ensures secure, efficient IoT data transfer and low latency.

Product Features Comparison


Model	DS-3E0326P-E/M	DS-3E0505P-E/M
Brand	Hikvision	Hikvision
Transmission Distance	200m	100m
PoE Ports	24	4
PoE Power Budget	370W	60W

Optional Add-ons

Model Number	Description
DS-PoE-INJECTOR-100W	100W PoE Injector for Hikvision DS-3E Series, enhancing power capabilities.
DS-MODULE-SFP-LX	Gigabit SFP Module, ideal for long-range data transmission
DS-RACK-MOUNT-KIT	Rack Mount Kit for secure and organized installation of Hikvision switches.

Hikvision DS-3E0310P-E/M Specification

Model

DS-3E0310P-E/M

Brand

Hikvision

Network Parameters

8 × 10/100Mbps PoE ports, and 2 × Gigabit RJ45 ports

Port Type

RJ45 port, full duplex, MDI/MDI-X adaptive

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab

Forwarding Mode

Store-and-forward switching

Working Mode

Standard mode (default), Extend mode

Ports for Long-Distance Transmission

Ports 1 to 8

MAC Address Table

16 K

Switching Capacity

5.6 Gbps

Packet Forwarding Rate

4.1664 Mpps

Internal Cache

4 Mbits

PoE Standard

Ports 1 to 8: IEEE 802.3af, IEEE 802.3at

PoE Power Pin

Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously

PoE Port

Ports 1 to 8

Max. Port Power

Ports 1 to 8: 30 W

PoE Power Pudget

60 W

Max. Power Consumption

65 W

Shell

Metal material, fan-free design

Dimension (L × H × D)

217.6 mm × 103.35 mm × 27.8 mm (8.57??× 4.07??× 1.09??

Operating Temperature

-10°C to 40°C (14°F to 104°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

5% to 95% (no condensation)

Storage Humidity

5% to 95% (no condensation)

Power Supply

48 VDC, 1.35 A

Power Consumption in Idle

< 5 W

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Get More Information

Discover unbeatable prices and fast shipping for the DS-3E0310P-E/M. Access the detailed DS-3E0310P-E/M datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
