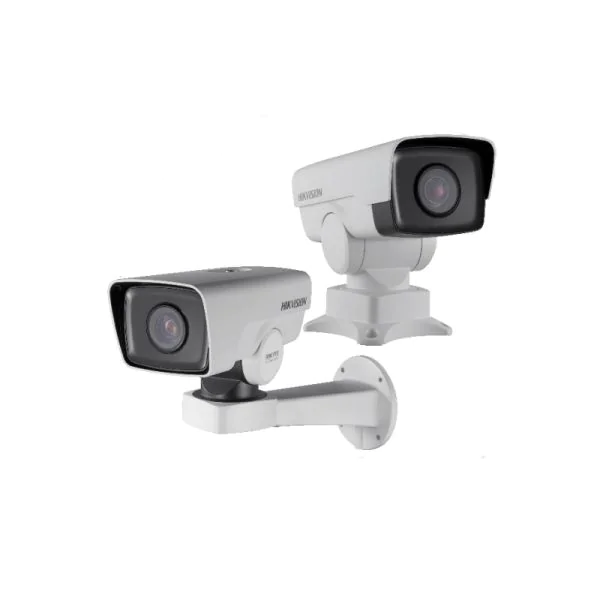

The Hikvision DS-2DY3220IW-DE is a high-performance, 3-inch, 2 MP, 20X Network Positioning System that leverages DarkFighter IR technology. Engineered for exceptional low-light performance and detailed surveillance, this advanced positioning system ensures reliability and precision in a wide array of security applications.
Quick Spec
| Brand | Hikvision |
| Model | DS-2DY3220IW-DE |
| Image Sensor | 2 MP CMOS |
| Optical Zoom | 20X |
| IR Range | Up to 100 meters |
Product Features
- High-quality 2 MP CMOS sensor for clear and detailed images.
- 20X optical zoom, enhancing surveillance over large areas.
- Powered by DarkFighter technology for superior low-light performance.
- Integrated IR illumination with an effective range of up to 100 meters.
- Network positioning system for precision and flexibility in monitoring.
Product Applications
- Perimeter security for critical infrastructure, providing long-distance monitoring.
- Urban surveillance in low-light environments, ensuring safety and security.
- Monitoring large public events, where detailed and expansive video coverage is essential.
Supported Options
| Wall Mount | DS-1602ZJ |
| Ceiling Mount | DS-1661ZJ |
| Power Adapter | PSU-120250-D2 |
Compare to Similar Items
| Model | Key Differences |
| DS-2DY3320IW-DE | Features higher zoom capability and additional smart functions |
| DS-2DF8225IX-AEL | Offers 4 MP resolution and advanced tracking capabilities |
| DS-2DE4425IW-DE | Smaller size with reduced optical zoom at 25X but with enhanced focus performance |
Get more information
For further information about the Hikvision DS-2DY3220IW-DE and its pricing, please reach out through Live Chat or email at sales@router-switch.com. Check Hikvision DS-2DY3220IW-DE price and DS-2DY3220IW-DE datasheet, buy Hikvision DS-2DY3220IW-DE with the best price and fast shipping. Free Live Chat support is available.
Hikvision DS-2DY3220IW-DE Specification
DS-2DY3220IW-DE Specifications |
|
| Brand | Hikvision |
| Model | DS-2DY3220IW-DE |
| Camera Type | IR Network Positioning System |
| Image Sensor | 2 MP CMOS |
| Lens | 4.7 mm to 94 mm, 20x Optical Zoom |
| Aperture | F1.5 |
| Minimum Illumination | Color: 0.002 Lux @(F1.5, AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON), 0 Lux with IR |
| Zoom | 20x Optical, 16x Digital |
| IR Distance | Up to 150 meters |
| Day/Night | IR Cut Filter with Auto Switch |
| Video Compression | H.265/H.264/MJPEG |
| Max Resolution | 1920×1080 |
| Frame Rate | 30 fps |
| Pan Range | 360continuous |
| Tilt Range | -15to 90(auto flip) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, DNS, NTP, SMTP, SNMP, SSL, 802.1X |
| Operating Temperature | -30C to 65C (-22F to 149F) |
| Power Supply | 24VAC or POE+ |
| Power Consumption | Max. 30W |
| Ingress Protection | IP66 |
| Dimensions | ?132 x 294.5 mm (?5.211.6) |
