The DS-2DE4A425IW-DE 4MP Outdoor PTZ Network Camera from Hikvision uses a 1/2.5″ progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. IR LEDs provide up to 165′ of night vision.
Quick Specs

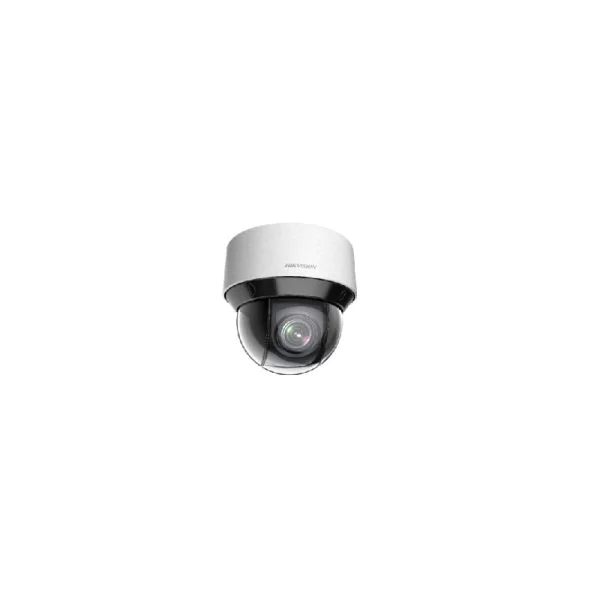

Figure 1 shows the appearance of DS-2DE4A425IW-DE.
Table 1 shows the Quick Specs.
|
Product Code |
DS-2DE4A425IW-DE |
|
Power |
12 VDC, 3.33 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4Max.:18 W, including max. 5W for IR |
|
Dimensions |
Φ 169 mm Ă— 161 mm (Φ 6.65″ Ă— 6.34″) |
|
Working Temperature |
-30°C to 65°C (-22°F to 149°F) |
Product Details
Figure 2 shows the details of DS-2DE4A425IW-DE.
Product Features
DS-2DE4A425IW-DE provides these features:
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 50m IR range ensures safety at night
- Water and dust resistant (IP66)
Compare to Similar Items
Table 2 shows the comparison of DS-2DE4A425IW-DE.
|
Module |
DS-2DE4A425IW-DE |
|
|
Power |
12 VDC, 3.33 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4Max.:18 W, including max. 5W for IR |
100 to 240 VAC, ??180 W |
|
Dimensions |
Φ 169 mm Ă— 161 mm (Φ 6.65″ Ă— 6.34″) |
385 Ă— 315Ă— 52 mm (15.2″ Ă— 12.4″ Ă— 2.0″) |
|
Working Temperature |
-30°C to 65°C (-22°F to 149°F) |
-10 °C to 55 °C (14 °F to 131 °F) |
Get More Information
Do you have any question about the DS-2DE4A425IW-DE?
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2DE4A425IW-DE Specification
DS-2DE4A425IW-DE Specification |
|
|---|---|
| Lens | |
| FOV | Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele) |
| Zoom Speed | Approx. 3.2 s (optical lens, wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F3.5 |
| Focal Length | 4.8 mm to 120 mm, 25Ă— optical |
| Image | |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Sub-Stream | 50Hz: 25fps (704 Ă— 576, 640 Ă— 480, 352 Ă— 288), 60Hz: 30fps (704 Ă— 480, 640 Ă— 480, 352 Ă— 240) |
| Max. Resolution | 2560 Ă— 1440 |
| Main Stream | 50Hz: 25fps (2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720), 50fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720), 60Hz: 30fps (2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720), 60fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720) |
| Third Stream | 50Hz: 25fps (2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720, 704 Ă— 576, 640 Ă— 480, 352 Ă— 288), 60Hz: 30fps (2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720, 704 Ă— 480, 640 Ă— 480, 352 Ă— 240) |
| Network | |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Alarm Linkage | Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Interface | |
| Alarm Output | 2-ch alarm input |
| Alarm Input | 2-ch alarm input |
| Audio Input | 1-ch audio input |
| Audio Output | 1-ch audio output |
| Network Interface | 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4) |
| Compression Standard | |
| H.264+ | Support |
| H.265+ | Support |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG |
| H.265 Type | Main Profile |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2) |
| SVC | Support |
| Camera Module | |
| AGC | Auto/Manual |
| Image Sensor | 1/2.5″ progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16Ă— |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Supplement Light | |
| IR Distance | 50 m |
| Smart IR | Support |
| PTZ | |
| Movement Range (Pan) | 360° endless |
| Pan Speed | Configurable, from 0.1°/s to 300°/s, Preset Speed: 350°/s |
| Movement Range (Tilt) | From -5° to 90° (auto-flip) |
| Tilt Speed | Configurable, from 0.1°/s to 160°/s, Preset Speed: 200°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display | Support |
| Preset Freezing | Support |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Smart Features | |
| Basic Event Detection | Motion Detection, Video Tampering Detection, Alarm Input, Alarm Output, Exception |
| Smart Detection | Audio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
| Smart Tracking | Manual Tracking, Auto Tracking, Event Tracking |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| ROI | Main stream, sub-stream, and third stream respectively support four fixed areas. |
| General | |
| Material | ADC12, PC, PC+ABS, SUS304, POM |
| Dimensions | Φ 169 mm Ă— 161 mm (Φ 6.65″ Ă— 6.34″) |
| Weight | Approx. 2.45 kg (5.40 lb) |
| Protection Level | IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Power | 12 VDC, 3.33 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4 Max.:18 W, including max. 5W for IR |
| Working Temperature | -30°C to 65°C (-22°F to 149°F) |
| Working Humidity | ??90% |
| Installation | Variable installation methods optional, including ceiling mounting (default), in-ceiling mounting, pendant mounting and wall mounting |
