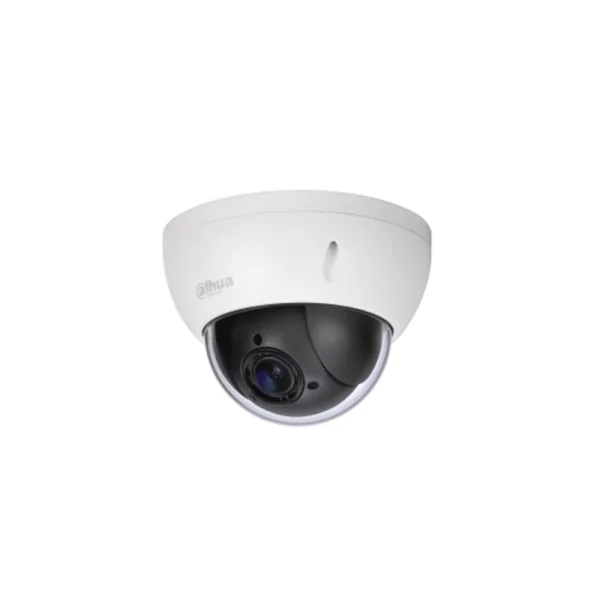

The Dahua SD22404T-GN is a powerful 4MP 4x PTZ Network Camera designed for advanced surveillance needs. Featuring impressive zoom capabilities and network connectivity, this camera delivers high-quality, reliable video monitoring for various applications. With robust performance and versatile functionality, it stands out in the Dahua range of surveillance solutions.
Quick Spec
| Resolution | 4MP (2688 x 1520) |
| Optical Zoom | 4x |
| Field of View | 112 – 32 |
| IR Distance | 50 meters |
| Network Interface | RJ-45 (10/100Base-T) |
Product Features
- 4MP video resolution for clear and detailed images.
- 4x optical zoom for closer inspection of distant objects.
- Pan-Tilt-Zoom functionality for comprehensive area coverage.
- Built-in IR illuminators with a range of up to 50 meters.
- Weather-resistant design suitable for outdoor deployment.
Product Applications
- Public surveillance in city centers and streets.
- Monitoring entrances and exits in corporate facilities.
- Security at retail stores and shopping malls.
Supported Options
| Mounting Bracket | PFB203W |
| Power Adapter | PFM320D-015 |
| Network Cable | CAT6A |
Compare to Similar Items
| Model | Main Difference |
| Dahua SD22404T-GN-S2 | Enhanced low-light performance |
| Dahua SD42412T-HN | Higher zoom capability (12x) |
| Dahua SD6AL245U-HNI | Advanced AI features |
Get more information
Get more information about the Dahua SD22404T-GN by contacting us through Live Chat or sales@router-switch.com. Check Dahua SD22404T-GN price and SD22404T-GN datasheet, buy Dahua SD22404T-GN with the best price and fast shipping. Free Live Chat is supported.
Dahua SD22404T-GN Specification
SD22404T-GN Specifications |
|
| Brand | Dahua |
| Model | SD22404T-GN |
| Camera Type | PTZ Network Camera |
| Image Sensor | 1/34 Megapixel CMOS |
| Effective Pixels | 2688 x 1520 |
| Resolution | 4MP |
| Optical Zoom | 4x |
| Digital Zoom | 16x |
| Minimum Illumination | Color: 0.05 Lux @ F1.6; B/W: 0.005 Lux @ F1.6 |
| Lens Type | Motorized/Auto Iris |
| Focal Length | 2.7 mm – 11 mm |
| Field of View | Horizontal: 112- 30 |
| Day/Night | Auto(ICR) / Color / B/W |
| Max. IR Distance | 50m |
| Video Compression | H.265 / H.264 / MJPEG |
| Frame Rate | Main stream: 25/30fps @ 4MP; Sub Stream: 25/30fps @ D1 |
| Network Interface | 1 RJ45 10M/100M Ethernet port |
| Power Supply | DC12V/PoE (802.3af) |
| Power Consumption | Max. 10W |
| Operating Conditions | -30C – 60C, Less than 95% RH |
| Ingress Protection | IP66 |
| Dimensions | 160 mm 295 mm |
| Operating Humidity | 0-95% (non-condensing) |
