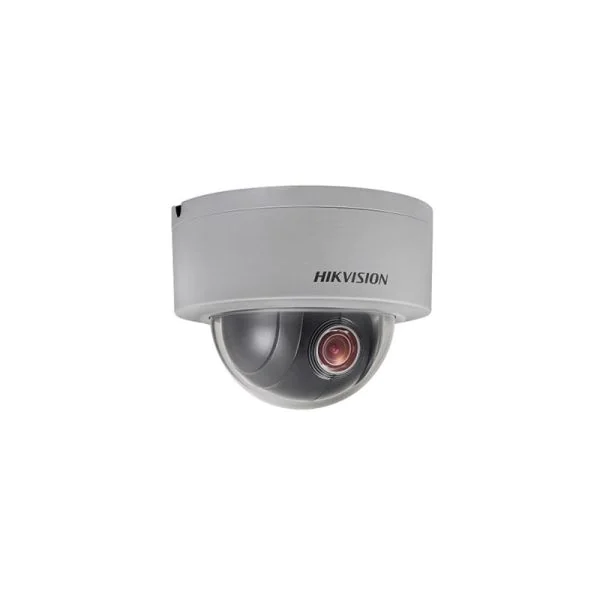

This Micro-designed 3 PTZ Mini Dome Camera shows the easiest installation, adjustment and maintenance that you have ever seen. It is a fantastic and practical camera for outdoor. In addition, DS-2DE3204W-DE support 4X zoom technology, PoE&12VDC power supply. Embedded with 1/2.8 progressive scan CMOS chip makes DWDR and 2MP real-time resolution possible. With the pan/tilt and 4X zoom Day/Night lens, the camera offers more details in the outdoor environments. Hikvision DS-2DE3204W-DE Mini PTZ Dome Cameras also features a wide range of functions, including intrusion detection, line crossing detection, motion detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events / objects being recorded for further forensic needs.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-2DE3204W-DE |
|
Image Sensor |
1/3″ Progressive Scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Minimum Illumination |
F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux |
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
AGC |
Auto/Manual |
|
BLC |
ON/OFF |
|
HLC |
Support |
|
WDR |
DWDR |
|
Shutter Time |
1/1~1/10,000s |
|
Day& Night |
ICR |
|
Digital Zoom |
16X |
|
Privacy Mask |
8 programmable privacy masks |
|
Auto Focus |
Auto / Semi-automatic / Manual |
Product Details
Hikvision DS-2DE3204W-DE provides these key features:
1/3 Progressive Scan CMOS
1920 x 1080P
4X Optical Zoom
DWDR
Support IP67/IK10
Support PoE(802.3af)
Support RS485
Support plug & play
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
DS-2DE3204W-DE |
|
|
Image Sensor |
1/3″ Progressive Scan CMOS |
1/3″ Progressive Scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
1920(H)x1080(V) |
|
Minimum Illumination |
Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
F1.6, AGC On: Color : 0.05 lux, B/W : 0.01 lux |
|
WDR |
120dB |
DWDR |
|
Auto Focus |
Auto / Semi-automatic / Manual |
Auto / Semi-automatic / Manual |
Get More Information
Do you have any question about the DS-2DE3204W-DE
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2DE3204W-DE Specification
DS-2DE3204W-DE Specification |
|
|
Camera |
|
|
Image Sensor |
1/3″ Progressive Scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Minimum Illumination |
F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux |
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
AGC |
Auto/Manual |
|
BLC |
ON/OFF |
|
HLC |
Support |
|
WDR |
DWDR |
|
Shutter Time |
1/1~1/10,000s |
|
Day& Night |
ICR |
|
Digital Zoom |
16X |
|
Privacy Mask |
8 programmable privacy masks |
|
Auto Focus |
Auto / Semi-automatic / Manual |
|
Lens |
|
|
Focal Length |
2.8~12mm, 4x |
|
Zoom Speed |
Approx.1s(Wide~Tele) |
|
Field of View |
105~33.5 degree (Wide~Tele) |
|
Aperture Range |
F1.6 ~F2.7 |
|
Pan & Tilt |
|
|
Pan Range |
Pan: 0~350° |
|
Pan Speed |
Pan Manual Speed: 0.1°~60°/s |
|
Tilt Range |
Tilt: 0°~90° |
|
Tilt Speed |
Tilt Manual Speed: 0.1°~50°/s |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset |
300 |
|
Power-off Memory |
Support |
|
PTZ Position Display |
ON/OFF |
|
Alarm |
|
|
Alarm Input |
1 |
|
Alarm Linkage |
Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage |
|
Input & Output |
|
|
Audio Input |
1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
|
Audio Output |
1 Audio output interface Line level, impedance: 600Ω |
|
Network |
|
|
Ethernet |
10Base -T, /100Base-TX, RJ45 Connector |
|
Max.Image Resolution |
1920Ă—1080 |
|
Main Stream |
50Hz:25fps (1920Ă—1080,1280Ă—960,1280Ă—720), 50fps (1280Ă—960,1280Ă—720) ; 60Hz:30fps(1920Ă—1080,1280Ă—960,1280Ă—720), 60fps (1280Ă—960,1280Ă—720) |
|
Sub Stream |
50Hz:25fps(704Ă—576), 25fps(640Ă—576), 25fps(320Ă—288) 60Hz:30fps(704Ă—480), 30fps(640Ă—480), 30fps(320Ă—240) |
|
Third Stream |
50Hz: 25fps (1920 Ă— 1080, 1280 Ă— 720, 704 Ă— 576, 640 Ă— 480, 320 Ă— 288) 60Hz: 30fps (1920 Ă— 1080, 1280 Ă— 720, 704 Ă— 480, 640 Ă— 480, 320 Ă— 240) |
|
Video Compression |
H.264 / MJPEG |
|
ROI encoding |
Support 4 areas with adjustable levels |
|
Audio Compression |
G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
|
Simultaneous Live View |
Up to 20 channels |
|
Storage |
Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
|
Security Measures |
User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
|
Client GUI |
|
|
Date & Time Display |
Time: Week: Date, 6 formats on the Client |
|
Client |
Support iVMS-4200 |
|
Web Browser |
IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 + |
|
General |
|
|
Language |
English |
|
Power Supply |
12V DC & PoE((802.3af, class3) |
|
Power Consumption |
Max. 8W |
|
Working Temperature/Humidity |
-30°C ~ 65°C (-22°F ~ 149°F) |
|
Protection Level |
IP66, IK10 TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Mounting |
Various mounting modes optional |
|
Dimensions |
Φ140.7×107.2mm |
|
Mount Option |
Wall mount: DS-1273ZJ -PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ -PT6 |
