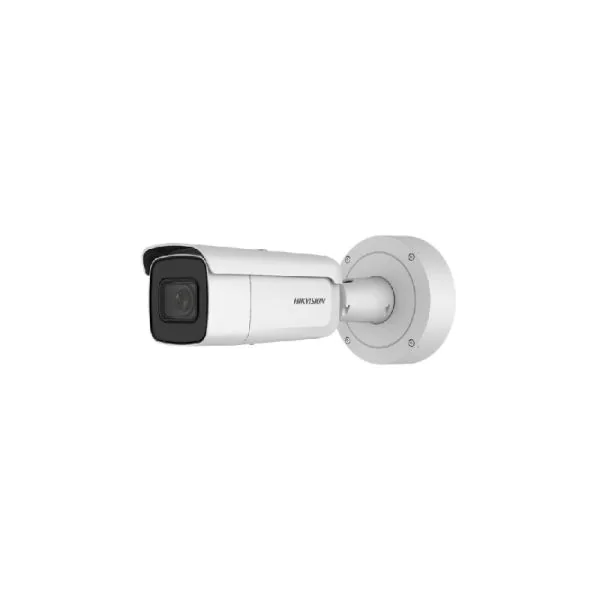

The Hikvision DS-2CD3685G1-IZS is an advanced 8MP Moto Varifocal Bullet Network Camera, powered by Darkfighter technology. It delivers high-quality images even in low-light conditions, making it ideal for various security applications. This camera offers an improved low-light performance, ensuring clear monitoring around the clock.
Quick Spec
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Resolution | 8MP (3840 x 2160) |
| Lens Type | 2.8-12mm motorized varifocal lens |
| Minimum Illumination | Color: 0.009 Lux @(F1.2, AGC ON) |
| IR Range | Up to 50 meters |
Product Features
- 8 Megapixel High Resolution
- Powered by Darkfighter technology for excellent low-light performance
- 3D Digital Noise Reduction (DNR)
- 120dB True WDR (Wide Dynamic Range)
- IP67 and IK10 rated for outdoor use
Product Applications
- Commercial building security
- Parking lot monitoring
- Public area surveillance
Supported Options
| Wall Mount Bracket | DS-1273ZJ-135 |
| Pole Mount Bracket | DS-1275ZJ |
| Junction Box | DS-1280ZJ-DM21 |
Compare to Similar Items
| Model | Hikvision DS-2CD3685G1-IZS | Hikvision DS-2CD2645FWD-IZS | Hikvision DS-2CD2685FWD-IZS |
| Resolution | 8MP | 4MP | 8MP |
| IR Range | 50 meters | 30 meters | 50 meters |
| Low-Light Technology | Darkfighter | Darkfighter | Darkfighter |
| WDR | 120dB | 120dB | 120dB |
| External Alarm | Supported | Not Supported | Supported |
Get more information
For further details about the Hikvision DS-2CD3685G1-IZS, including pricing and datasheet, please contact us via Live Chat or email at sales@router-switch.com. Check Hikvision DS-2CD3685G1-IZS price and DS-2CD3685G1-IZS datasheet, buy Hikvision DS-2CD3685G1-IZS with the best price and fast shipping. Free Live Chat support is available.
Hikvision DS-2CD3685G1-IZS Specification
DS-2CD3685G1-IZS Specifications |
|
| Image Sensor | 1/2″ Progressive Scan CMOS |
| Max Resolution | 8 MP (3840 �� 2160) |
| Lens | 2.8 to 12mm Motorized Varifocal Lens |
| Min. Illumination | 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| IR Range | Up to 50m |
| Day & Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB WDR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance |
| Noise Reduction | 3D DNR |
| Video Compression | H.265, H.265+, H.264, H.264+ |
| Frame Rate | Main Stream: Up to 20 fps @ 8 MP (3840 x 2160) Sub Stream: Up to 30 fps @ (704 �� 480) |
| Audio | 1 Audio input, 1 Audio output |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Alarm Inputs/Outputs | 2 Alarm inputs, 2 Alarm outputs |
| Network Interface | 1 RJ45 10M/100M Ethernet Interface |
| On-board Storage | Built-in microSD/SDHC/SDXC card slot, up to 128 GB |
| Power Supply | 12 VDC �� 25%, PoE (802.3at, class 4) |
| Power Consumption | Max 12 W |
| Operating Conditions | -30 ��C to 60 ��C (-22 ��F to 140 ��F), humidity 95% or less (non-condensing) |
| Dimensions | 91 �� 105 �� 305 mm (3.58″ �� 4.13″ �� 12.01″) |
| Ingress Protection | IP67 |
