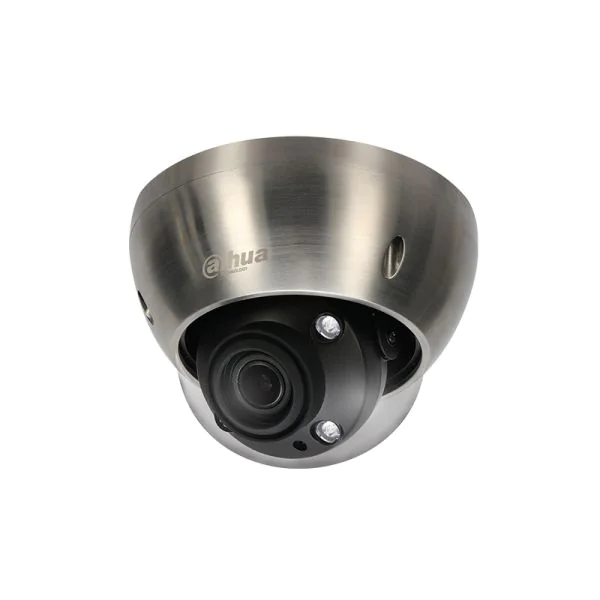

DH-IPC-HDBW8232EN-Z-SL, Dahua 2 MP Starlight IR Network Dome Camera,1/1.9-in. 2 MP Progressive Scan CMOS; 316L Corrosion-resistant Stainless Steel Housing; Starlight Technology for Low Light Sensitivity; Triple-stream Encoding.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
DH-IPC-HDBW8232EN-Z-SL |
|
Image Sensor |
1/1.9-in. 2 MP Progressive Scan CMOS |
|
Effective Pixels |
1920(H) x 1080(V) |
|
RAM/ROM |
1024 MB / 128 MB |
|
Scanning System |
Progressive |
|
Minimum Illumination |
Color: 0.002 lux at F1.53 0 lux at F1.53 with IR on |
|
Focal Length |
4.1 mm to 16.4 mm |
|
Max.Aperture |
F1.53 |
|
Angle of View |
Horizontal: 32�� to 92�� Vertical: 18�� to 53�� |
|
Optical Zoom |
4x |
|
Casing |
316L Stainless Steel |
|
Dimensions |
162.50 mm x 118.10 mm (6.40 in. x 4.65 in.) |
Product Details
TheDH-IPC-HDBW8232EN-Z-SL provides these features:
*1/1.9-in. 2 MP Progressive Scan CMOS
* 316L Corrosion-resistant Stainless Steel Housing
* Starlight Technology for Low Light Sensitivity
* Triple-stream Encoding
* Smart H.265+ and H.264 Dual Compression
* 1080p at 60 fps
* 4.1 mm to 16.4 mm Motorized Lens
* True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
* Maximum IR Distance 50 m (164ft)
* IP67 Ingress Protection on and IK10 Impact Resistance
* Five-year Warranty
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
DH-IPC-HDBW8232EN-Z-SL |
|
|
Image Sensor |
1/1.8″2Megapixel progressive scan CMOS |
1/1.9-in. 2 MP Progressive Scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
1920(H) x 1080(V) |
|
RAM/ROM |
1024MB/128MB |
1024 MB / 128 MB |
|
Minimum Illumination |
0.002Lux/F1.53 (Color,1/3s,30IRE) 0.01Lux/F1.53 (Color,1/30s,30IRE) 0Lux/F1.53(IR on) |
Color: 0.002 lux at F1.53 0 lux at F1.53 with IR on |
|
S/N Ratio |
More than 50dB |
More than 50 dB |
|
IR Distance |
Distance up to 50m(164ft) |
50.0 m (164.04 ft) |
|
IR On/Off Control |
Auto/ Manual |
Auto,Manual |
|
IR LEDs |
3 |
Three (3) |
|
Optical Zoom |
4x |
4x |
|
Frame Rate
|
Main Stream: 1080P(1~50/60fps) Sub Stream: D1 (1 ~ 50/60fps) Third Stream: 1080P(1~50/60fps) |
Main Stream: 1080p at 60 fps Sub Stream 1: D1 at 60 fps Sub Stream 2: 1080p at 60 fps |
|
Close Focus Distance |
1m(3.28ft) |
1000 mm (39.37 in.) |
|
Power Supply |
DC12V,AC24V, PoE+ (802.3at)(Class 4) |
12 VDC, 24 VAC, or PoE+ (802.3at Class 4) |
|
Power Consumption |
GetMoreInformation
Do you have anyquestionabouttheDH-IPC-HDBW8232EN-Z-SL
Contact us now via Live Chat or sales@router-switch.com.
Dahua DH-HDBW8232EN-Z-SL Specification
DH-IPC-HDBW8232EN-Z-SL Specification |
|
|
Camera |
|
|
Image Sensor |
1/1.9-in. 2 MP Progressive Scan CMOS |
|
Effective Pixels |
1920(H) x 1080(V) |
|
RAM/ROM |
1024 MB / 128 MB |
|
Scanning System |
Progressive |
|
Minimum Illumination |
Color: 0.002 lux at F1.53 0 lux at F1.53 with IR on |
|
S/N Ratio |
More than 50 dB |
|
IR Distance |
50.0 m (164.04 ft) |
|
IR On/Off Control |
Auto, Manual |
|
IR LEDs |
Three (3) |
|
Lens |
|
|
Lens Type |
Motorized, Auto Iris (HALL) |
|
Mount Type |
Board-in |
|
Focal Length |
4.1 mm to 16.4 mm |
|
Max. Aperture |
F1.53 |
|
Angle of View |
Horizontal: 32° to 92° Vertical: 18° to 53° |
|
Optical Zoom |
4x |
|
Focus Control |
Motorized |
|
Close Focus Distance |
1000 mm (39.37 in.) |
|
Pan/Tilt/Rotation |
|
|
Range
|
Pan: 0˚ to 355˚ Tilt: 0˚ to 65˚ Rotation: 0˚ to 355˚ |
|
Video |
|
|
Compression |
Smart H.265+, H.265, Smart H.264+, H.264 |
|
Streaming Capability |
Three (3) Streams |
|
Resolution
|
1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
|
Frame Rate
|
Main Stream: 1080p at 60 fps |
|
Sub Stream 1: D1 at 60 fps |
|
|
Sub Stream 2: 1080p at 60 fps |
|
|
Bit Rate Control |
CBR, VBR |
|
Bit Rate |
H.264: 24 to 10240 Kbps H.265: 14 to 6144 Kbps |
|
Day/Night |
Auto (ICR), Color, B/W |
|
BLC Mode |
BLC, HLC, True WDR (120 dB), SSA |
|
White Balance |
Auto, Natural, Street Lamp, Outdoor, Manual |
|
Gain Control |
Auto, Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detection |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Advanced Features |
Electronic Image Stabilization (EIS), Smart IR, Defog |
|
Digital Zoom |
16x |
|
Flip |
0°, 90°, 180°, 270° |
|
Mirror |
Off, On |
|
Privacy Masking |
Off, On (4 Area, Rectangle) |
|
Audio |
|
|
Compression |
G.711a, G.711Mu, AAC, G.726 |
|
Network |
|
|
Ethernet |
RJ-45 (100/1000 Base-T) |
|
Protocol
|
HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP,NTP, Bonjour, 802.1x, MulƟ cast, ICMP, IGMP, SNMP |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast, Multicast |
|
Max. User Access |
Access 10 Users / 20 Users |
|
Edge Storage |
Network Attached Storage (NAS) Local PC for Instant Recording MicroSD Card Slot, maximum 128 GB |
|
Web Viewer |
IE, Firefox, Safari |
|
Management Software |
Smart PSS, DSS |
|
Smart Phone |
IOS, Android |
|
Certifications |
|
|
Safety |
EN 60950:2000 UL 60950-1 |
|
Electromagnetic Compatibility (EMC) |
FCC Part 15 Subpart B |
|
Interface |
|
|
Audio |
In: One (1) Channel, RCA Out: One (1) Channel, RCA |
|
Alarm |
In: One (1) Channel Out: One (1) Channel |
|
Electrical |
|
|
Power Supply |
12 VDC, 24 VAC, or PoE+ (802.3at Class 4) |
|
Power Consumption |
< 18 W |
|
Environmental |
|
|
Operating Conditions |
??span>40° C to +60° C (??/span>40° F to +140° F),Less than 95% RH |
|
Strorage Conditions |
??span>40° C to +60° C (??/span>40° F to +140° F),Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Impact Protection |
IK10 |
|
Enclosure Rating |
Conforms to NEMA 4X |
|
Construction |
|
|
Casing |
316L Stainless Steel |
|
Dimensions |
ø162.50 mm x 118.10 mm (ø6.40 in. x 4.65 in.) |
|
Intelligence |
|
|
IVS triggers an alarm and takes a defined action for the following events: |
|
|
Standard Features
|
• Tampering with the camera. ??Camera loses or changes focus drastically. ??Error writing to an onboard Micro SD card. ??Error sending or receiving data over the network. ??Unauthorized access to the camera. |
|
Premium Features |
|
|
Motion |
An object moves through any part of the scene. |
|
Tripwire |
A target crosses a user-defined line. |
|
Intrusion |
A target enters or exits a defined perimeter. |
|
Scene Change |
A person or object moves the camera to change the scene or covers the camera to obscure the scene. |
|
Abandoned/Missing Object |
A target leaves an object in designated area, or a target removes an object from the same designated area. |
|
Advanced Features |
|
|
Facial Detection |
Detects and captures a snapshot of a human face in a defined area within a scene. |
|
People Counting |
Measure the number of customers, visitors or passengers in a surveillance scene. |
|
Heat Map |
Generates a visual representation of data. |
