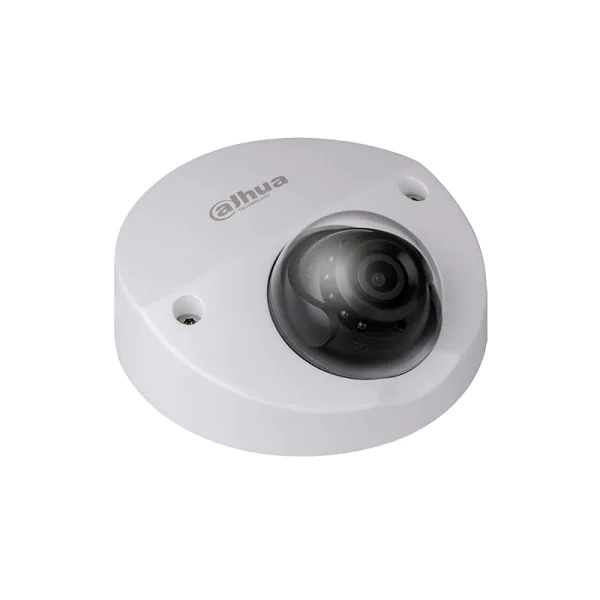

The Dahua DH-IPC-HDBW4231FN 6mm is a highly reliable 2MP Fixed Wedge Network Camera designed for various surveillance applications. Equipped with a 6mm lens, this camera is engineered to deliver exceptional video quality and performance under diverse conditions, ensuring clear, high-definition images and comprehensive security coverage.
Quick Spec
| Brand | Dahua |
| Model | DH-IPC-HDBW4231FN 6mm |
| Resolution | 2 Megapixels |
| Lens | 6 mm |
| Type | Fixed Wedge Network Camera |
Product Features
- 2MP high-definition video output
- 6mm fixed lens for detailed coverage
- Supports H.265 and H.264 video codecs
- Enhanced night vision capabilities
- Weather-resistant design for outdoor use
Product Applications
- Commercial building surveillance
- Parking lot monitoring
- Entrance and exit security
Supported Options
| Accessory | Model |
| Mounting Bracket | PFA136 |
| Junction Box | PFA139 |
| Pole Mount | PFA150 |
Compare to Similar Items
| Model | Difference |
| DH-IPC-HDBW2431RN-ZS | 3MP resolution, motorized zoom lens |
| DH-IPC-HDBW4231F-AS | 6MP resolution, audio input |
| DH-IPC-HDW2431RP-AS | 4MP resolution, more compact design |
Get more information
For further details about the Dahua DH-IPC-HDBW4231FN 6mm, contact us through Live Chat or email sales@router-switch.com. Check Dahua DH-IPC-HDBW4231FN 6mm price and DH-IPC-HDBW4231FN 6mm datasheet, buy Dahua DH-IPC-HDBW series with the best price and fast shipping. Free Live Chat support is available.
Dahua DH-HDBW4231FN 6mm Specification
DH-IPC-HDBW4231FN 6mm Specifications |
|
| Image Sensor | 1/2.8�� 2 Megapixel progressive scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| RAM/ROM | 256 MB/16 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
| Minimum Illumination | 0.009 Lux@F2.0 |
| S/N Ratio | More than 50dB |
| IR Distance | Up to 20 meters |
| IR On/Off Control | Auto/Manual |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 6 mm |
| Max. Aperture | F2.0 |
| Angle of View | Horizontal: 51��, Vertical: 28�� |
| Network Interface | 1 RJ-45 (10/100Base-T) |
| Audio Interface | 1 Input/1 Output |
| Power Supply | 12V DC/PoE (IEEE 802.3af) |
| Power Consumption | < 7.7W |
| Operating Temperature | -30��C ~ +60��C (-22��F ~ +140��F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
