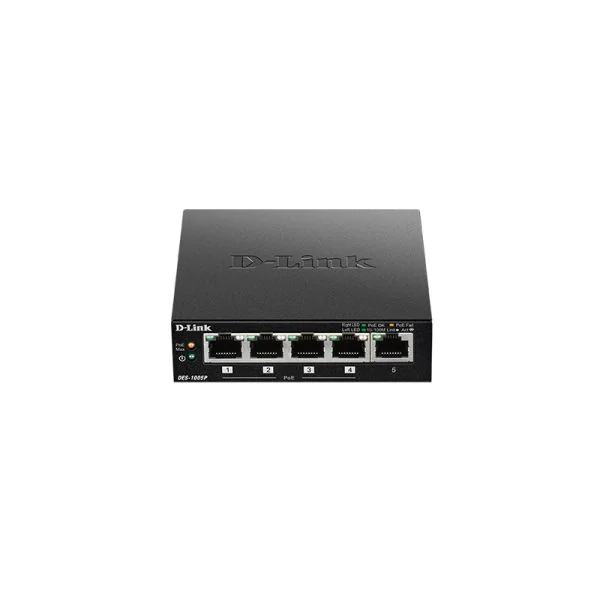

The D-Link DES-1005P-CN is an efficient, non-managed PoE switch designed to provide seamless connectivity for small offices and home networks. This desktop switch features 4 100M PoE electrical ports and 1 100M electrical port, offering robust performance with a backplane bandwidth of 1G and a packet forwarding rate of 0.744M. With a compact design of 100 x 100 x 27mm, it’s built to fit easily on any desk.
Quick Spec
| Ports | 4 100M PoE electrical ports + 1 100M electrical port |
| Backplane Bandwidth | 1G |
| Packet Forwarding Rate | 0.744M |
| PoE Power | Single port maximum 30W / whole machine maximum power 58W |
| Power Supply | AC 100-240V external power supply |
Product Features
- Non-managed PoE switch
- 4 PoE-enabled ports with a total power budget of 58W
- Compact size with iron case for desktop placement
- Supports 100M connections for fast and reliable network performance
- Energy-efficient design with external power supply
Product Applications
- Small Office/Home Office (SOHO) networks for connecting multiple devices
- IP Camera deployment for security and surveillance systems
- Wireless Access Point installations for extending network coverage
Supported Options
| External Power Adapter | Model: D-Link Adapter 12V |
| Network Cable | Model: D-Link CAT6 |
| Wall Mount Kit | Model: D-Link WMK-1 |
Compare to Similar Items
| Model | Differences |
| D-Link DES-1008P | 8 ports, 2G backplane bandwidth, higher power budget |
| D-Link DES-1005C | Non-PoE, lower power consumption |
| TP-Link TL-SF1005P | Similar specifications, different brand |
Get more information
For further information and pricing details, please contact us through Live Chat or email us at sales@router-switch.com.
D-Link DES-1005P-CN Specification
DES-1005P-CN Specifications |
|
| Brand | D-Link |
| Model | DES-1005P-CN |
| Ports | 4 100M PoE electrical ports + 1 100M electrical port |
| Backplane Bandwidth | 1G |
| Packet Forwarding Rate | 0.744M |
| PoE Power | Single port maximum 30W, Whole machine maximum power 58W |
| Power Supply | AC 100-240V external Power supply |
| Dimensions | 100 x 100 x 27mm (3.9 inches) |
| Case Material | Iron |
| Type | Desktop |
| Management | Non-managed PoE switch |
| PoE Standard | IEEE 802.3af/at |
| Switching Capacity | 1 Gbps |
| MAC Address Table | 1K MAC address entries |
| Operating Temperature | 0��C to 40��C (32��F to 104��F) |
| Storage Temperature | -10��C to 70��C (14��F to 158��F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Certifications | FCC, CE, VCCI, C-Tick |
