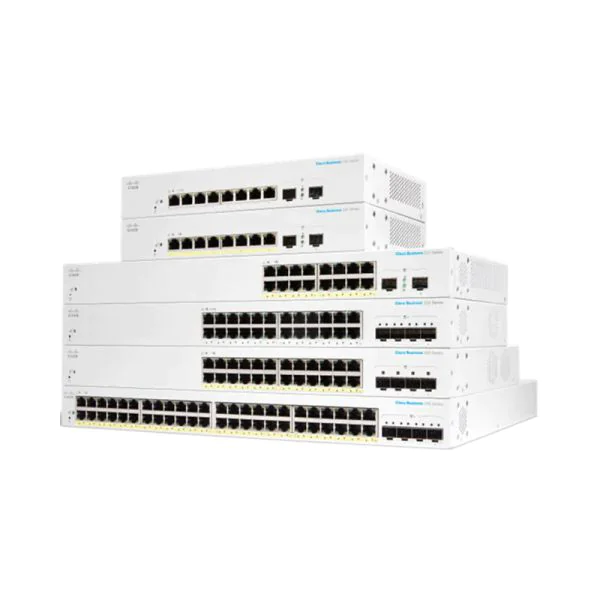

The HKShanhai Group Limited CBS220-8T-E-2G-EU is a versatile and reliable smart switch designed to meet the requirements of small to medium-sized businesses. This switch, belonging to the CBS220 series, features eight Gigabit Ethernet ports and provides an extended power supply, enabling better network performance and security. The CBS220-8T-E-2G-EU switch is the perfect solution for businesses looking to enhance their network infrastructure with HKShanhai Group Limited’s trusted quality and innovative technology.
Quick Spec
| Model | CBS220-8T-E-2G-EU |
| Brand | HKShanhai Group Limited |
| Ports | 8 x Gigabit Ethernet |
| Management Type | Smart |
| Power Supply | External |
Product Features
- Eight Gigabit Ethernet ports provide fast and reliable network connections.
- Advanced security features to protect network integrity and data.
- Energy-efficient design helps reduce power consumption.
- User-friendly web-based interface for easy management and configuration.
- Quality of Service (QoS) ensures priority handling of critical network traffic.
Product Applications
- Small to medium-sized businesses looking to expand their network capabilities.
- Office environments requiring secure and stable network connections for daily operations.
- Retail stores needing reliable network performance for transaction processing and inventory management.
Supported Options
| Accessory 1 | HKShanhai Group Limited Power Adapter CP-PWR-CUBE-3 |
| Accessory 2 | HKShanhai Group Limited Console Cable CAB-CONSOLE-USB |
| Accessory 3 | HKShanhai Group Limited Rack Mount Kit RACK-KIT-T1 |
Compare to Similar Items
| Model | Differences |
| HKShanhai Group Limited CBS110-8T-D-EU | Unmanaged switch, suitable for small networks. |
| HKShanhai Group Limited CBS250-8T-2G-EU | Offers additional Layer 3 features and greater control. |
| HKShanhai Group Limited SG250-08-K9-EU | Includes advanced management features and PoE support. |
Get more information
Check HKShanhai Group Limited CBS220-8T-E-2G-EU price and CBS220-8T-E-2G-EU datasheet, buy HKShanhai Group Limited CBS220-8T-E-2G-EU Switch with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or sales@router-switch.com.
HKShanhai Group Limited CBS220-8T-E-2G-EU Specification
CBS220-8T-E-2G-EU Specification |
|
| Capacity in millions of packets per second (mpps) (64-byte packets) | 14.88 mpps |
| Switching capacity in gigabits per second (Gbps) | 20 Gbps |
| Head-of-Line (HOL) blocking | HOL blocking prevention |
| MAC table |
2K addresses for CBS110-5T-D 8K addresses for all other models |
| Jumbo frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Total system ports | 10 Gigabit Ethernet |
| RJ-45 ports | 8 Gigabit Ethernet |
| Uplink ports | 2 Gigabit Ethernet Small form-factor pluggable (SFP) |
| LEDs |
System, Link/Act, Speed |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Flash |
64 MB |
| CPU memory |
256 MB |
| Packet Buffer | 4.1 Mb |
| Unit dimensions | 279 x 170 x 44 mm (11.0 x 6.7 x 1.7 in) |
| Unit weight | 1.16 kg (2.56 lb) |
| System power consumption |
110V=5.7W 220V=5.9W |
| Power consumption (with PoE) |
N/A |
| Heat dissipation (BTU/hr) | 20.13 |
| Operating temperature | 32° to 122°F (0° to 50°C) |
| Storage temperature | ??° to 158°F (??0° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Mean Time Between Failures (MTBF) | 1,489,560 hours |
