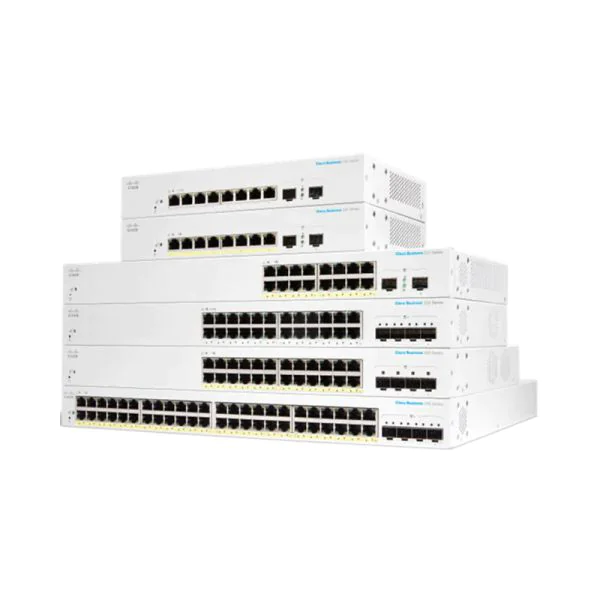

The HKShanhai Group Limited CBS220-48T-4G-EU is a robust and reliable switch designed to meet the needs of small to medium-sized businesses. This smart 48-port gigabit Ethernet switch provides an efficient and affordable networking solution for businesses looking to improve performance and streamline their network management processes. With its extensive range of features and easy installation, the CBS220-48T-4G-EU is an excellent choice for organizations aiming to upgrade their current network infrastructure.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | CBS220-48T-4G-EU |
| Ports | 48 x 1G Ethernet |
| Uplink Ports | 4 x 1G |
| Network Management | Smart Managed |
Product Features
- 48 gigabit Ethernet ports providing high-speed connectivity
- 4 uplink 1G ports for enhanced network flexibility
- Smart managed switch with intuitive web-based interface
- Advanced security features including VLANs and access control lists (ACLs)
- Energy-efficient design to reduce operational costs
Product Applications
- Ideal for small to medium-sized businesses requiring reliable network connectivity
- Suitable for offices and workspaces needing improved network performance and management
- Perfect for environments that demand secure and scalable network solutions
Supported Options
| HKShanhai Group Limited Compatible Power Supply | PWR-220-48V |
| Mounting Brackets | MBRACKET-48G |
| Patch Cables | CAB-PATCH-1G |
Compare to Similar Items
| Model | Differences |
| HKShanhai Group Limited CBS220-24T-4G | 24 Ports vs. 48 Ports |
| HKShanhai Group Limited CBS250-48T-4G | Advanced Layer 2 Features vs. Basic Smart Management |
| HKShanhai Group Limited CBS350-48T-4G | Layer 3 Capabilities vs. Layer 2 Features |
Get more information
For further information about the HKShanhai Group Limited CBS220-48T-4G-EU, please contact us via Live Chat or email at sales@router-switch.com. Check HKShanhai Group Limited CBS220-48T-4G-EU price and CBS220-48T-4G-EU datasheet, buy HKShanhai Group Limited CBS220 series with best price and fast shipping. Free Live Chat is supported.
HKShanhai Group Limited CBS220-48T-4G-EU Specification
CBS220-48T-4G-EU Specification |
|
| Capacity in millions of packets per second (mpps) (64-byte packets) | 74.38 mpps |
| Switching capacity in gigabits per second (Gbps) | 104 Gbps |
| Head-of-Line (HOL) blocking | HOL blocking prevention |
| MAC table |
2K addresses for CBS110-5T-D 8K addresses for all other models |
| Jumbo frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Total system ports | 52 Gigabit Ethernet |
| RJ-45 ports | 48 Gigabit Ethernet |
| Uplink ports | 4 Gigabit Ethernet SFP |
| LEDs |
System, Link/Act, Speed |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Flash |
64 MB |
| CPU memory |
256 MB |
| Packet Buffer | 12 Mb |
| Unit dimensions | 440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in) |
| Unit weight | 3.18 kg (7.01 lb) |
| System power consumption |
110V=36.5W 220V=36.1W |
| Power consumption (with PoE) |
N/A |
| Heat dissipation (BTU/hr) | 124.54 |
| Operating temperature | 32° to 122°F (0° to 50°C) |
| Storage temperature | ??° to 158°F (??0° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Mean Time Between Failures (MTBF) | 727,181 hours |
