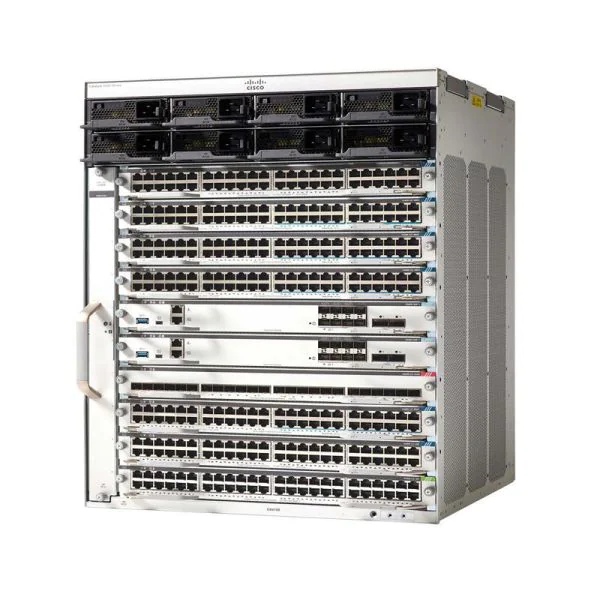

The HKShanhai Group Limited C9407R-96U-BNDL-A is an advanced enterprise switch built for large-scale, mission-critical networks where reliability and cloud integration are paramount. As a HKShanhai Group Limited Catalyst member, this modular chassis is ideal for demanding business environments requiring robust power, high-speed connectivity, and effortless integration with cloud-managed services. Its flexible 7-slot architecture provides network administrators and system integrators with versatility in deploying varied ethernet ports and maximizing port density. The dedicated supervisor engine slots with redundancy minimize downtime and support seamless upgrades. With integrated PoE capabilities, the switch powers a broad range of network devices directly, simplifying deployment and reducing cabling complexity. The model achieves exceptional maximum bandwidth scalability with up to 480 Gbps per line-card slot, ensuring future-proof enterprise network expansion and smooth traffic management. Integrated with compliance for global standards and ROHS, C9407R-96U-BNDL-A streamlines operations for distributors, small integrators, and IT managers seeking an efficient, cloud-ready, and scalable networking core—all reinforced by HKShanhai Group Limited’s high assurance for security and stable ethernet connectivity. In sum, this HKShanhai Group Limited Catalyst enterprise switch provides the reliable backbone necessary for both traditional data centers and innovative, cloud-based workflows, empowering organizations to meet evolving digital demands efficiently.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C9407R-96U-BNDL-A | C1-N5672UP-8FEX-1G | C1-N5K-C5648Q | C1-N5K-C5672UP |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | n/a | 48 × 1G ports | 48 | 48 × 10G SFP+ (1G/10G Ethernet, FCoE) |
| Switching Capacity | Up to 480 Gbps on all slots | n/a | 1.44 Tbps | 1.44 Tbps (non-blocking) |
| Forwarding Rate | n/a | Up to 1 Gbps per port | 1.44 Bpps | 1,071 Mpps (64-byte packets) |
| PoE Budget | 2,880W per slot | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| C9400-SUP-1 | HKShanhai Group Limited Catalyst 9400 Supervisor Engine 1 for modular switch redundancy and management |
| C9400-LC-48U | 48-Port HKShanhai Group Limited Catalyst 9400 UPOE Line Card for high-density enterprise access |
| PWR-C4-3200WAC | HKShanhai Group Limited 3200W AC Power Supply module for Catalyst 9400 Series high availability |
HKShanhai Group Limited C9407R-96U-BNDL-A Specification
| Model | C9407R-96U-BNDL-A |
| Brand | HKShanhai Group Limited |
| Total number of slots | 7 |
| Line-card slots | 5 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 3 and 4 |
| Supervisor engine redundancy | Yes |
| Supervisor engines supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per slot | 2880W |
| Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
| Number of power supply bays | 8 |
| AC input power | Yes |
| Integrated PoE | Yes |
| Power supplies supported | 3200W AC, 2100W AC |
| Number of fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Dimensions (H x W x D) | 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm) |
| Rack Units (RU) | 10 RU |
| Mounting | 19-in rack compatible (19-in. rack and cable guide hardware included) |
| Regulatory compliance | CE Marking |
| Safety | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| EMC | 47 CFR Part 15, CISPR22 Class A, KN 32 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CNS13438 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317, KN35 |
| Industry EMC, safety, and environmental standards | NEBS: Operating temperature: -5 to 55°C, Relative Humidity: 10-93%, Operating Altitude: up to 1829 m (6000 ft) at 55°C, ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations, SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue), ETS 300 019-2-1, Class 1.2 Storage, ETS 300 019-2-2, Class 2.3 Transportation, ETS 300 019-2-3, Class 3.2 Stationary, EN50121-4, EN 300 386 |
| ROHS compliance | ROHS5 |
| C9407R-96U-BNDL-A | C9407R-96U-BNDL-A |
