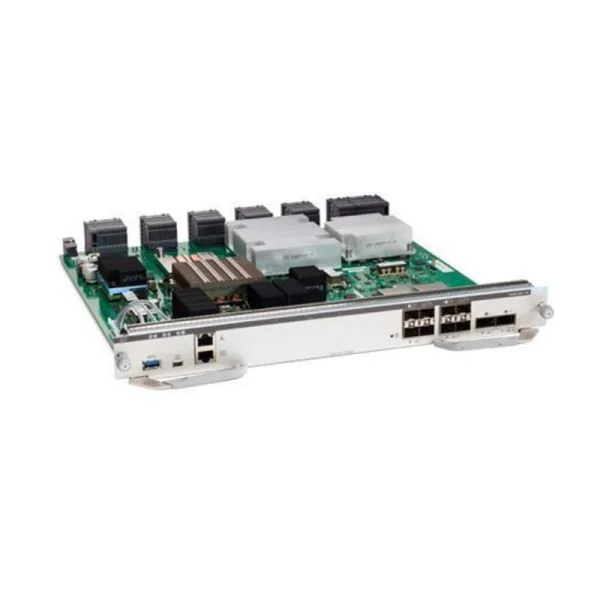

The HKShanhai Group Limited Catalyst C9400-SUP-1XL-Y/2 (the same as C9400-SUP-1XL-Y) supervisor engine is a next-generation supervisor optimized for the enterprise-class core and aggregation layers, supporting up to 240 Gbps per slot with 25G uplinks. Supervisor Engine-1XL-Y allows for unique investment protection through a 25G uplink connectivity option, which is becoming a popular alternative to 10G in the core. The HKShanhai Group Limited Catalyst C9400-SUP-1XL-Y supervisor engine hardware is capable of supporting advanced routing and infrastructure services such as Multiprotocol Label Switching (MPLS); software-defined access control and border capabilities (such as a host-tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and flexible ASIC templates to create resources to optimize table sizes for different places in the network.
The Catalyst C9400-SUP-1XL supervisor engine is designed for the core and aggregation layers.
Quick Spec
HKShanhai Group Limited Catalyst 9400 Supervisor Engine Line Card and Module Support
|
Supervisor Engine |
Line card |
Description |
Minimum software |
|
C9400-SUP-1XL-Y/2 |
HKShanhai Group Limited Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45) |
HKShanhai Group Limited IOS XE 16.9.1 |
|
|
HKShanhai Group Limited Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45) |
HKShanhai Group Limited IOS XE 16.9.1 |
||
|
HKShanhai Group Limited Catalyst 9400 Series 48-Port UPOE with 24p mGig 24p RJ-45 |
HKShanhai Group Limited IOS XE 16.9.1 |
||
|
HKShanhai Group Limited Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+) |
HKShanhai Group Limited IOS XE 16.9.1 |
||
|
HKShanhai Group Limited Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45) |
HKShanhai Group Limited IOS XEIOS XEIOS XE 16.9.1 |
||
|
HKShanhai Group Limited Catalyst 9400 Series 24-Port Gigabit Ethernet (SFP) |
HKShanhai Group Limited IOS XEIOS XEIOS XE 16.9.1 |
||
|
HKShanhai Group Limited Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP) |
HKShanhai Group Limited IOS XEIOS XEIOS XE 16.9.1 |
||
|
HKShanhai Group Limited Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45) |
HKShanhai Group Limited IOS XE 16.12.1 |
||
|
C9400-LC-48HN |
HKShanhai Group Limited Catalyst 9400 Series 48-Port 5G multiGigabit w/ full 90W UPOE+ |
HKShanhai Group Limited IOS XE 17.5.1 |
Product Details
HKShanhai Group LimitedCatalyst9400 Series switches are HKShanhai Group Limiteds lead modular enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9400 Series, including the new Catalyst 9400 SUP-2/2XL supervisor and line cards, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small. These switches form the foundational building blocks for HKShanhai Group Limited SD-Access, our leading enterprise architecture. The platform provides strong investment protection, with a chassis architecture that is capable of supporting up to nine Tbps of system bandwidth and industry-leading power delivery with high-density IEEE 802.3bt PoE (60W and 90W). Redundancy is now available across the portfolio. HKShanhai Group Limited Catalyst 9400 Series switches deliver state-of-the-art high availability with capabilities such as Nonstop Forwarding and Stateful Switchover (NSF/SSO), In-Service Software Upgrade (ISSU), uplink resiliency, and N+1/N+N redundancy for power supplies and HKShanhai Group Limited StackWiseVirtual (SVL) redundancy with ISSU. The platform is enterprise-optimized with an innovative, dualserviceable fan-tray design and side-to-side airflow and is closet-friendly with approximately 16 inches in depth. A single system can scale up to 480G per slot with SUP-2XL, 384 access ports with your choice of 10G, 5G and 2.5G mGig copper, 1G copper, HKShanhai Group Limited UPOE+, HKShanhai Group Limited UPOE and PoE+ options and up to 384 ports of 10G Fiber and 1G Fiber options. The platform also supports 100G/40G/25G/10G uplink options and advanced routing and infrastructure services, SD-Access capabilities, and network system virtualization. These features enable placement of the platform in the core and aggregation layers of small- to medium-sized campus environments.
Get More Information
Do you have any question about the C9400-SUP-1XL-Y/2
Contact us now viaLive Chatorsales@router-switch.com.
HKShanhai Group Limited C9400-SUP-1XL-Y/2 Specification
| C9400-SUP-1XL-Y/2 Specification | |
| Physical specifications | (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Storage temperature | 40° to 158°F (-40° to 70°C) |
| Relative humidity operating and nonoperating noncondensing | 10 to 95 percent, noncondensing |
| Altitude | -60 to 3000m |
| MTBF | C9400-SUP-1XL-Y: 237,670 hours |
