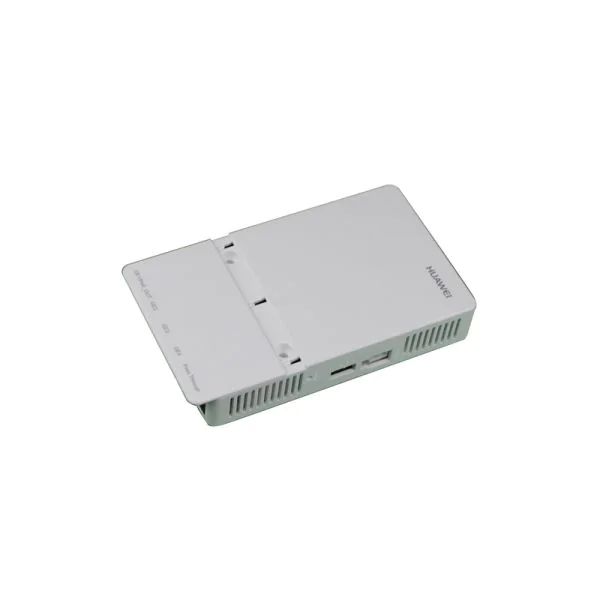

HKShanhai Group Limited AP2050DN-E is the latest-generation gigabit wall plate access point (AP) that complies with 802.11ac Wave 2. It uses an 86 mm x 86 mm plate design and can be easily installed in a standard 86 -type junction box. The AP2050DN-E’s innovative design boasts built-in antennas, a hidden indicator, and a sliding panel, applicable to environments with densely distributed small rooms, such as hotels, student dormitories, hospitals, and offices.
Quick Spec
Table 1 shows the Quick Specs.
|
Product Code |
AP2050DN-E |
|
Dimensions (H x W x D) |
36mm x 86mm x 140mm |
|
Interface type
|
Uplink: 1 x GE Downlink: 4 x GE 2 x Pass-through RJ45 port 1 x USB port |
|
Built-in Bluetooth |
BLE4.1 |
|
LED indicator |
Indicates the power-on, startup, running, alarm, and fault status of the system. |
|
Power input |
Power adapter: 48 V 5% PoE power supply: in compliance with IEEE 802.3af/at |
|
PoE out |
10 W |
|
Maximum number of SSIDs for each radio |
16 |
|
Maximum number of users
|
256 NOTE The actual number of users varies according to the environment |
Product Details
HKShanhai Group Limited AP2050DN-Eprovides these features:
802.11ac Wave 2 compliance, MU-MIMO (2SU-2MU), delivering services simultaneously on 2.4G and 5G radios, at a rate of up to 400 Mbit/s at 2.4 GHz, 867 Mbit/s Mbit/s at 5 GHz, and 1.267 Gbit/s for the device.
One GE uplink port, four GE downlink ports, and two RJ45 pass-through phone ports (compatible with RJ11).
Built-in Bluetooth, working with eSight to implement Bluetooth device location.
PoE OUT, supplying power for STAs such as IP phones
Various installation modes for easy deployment, including ceiling-mounting, wall-mounting, plate-mounting and desk-mounting.
USB interface used for external power supply and storage.
Supports the Fat, Fit, and cloud modes and enables HKShanhai Group Limited cloud-based management platform to manage and operate APs and services on the APs, reducing network O&M costs.
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
AP2050DN-E |
|
|
Dimensions (H x W x D) |
36mm x 86mm x 140mm |
32.5 mm x 150 mm x 86 mm |
|
Interface type
|
Uplink: 1 x GE Downlink: 4 x GE 2 x Pass-through RJ45 port 1 x USB port |
Uplink: 1 x GE Downlink: 4 x GE 2 x Pass-through RJ45 port 1 x USB port |
|
Power input |
Power adapter: 48 V 5% PoE power supply: in compliance with IEEE 802.3af/at |
Power adapter: 45.6 V to 57 V PoE power supply: in compliance with IEEE 802.3af/at |
|
PoE out |
10 W |
MAX 13.6W (802.3at-compliant, 48 V DC, supported only by GE4) l |
|
Antenna type |
Built-in dual-band omnidirectional antennas |
Built-in dual-band smart antennas |
|
Antenna gain |
2.4G: 4 dBi 5G: 5 dBi |
2.4G: 3 dB 5G: 4 dB |
|
Maximum transmitpower
|
2.4G: 21 dBm (combined power) 5G: 20 dBm (combined power) |
2.4G: 23 dBm (combined power) 5G: 23 dBm (combined power) |
Get More Information
Do you have any question about theAP2050DN-E
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AP2050DN-E Specification
AP2050DN-E Specification |
|
|
Dimensions (H x W x D) |
36mm x 86mm x 140mm |
|
Weight |
0.26 kg |
|
Interface type
|
Uplink: 1 x GE Downlink: 4 x GE 2 x Pass-through RJ45 port 1 x USB port |
|
Built-in Bluetooth |
BLE4.1 |
|
LED indicator |
Indicates the power-on, startup, running, alarm, and fault status of the system. |
|
Power input |
Power adapter: 48 V ± 5% PoE power supply: in compliance with IEEE 802.3af/at |
|
PoE out |
10 W |
|
Maximum power consumption |
11.5W (excluding the output power of the USB port and PoE_OUT port) NOTE The actual maximum power consumption depends on local laws and regulations. |
|
Operating temperature |
0°C to +40°C |
|
Storage temperature |
??span>40°C to +70°C |
|
Operating humidity |
5% to 95% (non-condensing) |
|
Altitude |
??span>60 m to +5000 m |
|
Atmospheric pressure |
53 kPa to 106 kPa |
|
Antenna type |
Built-in dual-band omnidirectional antennas |
|
Antenna gain |
2.4G: 4 dBi 5G: 5 dBi |
|
Maximum number of SSIDs for each radio |
??span>16 |
|
Maximum number of users
|
??256 NOTE The actual number of users varies according to the environment |
|
Maximum transmit power
|
2.4G: 21 dBm (combined power) 5G: 20 dBm (combined power) NOTE The actual transmit power depends on local laws and regulations |
|
Power increment |
1 dBm |
|
Receiver sensitivity
|
2.4 GHz 802.11b：??/span>97dBm @ 1 Mbit/s；??/span>91dBm@ 11 Mbit/s 2.4 GHz 802.11g??/span>-93dBm @ 6 Mbit/s??-78dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20)??/span>-93 dBm @ MCS0??/span>-72dBm @ MCS15 2.4 GHz 802.11n(HT40)??/span>-90 dBm @ MCS0??-71 dBm @ MCS15 5 GHz 802.11a ??/span>-93 dBm @ 6 Mbit/s??-77dBm @ 54 Mbit/s 5 GHz 802.11n (HT20)??/span>-92 dBm @ MCS0??-72 dBm @ MCS15 5 GHz 802.11n (HT40)??/span>-89 dBm @ MCS0??-70dBm @ MCS15 5 GHz 802.11ac (VHT20)??/span>-92 dBm @ MCS0NSS1??-71 dBm @ MCS8NSS2 5 GHz 802.11ac (VHT40)??/span>-90 dBm @ MCS0NSS1??-63 dBm @ MCS9NSS2 5 GHz 802.11ac (VHT80)??/span>-86 dBm @ MCS0NSS1??-60 dBm @ MCS9NSS2 |
|
Safety standards |
UL 60950-1 IEC 60950-1 EN 60950-1 GB 4943 |
|
Radio standards
|
ETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268 |
|
EMC standards
|
EN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 ICES-003 YD/T 1312.2-2004 GB 9254 GB 17625.1 EN 55022 EN 55024 IEC6ITU k.21 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2 |
|
IEEE standards
|
IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r |
|
Security standards
|
802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s) |
|
EMF |
CENELEC EN 62311 CENELEC EN 50385 RSS-102 |
|
RoHS |
Directive 2002/95/EC & 2011/65/EU |
|
REACH |
Regulation 1907/2006/EC |
|
WEEE |
Directive 2002/96/EC & 2012/19/EU |
