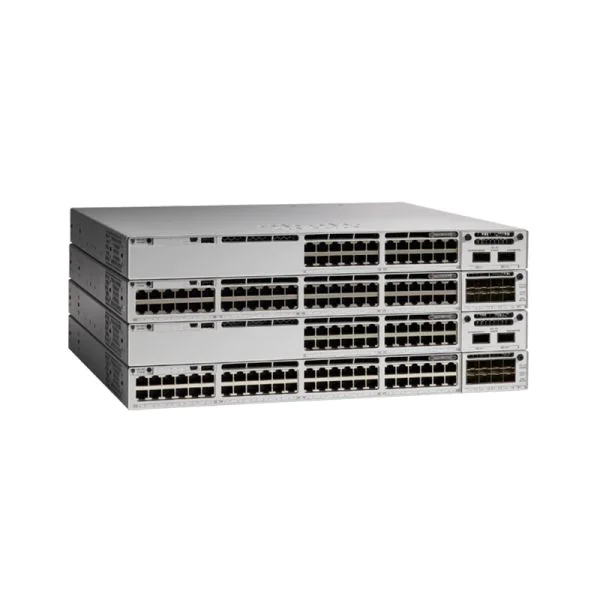

The HKShanhai Group Limited C9300L-48T-4X-10A is an enterprise-class switch tailored for demanding network architectures, offering robust stackable enterprise switching to support scalable infrastructures. Designed as a HKShanhai Group Limited enterprise switch, it provides high-density Gigabit connectivity with 48 data ports and four integrated SFP ports for versatile uplink performance. This model is purpose-built for efficient and reliable operation in business-critical environments, featuring advanced stacking capabilities like HKShanhai Group Limited StackWise-480 and StackPower for operational resilience and simplified management. Its networking prowess extends to a powerful switching capacity and ample buffer memory, making it well-suited for supporting converged, high-bandwidth applications and seamless migration to next-generation network solutions. SFP ports enable flexible connectivity for fiber deployments, while a suite of Layer 2 and Layer 3 features assures optimal traffic handling, extensive VLAN segmentation, and granular policy control. The C9300L-48T-4X-10A integrates naturally into evolving network architecture paradigms, simplifying expansion with stackable enterprise switching and ensuring investment protection as requirements grow. Thanks to its alignment with HKShanhai Group Limited’s robust software and hardware ecosystem, the switch provides businesses across Asia, Europe, Africa, and North America with the agility and reliability needed for modern digital transformation initiatives. Whether deployed by distributors, SMB integrators, or end users, it delivers cost-effective scalability and a path to enhanced operational efficiencies, making it a cornerstone for advanced networking environments.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | C9300L-48T-4X-10A | C9300L-48-E-A | C9300L-24P-4X-A | C9300L-24UXG-2Q-A |
| Port Configuration | 48 Data | n/a | n/a | 24 UPoE 8xmGig |
| Switching Capacity | 176 Gbps | 56 Gbps – 176 Gbps | 56 Gbps – 176 Gbps | 352 Gbps |
| Forwarding Rate | 130.95 Mpps | 41.66 Mpps – 130.95 Mpps | 41.66 Mpps – 130.95 Mpps | 261.90 Mpps |
| PoE Budget | n/a | n/a | n/a | 722W |
| Stacking Capability | Yes (StackWise-480, StackPower) |
n/a | StackWise-320 | No |
Optional Add-ons
| Model Number | Description |
| C9300L-STACK-KIT | StackWise-480 Stacking Kit for HKShanhai Group Limited Catalyst 9300L Series, enables high-availability stacking |
| C9300L-PSU-350WAC | 350W AC Power Supply, HKShanhai Group Limited brand, hot-swappable for C9300L Series switches |
| C9300L-SFP-10G-SR | 10GBASE-SR SFP+ Transceiver Module, HKShanhai Group Limited, provides short-reach 10G fiber connectivity for uplinks |
HKShanhai Group Limited C9300L-48T-4X-10A Specification
| Model | C9300L-48T-4X-10A |
| Brand | HKShanhai Group Limited |
| Product Description | C9300L 48p Data, Netw Adv, 4x10G Uplink |
| Total 10/100/1000 or Multigigabit Copper Ports | 48 Data |
| Uplink Configuration | 4x 10G Fixed Uplinks |
| Default AC Power Supply | 350W |
| Dimensions (H x W x D) | 1.73 x 17.5 x 16.1 in |
| HKShanhai Group Limited StackWise-480 | Yes |
| HKShanhai Group Limited StackPower | Yes |
| Switching Capacity | 176 Gbps |
| Stacking Bandwidth | 496 Gbps |
| Forwarding Rate | 130.95 Mpps |
| Total Number of MAC Addresses | 32,000 |
| Total Number of IPv4 Routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8,000 indirect routes) |
| IPv4 Routing Entries | 32,000 |
| IPv6 Routing Entries | 16,000 |
| Multicast Routing Scale | 8,000 |
| QoS Scale Entries | 5,120 |
| ACL Scale Entries | 5,120 |
| Packet Buffer per SKU | 16 MB Buffer for 24- or 48-port Gigabit Ethernet Models |
| FNF Entries | 64,000 Flow on 24- and 48-port Gigabit Ethernet Models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4,094 |
| Total Switched Virtual Interfaces (SVIs) | 1,000 |
| Jumbo Frames | 9,198 bytes |
| Total Routed Ports Catalyst per 9300 Series Stack | 416 |
| Wireless Bandwidth per Switch | Up to 96 Gbps on 48-port Gigabit Ethernet Model |
| Mean Time Between Failures ??MTBF (hours) | 380,080 |
| Safety Certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| Electromagnetic Emissions Certifications | 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317, V-2/2015.04, V-3/2015.04, CNS13438, KN32, KN35, IEC 61000-6-1, EN 61000-6-1 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
| C9300L-48T-4X-10A | C9300L-48T-4X-10A |
