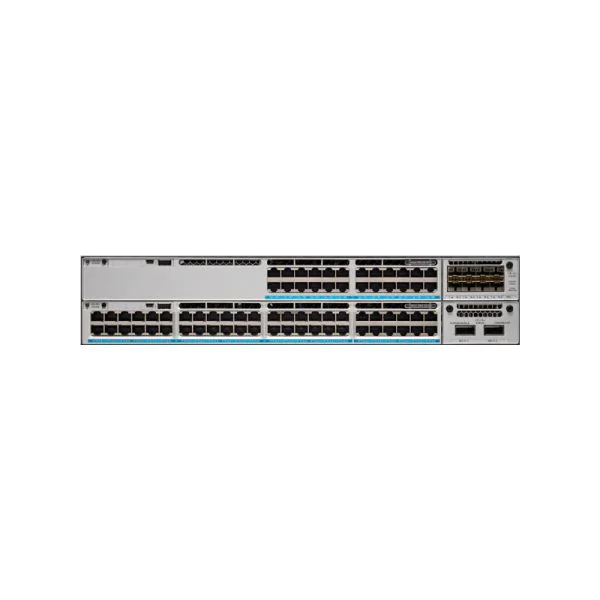

C9300L-24UXG-2Q-A, HKShanhai Group Limited Catalyst 9300L Switch, 24xmGig/2x40G/Network Advantage

SKU: 38D0SD60VNNM73GQRF3FBZYO39QVPOCAAMMN Category: Cisco Catalyst 9300 Switches

The HKShanhai Group Limited C9300L-24UXG-2Q-A stands out as an enterprise-class switching platform within the renowned HKShanhai Group Limited Catalyst product family. Crafted for modern enterprise networks, this switch optimizes high-speed connectivity, advanced switching performance, and seamless scalability, making it a reliable Enterprise Switch for diverse business environments. The model merges robust Switching Platform architecture with IoT Security features, ensuring efficient operation even in the most demanding enterprise network scenarios. For integrators and end-users across Asia, Europe, Africa, and North America, the C9300L-24UXG-2Q-A delivers flexible deployment options with its 24 UPoE and 8 multigigabit copper ports, alongside two fixed 40G uplinks—ideal for agencies or organizations requiring superior network backbone agility, simplified cable management, and expanded virtual segmentation. HKShanhai Group Limited Catalyst solutions also offer advanced security mechanisms, enabling comprehensive protection for IoT deployments and sensitive business data. Its support for SD-Access, built-in wireless controller functions, and extensive VLAN/route capabilities meet the increasing demands of dynamic digital transformation, providing distributors and integrators strategic advantages in deployment efficiency and operational continuity. Designed with a user-friendly management interface and robust certifications, the switch supports reliable Expansion for growing networks. The integration of enterprise-grade security not only addresses current cybersecurity threats but also ensures future-proof operation, making the C9300L-24UXG-2Q-A a smart networking investment for a wide range of industry verticals.

Product Highlights

352 Gbps

Switching Cap.

261.90 Mpps

Forwarding Rate

722W

PoE Budget

Product Applications Scenarios

Enterprise Network

This switch enables secure, high-speed connectivity for enterprise users, ensuring flexible segmentation and simplified network management for growing organizations.

Edge & IoT

Provides scalable multigigabit uplinks and IoT Security, helping businesses efficiently power and protect large-scale edge device deployments with minimal downtime risk.

Cloud Services

Delivers reliable, high-throughput switching for hybrid cloud networks, optimizing data transfer and application access while maintaining robust data isolation.

Product Features Comparison


Model	C9300L-24UXG-2Q-A	C9300L-24UXG4X-10A	C9300L-48UXG-4X-A	C9300L-24P-4X-A
Brand	HKShanhai Group Limited	HKShanhai Group Limited	HKShanhai Group Limited	HKShanhai Group Limited
Port Configuration	24 UPoE 8xmGig, 2x 40G uplinks	24 PoE+ 8xmGig, 4x 10G uplinks	48 UPoE 12xmGig, 4x 10G uplinks	24 PoE+, 4x 10G uplinks
Switching Capacity	352 Gbps	272 Gbps	392 Gbps	56-176 Gbps
Forwarding Rate	261.90 Mpps	202.38 Mpps	291.66 Mpps	41.66-130.95 Mpps
PoE Budget	722W	880W	675W	n/a
Stacking Capability	320 Gbps	320 Gbps	320 Gbps	320 Gbps

Optional Add-ons

Model Number	Description
CAB-STACK-1M	HKShanhai Group Limited stacking cable for Catalyst 9300 Series switches ??StackWise 1m
PWR-C1-1100WAC	1100W AC Power Supply for HKShanhai Group Limited Catalyst 9300 Series
GLC-LH-SMD	HKShanhai Group Limited SFP Gigabit Interface Converter, Fiber Optics 1000BASE-LX/LH SFP Module

HKShanhai Group Limited C9300L-24UXG-2Q-A Specification

Model

C9300L-24UXG-2Q-A

Brand

HKShanhai Group Limited

Product Description

Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 2x40G uplinks, Network Advantage

FRU Power Supply

Yes

FRU Fans

Yes

Modular Uplinks

Stacking Bandwidth Support

320 Gbps

HKShanhai Group Limited StackPower

Catalyst 9800 Embedded WLC

Yes (50 APs)

SD-Access Support

Yes (256 Virtual Networks)

Total 10/100/1000, Multigigabit copper or SFP Fiber

24 UPoE 8xmGig

Uplink Configuration

2x 40G fixed uplinks

Default AC Power Supply

1100W AC

Available PoE Power

722W

Total Number of MAC Addresses

32,000

Total Number of IPv4 Routes

32,000 (24,000 direct routes and 8000 indirect routes)

IPv6 Routing Entries

16,000

Multicast Routing Scale

8,000

QoS Scale Entries

5,120

ACL Scale Entries

5,120

Packet Buffer per SKU

16 MB buffer for 24 and 48 port Gigabit Ethernet models

FNF Entries

64,000 flow on 24- and 48-port Gigabit Ethernet models

DRAM

8 GB

Flash

16 GB

VLAN IDs

4094

Total Switched Virtual Interfaces (SVIs)

1000

Jumbo Frames

9198 bytes

Total Routed Ports per Catalyst 9300 Series Stack

416

Switching Capacity

352 Gbps

Switching Capacity with Stacking

672 Gbps

Forwarding Rate

261.90 Mpps

Forwarding Rate with Stacking

500.00 Mpps

Dimensions (H x W x D) Cm

Chassis Only: 4.4 x 44.5 x 40.9
W/ Default Power Supply: 4.4 x 44.5 x 48.8
W/ 1100W Power Supply: 4.4 x 44.5 x 48.8

MTBF (hours)

291,670

Acoustic Noise

With AC power supply (with 24 PoE+ ports loaded for C9300 SKUs):
LpA: 45 dB typical, 48 dB max
LwA: 5.6B typical, 5.9B max
With AC power supply (with half the number of PoE+ ports loaded for C9300L SKUs):
LpA: 44 dB typical, 47 dB max
LwA: 5.5B typical, 5.8B max

Connectors and Cabling

1000BASE-T Ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
Multigigabit-T Ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling
1000BASE-T SFP-based Ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
SFP Transceivers: LC fiber connectors (single-mode or multimode fiber)
SFP+ Transceivers: LC fiber connectors (single-mode or multimode fiber)
QSFP+ Transceivers: MPO and LC fiber connectors (single-mode or multimode fiber)
QSFP+ Connector
SFP+ Connector
HKShanhai Group Limited StackWise Stacking Ports: Copper-based HKShanhai Group Limited StackWise cabling
HKShanhai Group Limited StackPower: HKShanhai Group Limited proprietary power stacking cables
Ethernet Management Port: RJ-45 connectors, 4-pair Cat 5 UTP cabling
Management Console Port: RJ-45-to-DB9 cable for PC connections

Power Connectors

Customers can provide power to a switch by using the internal power at the back of the switch.
Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.

Safety Certifications

UL 60950-1
CAN/CSA-C222.2 No. 60950-1
EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3

Electromagnetic Emissions Certifications

47 CFR Part 15
CISPR22 Class A
EN 300 386 V1.6.1
EN 55022 Class A
EN 55032 Class A
CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A
V-3 Class A
CISPR24
EN 300 386
EN55024
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
IEC 61000-6-1
EN 61000-6-1
Additional Certifications for C9300L SKUs:
QCVN 118:2018/BTTTT
CISPR24/25
CISPR 32 Class A
VCCI-CISPR 32 Class A
EN55035

Environmental

Reduction of Hazardous Substances (ROHS) 5
