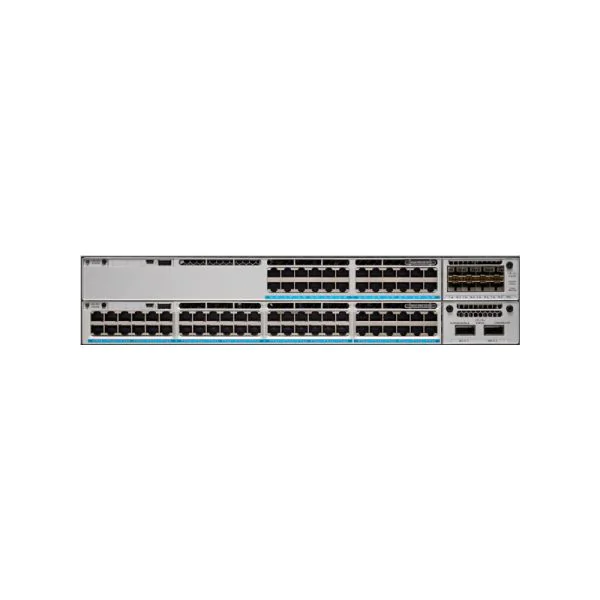

The HKShanhai Group Limited C9300L-24UXG4X-10A is a next-generation enterprise-grade switch built to serve as the foundation of a secure, scalable, and resilient enterprise switching platform. Engineered with advanced PoE+ capabilities and robust network performance, this HKShanhai Group Limited Catalyst model provides superior flexibility for modern digital workplaces and campus deployments, especially where IoT and wireless expansion are essential. With support for 24 PoE+ ports including 8 Multigigabit links and 4 fixed 10G uplinks, the C9300L-24UXG4X-10A enables connectivity for high-performance access points and bandwidth-intensive IoT endpoints. Its ability to sustain up to 320 Gbps stacking bandwidth and offer embedded wireless controller functionality for up to 50 APs empowers organizations to efficiently manage both wired and wireless infrastructures from a single device. The switch’s advanced enterprise switching platform assures secure segmentation, high route and MAC address scalability, and streamlined network automation. PoE+ support, providing up to 880W budget, enables seamless powering of connected devices without additional cabling. Built with Asia, Europe, Africa, and North America business networks in mind, it aligns with modern regulatory and operational standards. From small business expansion plans to large corporate campuses requiring IoT readiness, HKShanhai Group Limited Catalyst brings together security, performance, and future-ready architecture to meet changing business needs while boosting operational efficiency and reducing deployment complexity.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | C9300L-24UXG4X-10A | C9300-24U-A | C9300L-24UXG2Q-10A | C9300L-48UXG-4X-A |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 24 PoE+ 8xmGig | 24 HKShanhai Group Limited UPOE | 24 PoE+ 8xmGig | 48 UPoE 12xmGig |
| Switching Capacity | 272 Gbps | 208 Gbps on 24-port Gigabit Ethernet model | 352 Gbps (672 Gbps with stacking) | 392 Gbps |
| Forwarding Rate | 202.38 Mpps | 154.76 Mpps | 261.90 Mpps | 291.66 Mpps |
| PoE Budget | 880W | 830W | 722W | 675W |
| Stacking Capability | 320 Gbps | 480 Gbps | 320 Gbps | 320 Gbps |
Optional Add-ons
| Model Number | Description |
| PWR-C1-1100WAC | 1100W AC Power Supply Unit for HKShanhai Group Limited C9300L Series Switches |
| C9300L-DNA-E-24-3Y | 3-Year HKShanhai Group Limited DNA Advantage License for C9300L-24UXG4X-10A |
| C9300L-STACK-KIT | StackWise-320 Stacking Kit for HKShanhai Group Limited Catalyst 9300L Series |
HKShanhai Group Limited C9300L-24UXG4X-10A Specification
With AC power supply (with 24 PoE+ ports loaded for C9300 SKUs): LpA: 45dB typical, 48dB max; LwA: 5.6B typical, 5.9B max. With AC power supply (with half the number of PoE+ ports loaded for C9300L SKUs): LpA: 44dB typical, 47dB max; LwA: 5.5B typical, 5.8B max. Typical: Noise emission for a typical configuration. Maximum: Statistical maximum to account for variation in performance.
??1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
??Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling
??1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
??SFP transceivers: LC fiber connectors (single-mode or multimode fiber)
??SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)
??QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber)
??QSFP+ connector
??SFP+ connector
??HKShanhai Group Limited StackWise stacking ports: copper-based HKShanhai Group Limited StackWise cabling
??HKShanhai Group Limited StackPower: HKShanhai Group Limited proprietary power stacking cables
??Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling
??Management console port: RJ-45-to-DB9 cable for PC connections
??Customers can provide power to a switch by using the internal power at the back of the switch
??Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
??UL 60950-1
??CAN/CSA-C222.2 No. 60950-1
??EN 60950-1
??IEC 60950-1
??AS/NZS 60950.1
??IEEE 802.3
??47 CFR Part 15
??CISPR22 Class A
??EN 300 386 V1.6.1
??EN 55022 Class A
??EN 55032 Class A
??CISPR 32 Class A
??EN61000-3-2
??EN61000-3-3
??ICES-003 Class A
??TCVN 7189 Class A
??V-3 Class A
??CISPR24
??EN 300 386
??EN55024
??TCVN 7317
??V-2/2015.04
??V-3/2015.04
??CNS13438
??KN32
??KN35
??IEC 61000-6-1
??EN 61000-6-1
??QCVN 118:2018/BTTTT
??CISPR24/25
??CISPR 32 Class A
??VCCI-CISPR 32 Class A
??EN55035
