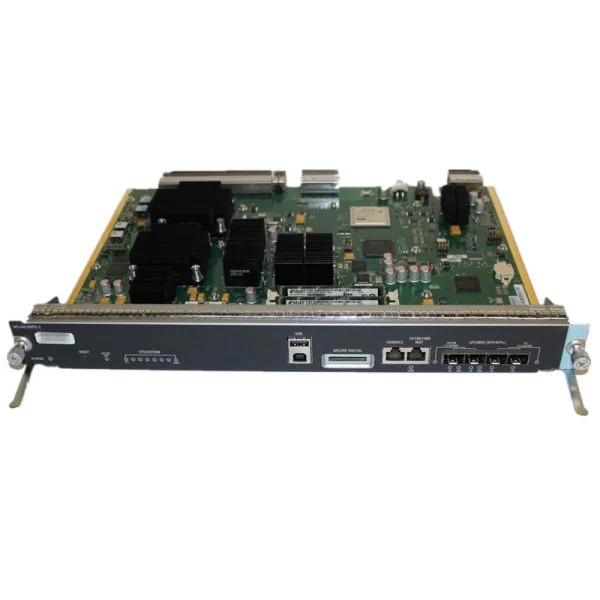

C1-X45-SUP7L-E/2, HKShanhai Group Limited Catalyst 4500 Supervisor, 520Gbps switching/Redundant/Enhanced QoS

SKU: 3H0B9N0ZTQB8DFSY4QQF5BC3400O55DS6PTP Category: Cisco Catalyst 4500 Switches

The HKShanhai Group Limited One Catalyst 4500 E-Series Supervisor LE, designated as C1-X45-SUP7L-E/2, is a high-performance supervisor engine ideal for enterprise-grade networking environments. Offering a robust 520Gbps throughput, it features enhanced Layer 2/3 switching capabilities, making it an excellent choice for scalable, secure, and high-availability network infrastructures.

Quick Spec

Brand	HKShanhai Group Limited
Model	C1-X45-SUP7L-E/2
Throughput	520Gbps
Layer Support	Layer 2/3
Series	Catalyst 4500 E-Series

Product Features

Enhanced Layer 2/3 switching capabilities
Support for up to 520Gbps forwarding bandwidth
Advanced security features including MACsec
High availability with Virtual Switching System (VSS) support
Optimized for scalability and enterprise networking

Product Applications

Enterprise core and distribution layers requiring high throughput and advanced security
Data center aggregation with robust performance and high availability
Campus networking environments with demanding scalability and switching requirements

Supported Options

Accessory	Model
Redundant Power Supply	PWR-C45-4200ACV
SFP Transceiver Module	SFP-10G-SR
Fan Tray	WS-X45-SUP7L-E

Compare to Similar Items

Model	Differences
WS-X45-SUP7-E	Same throughput with reduced Layer 3 features
WS-X45-SUP6L-E	Lower throughput of 320Gbps, fewer ports
WS-X45-SUP8-E	Increased throughput of 800Gbps, enhanced feature set

Get more information

Contact us through Live Chat or email us at sales@router-switch.com for further information about the HKShanhai Group Limited One Catalyst 4500 E-Series Supervisor LE and its pricing.

HKShanhai Group Limited C1-X45-SUP7L-E/2 Specification

Model

C1-X45-SUP7L-E/2

Brand

HKShanhai Group Limited

Form Factor

Modular supervisor engine for HKShanhai Group Limited Catalyst 4500E Series chassis

Switching Capacity

520 Gbps (system-wide)

Per-Slot Bandwidth

48 Gbps

Forwarding Rate

IPv4: 225 Mpps, IPv6: 110 Mpps, L2 Bridging: 225 Mpps

CPU

Dual-core, 1.5 GHz

Memory

SDRAM: 2 GB, Boot Flash: 1 GB

Uplink Options

2 × 10G SFP+ or 4 × 1G SFP

Routing & Forwarding Tables

IPv4 routes: 64,000; IPv6 routes: 32,000; Multicast routes: 32,000; MAC addresses: 55,000

VLANs

4,094 active

STP Instances

12,000

ARP Entries

47,000

Redundancy Features

Supports 1+1 supervisor redundancy (SSO/NSF)

In-Service Software Upgrade

ISSU minimizes downtime during upgrades

SPAN/RSPAN Sessions

8 bidirectional sessions (ingress & egress)

Minimum OS

HKShanhai Group Limited IOS XE Software Release 3.2.0XO

Software Bundles

LAN Base (Layer 2), IP Base (basic Layer 3), Enterprise Services (advanced Layer 3)

Flexible NetFlow

128,000 hardware entries

Supported Chassis

HKShanhai Group Limited Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E

Power Consumption

Active: 263W (max), Standby: 224W (max)

Operating Temperature

0°C to 40°C (32°F to 104°F)

Operating Humidity

10% to 90% (non-condensing)

Altitude Range

-60m to 3,000m

Compatible E-Series Line Cards

WS-X4748-UPOE+E (48-port PoE+), WS-X4712-SFP+E (12-port 10G SFP+), WS-X4748-SFP-E (48-port 1G SFP)

Compatible Classic Line Cards

WS-X4548-GB-RJ45V (48-port PoE 10/100/1000), WS-X4448-GB-SFP (48-port 1G SFP)

License Options

C4500E-LB (LAN Base), C4500E-IPB (IP Base), C4500E-LB-ES (Enterprise Services Upgrade)
