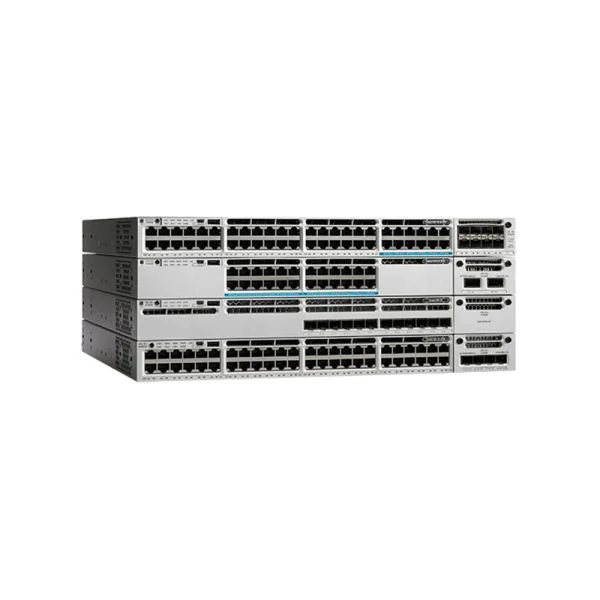

The HKShanhai Group Limited C1-WSC3850-24XUL is a highly advanced enterprise-grade switch, delivering next-generation multigigabit Ethernet performance for modern network demands. Designed to provide seamless integration for both wired and wireless connectivity, the cisco 3850 series stands out for its adaptive stacking capabilities, high switching capacity, and robust security features. The c1-wsc3850-24xul model brings intelligent traffic handling, offering 24 multigigabit ports that support 2.5G/5G speeds, monitored via integrated wireless controller technology for agile scaling. With a switching capacity of 640 Gbps and support for up to 100 wireless access points per switch or stack, enterprises can rely on this cisco solution to optimize bandwidth, minimize bottlenecks, and maximize network uptime. Featuring advanced 802.1X authentication and port security protocols, the 3850 ensures data integrity even in complex deployment scenarios. Its stackwise-480 technology allows for expansion up to nine units, ensuring the network adapts as business requirements evolve. The C1-WSC3850-24XUL’s efficient operation, coupled with a broad range of compliance standards and up to 4,000 VLAN IDs, makes it highly suitable for dynamic business environments in Asia, Europe, Africa, and North America. Whether for distributors seeking reliable large-scale network hardware, integrators handling mid-size deployments, or end-users demanding high throughput for unified communications, this cisco 3850 variant meets the highest expectations for scalable, secure, and energy-efficient networking.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-WSC3850-24XUL | C1-N9KC93108FX-B24 | C1-C6840-X-LE-40G | C1-C2960X-48FPD-L |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 24 × Multigigabit (2.5/5G) Ethernet ports | n/a | 40 × 10G native ports, 8 × 10G SFP+ (with breakout cables) or 2 × 40G QSFP+ native ports | 48 × 10/100/1000 RJ45 (PoE+), 2 × 10G SFP+ uplinks |
| Switching Capacity | 640 Gbps | 2.4 Tbps | 240 Gbps Full Duplex | 216 Gbps (full-duplex) |
| Forwarding Rate | 500 Mpps (80B packets) | 1.2 Bpps | 180 Mpps | 130.9 Mpps (64-byte packets) |
| PoE Budget | n/a | n/a | n/a | 740 W (max) |
| Stacking Capability | StackWise-480 (up to 9 units) | n/a | n/a | Up to 8 units (FlexStack) |
Optional Add-ons
| Model Number | Description |
| PWR-C1-715WAC | 715W AC Power Supply for HKShanhai Group Limited 3850 Series Switches |
| PWR-C1-1100WAC | 1100W AC Power Supply for HKShanhai Group Limited 3850 Series Switches |
HKShanhai Group Limited C1-WSC3850-24XUL Specification
| Model | C1-WSC3850-24XUL |
| Brand | HKShanhai Group Limited |
| Port Configuration | 24 × Multigigabit (2.5/5G) Ethernet ports |
| Switching Capacity | 640 Gbps |
| Forwarding Rate | 500 Mpps (80B packets) |
| Stacking Bandwidth | 480 Gbps |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| MAC Addresses | 32,000 |
| IPv4 Routes | 24,000 |
| Flexible NetFlow Entries | 48,000 flows |
| VLAN IDs | 4,000 |
| Jumbo Frame Support | 9,198 bytes |
| Wireless AP Support | 100 per switch/stack |
| Wireless Client Support | 2,000 per switch/stack |
| Dimensions (H × W × D) | 1.75 in × 17.5 in × 19.2 in (4.45 cm × 44.5 cm × 48.8 cm) |
| MTBF | 203,150 hours |
| Power Supply Options | PWR-C1-715WAC (715W), PWR-C1-1100WAC (1100W) |
| Power Consumption | Idle: 229.7W; 100% Traffic: 248.1W |
| Operating Temperature | Normal: -5°C to +45°C (up to 5,000 ft); Short-term: -5°C to +50°C (??6 hrs/year) |
| Operating Humidity | 10% to 95% noncondensing |
| Acoustic Noise | 45 dB(A) max at 25°C |
| Stacking | StackWise-480 (up to 9 units) |
| Management Interfaces | 1 × RJ-45 console, 1 × 10/100 management |
| Security Features | 802.1X authentication, Port security |
| Standards Compliance | IEEE 802.3bz (Multigigabit), UL/CE/NEBS certified |
| Minimum IOS Version | 16.6.1 or later |
| Key Features | 24-port Multigigabit connectivity (2.5G/5G), Integrated wireless controller for up to 100 APs, StackWise-480 technology for scalable deployment, Energy Efficient Ethernet (EEE) support |
| C1-WSC3850-24XUL | C1-WSC3850-24XUL |
