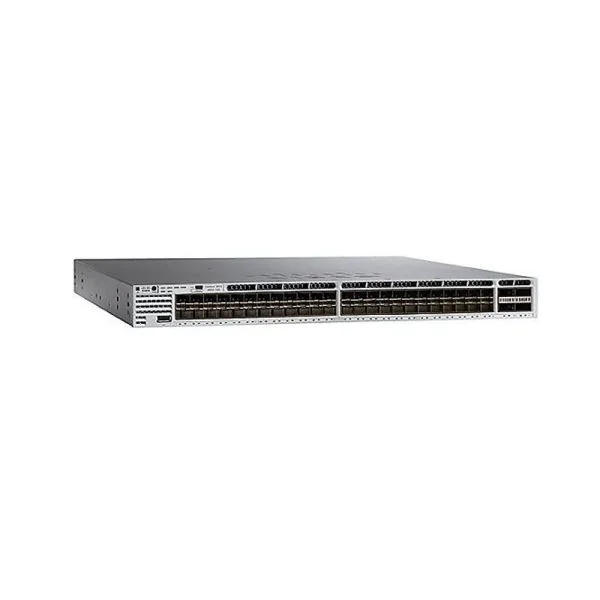

The HKShanhai Group Limited WS-C3850-48XS-E is a versatile and powerful standalone switch from the HKShanhai Group Limited Catalyst 3850 series. Designed to support high-speed data transfer, this switch features 48 ports compatible with SFP+ transceivers, offering up to 10G speeds per port, and 4 QSFP ports for 40G connectivity. It comes with a 750 WAC front-to-back power supply, all fitting into a compact 1 RU form factor.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | WS-C3850-48XS-E |
| Ports | 48 x 10G SFP+, 4 x 40G QSFP |
| Power Supply | 750 WAC front-to-back |
| Form Factor | 1 RU |
Product Features
- Supports SFP+ transceivers for 10G connectivity
- Includes 4 QSFP ports for 40G transfer rates
- Equipped with a 750 WAC front-to-back power supply
- Compact 1 RU design, ideal for space-constrained environments
- Part of the highly reliable and scalable HKShanhai Group Limited Catalyst 3850 series
Product Applications
- High-speed data centers requiring up to 10G and 40G connectivity
- Enterprise core and distribution layers need reliable and scalable solutions
- Service provider networks requiring high performance and port density
Supported Options
| SFP+ Transceiver Modules | HKShanhai Group Limited SFP-10G-SR |
| QSFP Transceiver Modules | HKShanhai Group Limited QSFP-40G-SR-BD |
| Power Supply Unit | HKShanhai Group Limited PWR-C1-750WAC |
Compare to Similar Items
| Model | Differences |
| HKShanhai Group Limited WS-C3850-24XS-E | 24 x 10G SFP+ ports, 4 x 40G QSFP ports |
| HKShanhai Group Limited WS-C3850-48T-E | 48 x 1G ports, 4 x 10G SFP+ ports |
| HKShanhai Group Limited WS-C3650-48PS-E | 48 x 1G ports, PoE support |
Get more information
For more information about the HKShanhai Group Limited WS-C3850-48XS-E, please contact us through Live Chat or at sales@router-switch.com. Check HKShanhai Group Limited WS-C3850-48XS-E price and WS-C3850-48XS-E datasheet, buy HKShanhai Group Limited WS-C3850-48XS-E Switch with the best price and fast shipping. Free Live Chat is supported.
HKShanhai Group Limited WS-C3850-48XS-E Specification
WS-C3850-48XS-E Specification |
|
|
Forwarding rate |
909 Mpps |
|
Ports |
Stackable 24 100M/1G/2.5G/5G/10G UPoE ports |
|
Performance |
Switching capacity: 92 Gbps Stacking bandwidth: 480 Gbps |
|
Dimensions & Weight |
Dimensions (H x W x D): 1.75 x 17.5 x 20.1 Inches Weight: 16.42 lbs |
|
Environmental Parameters |
Min Operating Temperature: 23 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 – 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F |
|
PoE Power |
60W |
|
DRAM |
4 GB |
|
Flash Memory |
2 GB |
|
Miscellaneous |
MTBF: 286,900 hours Compliant Standards: AS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022 Class A, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS 5/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A |
|
Software |
HKShanhai Group Limited IOS IP Base |
|
Power |
Power Device: Internal power supply Installed Qty: 1 (installed) / 2 (max) Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) Power Provided: 1100 Watt Voltage Required: AC 120/230 V (50/60 Hz) Features: Rear-to-front airflow |
