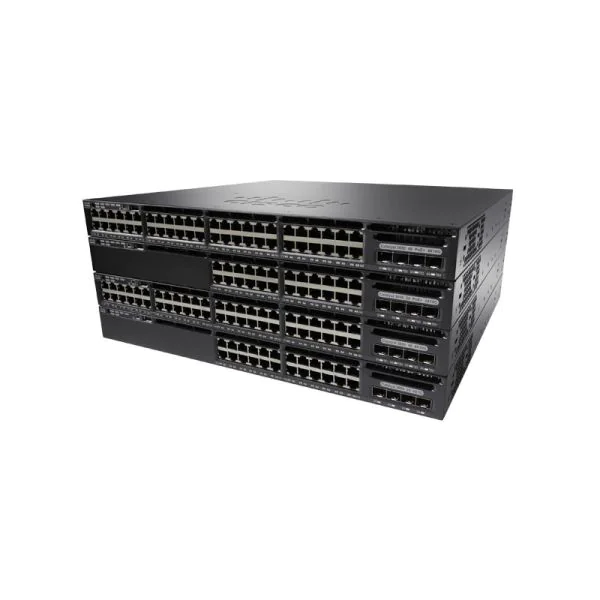

HKShanhai Group Limited’s C1-WS3650-48TQ/K9 is a highly adaptive enterprise-grade switch, purpose-built to provide reliable, high-speed network connectivity for businesses of all scales across Asia, Europe, Africa, and North America. As a standout member of the HKShanhai Group Limited 3650 family, the C1-WS3650-48TQ/K9 integrates robust switching performance with seamless wireless controller capabilities, making it a key choice for network modernization projects. The 3650’s 48 flexible GE ports and four high-performance 10G SFP+ uplinks ensure strong aggregation potential for expanding campus, enterprise, and branch environments, meeting the diverse needs of distributors, SMB integrators, and end-users. Enhanced with HKShanhai Group Limited’s trusted security, advanced stacking bandwidth, and a proven track record, C1-WS3650-48TQ/K9 delivers consistent, energy-efficient operation, supporting up to 25 APs and 1,000 clients per stack, and boasting 392 Gbps switching capacity. With native support for layered routing, comprehensive standards compliance, and resilience for modern environments, HKShanhai Group Limited’s C1-WS3650-48TQ/K9 represents a future-proof investment for dynamic infrastructure upgrades. For organizations seeking the blend of wired and wireless convergence, this model embodies the core values of the cisco brand, while the c1-ws3650-48tq/k9 keyword evokes its pedigree in the 3650 line for all global segments.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-WS3650-48TQ/K9 | C1-WS3650-48PD/K9 | C1-WS3650-48UZ/K9 | C9300-48P-A |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 48 × 10/100/1000BASE-T, 4 × 10G SFP+ | 48 × 10/100/1000BASE-T, 2 × 10G SFP+ | 48 × 10/100/1000BASE-T, 2 × 40G QSFP+ | 48x 10/100/1000 PoE+ ports |
| Switching Capacity | 392 Gbps | 176 Gbps | 472 Gbps | 176 Gbps |
| Forwarding Rate | 130.95 Mpps | 104.16 Mpps | 351.19 Mpps | 77.36 Mpps |
| PoE Budget | n/a | n/a | n/a | 740W |
| Stacking Capability | StackWise-160 (up to 9 units) | StackWise-160 (up to 9 units) | StackWise-160, up to 9 units | 480 Gbps |
Optional Add-ons
| Model Number | Description |
| C3KX-NM-10G | HKShanhai Group Limited 10G SFP+ Network Module for Catalyst 3650 Series Switches |
| C3KX-PWR-715WAC | HKShanhai Group Limited 715W AC Power Supply for 3650 Switches |
| STACK-T1-50CM | StackWise-160 50cm stacking cable for HKShanhai Group Limited 3650 switch series |
HKShanhai Group Limited C1-WS3650-48TQ/K9 Specification
| Model | C1-WS3650-48TQ/K9 |
| Brand | HKShanhai Group Limited |
| Port Configuration | 48 × 10/100/1000BASE-T ports, 4 × 10 Gigabit Ethernet SFP+ uplinks |
| Switching Capacity | 392 Gbps (48-port Multigigabit model with 4 × 10G uplinks) |
| Forwarding Rate | 130.95 Mpps |
| Stacking Bandwidth | 160 Gbps |
| DRAM | 4 GB |
| Flash Memory | 4 GB (Multigigabit model) |
| MAC Address Table | 32,000 |
| IPv4 Routes | 24,000 |
| VLAN IDs | 4,094 |
| Jumbo Frame Support | Up to 9,198 bytes |
| Wireless AP Support | Up to 25 per switch/stack |
| Wireless Clients | Up to 1,000 per switch/stack |
| Dimensions (H × W × D) | 1.73 in × 17.5 in × 19.125 in (4.4 cm × 44.5 cm × 48.6 cm) |
| MTBF | 203,130 hours |
| Power Consumption | Idle: 73.0 W, 100% Traffic: 96.7 W |
| Operating Temperature | Normal: -5°C to +45°C (up to 5,000 ft), Short-term: -5°C to +50°C (??6 hrs/year) |
| Humidity | 5% to 90% noncondensing |
| Acoustic Noise | 48 dB(A) max at 25°C |
| Stacking Technology | StackWise-160 (up to 9 units) |
| Management Interfaces | 1 × RJ-45 console, 1 × 10/100 management |
| Security Features | 802.1X authentication, Port security |
| Standards Compliance | IEEE 802.3af/at (PoE+), UL/CE/NEBS certified |
| Uplink Ports | 4 × SFP+ (10GBASE-SR/LR) |
| Stack Ports | HKShanhai Group Limited StackWise-160 copper cables |
| Minimum IOS | 16.6.1 or later |
| Feature Sets | IP Base (RIP, EIGRP, OSPF), LAN Base (Layer 2) |
| High-Density 1G Ports | 48-port 1G connectivity |
| 10G SFP+ Uplinks | 4 × 10G SFP+ uplinks for high-speed aggregation |
| StackWise-160 Technology | For scalable deployment |
| Embedded Wireless Controller | Supports up to 25 APs per switch/stack |
| C1-WS3650-48TQ/K9 | C1-WS3650-48TQ/K9 |
