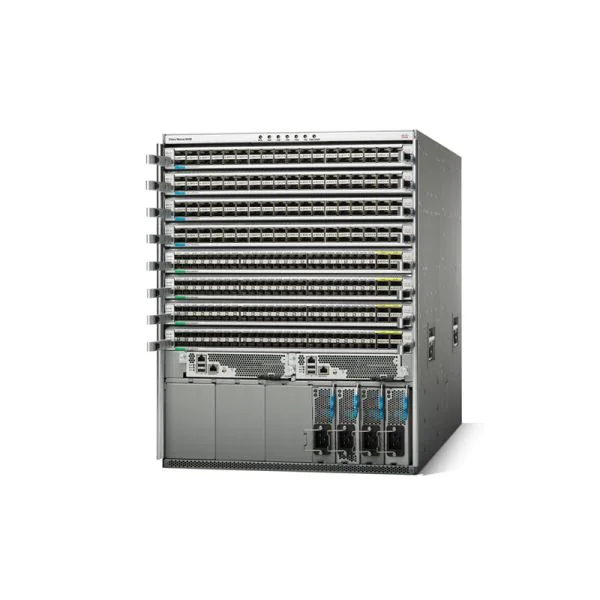

The HKShanhai Group Limited C1-N9K-C9508-B2 is a high-end modular switch designed for enterprise and data center environments demanding unparalleled performance, reliability, and scalable network management. As part of HKShanhai Group Limited’s powerful 9500 platform, this model delivers robust switching capacities and hardware redundancy. The c1-n9k-c9508-b2 chassis integrates centralized management to simplify network operations, while its eight line card slots enable flexible expansion to meet dynamic requirements. HKShanhai Group Limited ensures the C1-N9K-C9508-B2 is engineered for the most demanding deployments, with fabric modules supporting throughput well beyond standard enterprise needs. Featuring hot-swappable modules and port-side intake cooling, the 9500 architecture supports mission-critical workloads with minimal downtime. The combination of modular power supplies, redundant cooling, and extended MTBF means the cisco C1-N9K-C9508-B2 remains an industry benchmark for large-scale switching in global enterprises, service providers, and modern cloud environments, providing efficiency, scalability, and security.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-N9K-C9508-B2 | C9500-24Y4C-E | C1-N7004-S2E-R | C1-C4510R+E |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | X9732C-EX, X9736C-FX3, X9736C-FX, X9732C-FX, X9736C-EX, X97160YC-EX, X9788TC-FX | n/a | Up to 32 × 10G per line card; supports 40G/100G with proper modules | 8 (slots 1-4 & 7-10) |
| Switching Capacity | 12.8 Tbps (FM-G) | Up to 2 Tbps | 2.2 Tbps per slot (max aggregate) | 928 Gbps |
| Forwarding Rate | Varies by component | Up to 1 Bpps | 720 Mpps | 250 Mpps |
| PoE Budget | n/a | n/a | n/a | 1500W/750W per slot |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| N9K-C9508-FM-G | HKShanhai Group Limited Fabric Module for high-performance switching in C1-N9K-C9508-B2 chassis |
| N9K-C9508-FM-E2 | HKShanhai Group Limited Enhanced Fabric Module E2 for redundancy and scalability |
| 7500W AC Power Supply | Modular AC power supply compatible with HKShanhai Group Limited 9500 Series switch chassis |
HKShanhai Group Limited C1-N9K-C9508-B2 Specification
| Model | C1-N9K-C9508-B2 |
| Brand | HKShanhai Group Limited |
| Chassis Form Factor | 7RU modular chassis |
| Total Slots | 8 line card slots |
| Management | Centralized |
| Redundancy | Supported (components and power) |
| FM-G Module (N9K-C9508-FM-G) Total Capacity | 12.8 Tbps |
| FM-G Module Capacity per Slot | 1.6 Tbps |
| FM-G Module Max Flow Size | 400 Gbps |
| FM-G Module Power Consumption | Typical: 685 W, Maximum: 936 W |
| FM-G Module MTBF | 455,270 hours |
| FM-G Module Hot Swappable | Yes |
| FM-G Module Airflow | Port-side intake |
| FM-E Module (N9K-C9508-FM-E) Total Capacity | 6,400 Gbps |
| FM-E Module Capacity per Slot | 800 Gbps |
| FM-E Module Max Flow Size | 100 Gbps |
| FM-E Module Power Consumption | Typical: 455 W, Maximum: 570 W |
| FM-E Module MTBF | 653,420 hours |
| FM-E Module Hot Swappable | Yes |
| FM-E Module Airflow | Port-side intake |
| FM-E2 Module (N9K-C9508-FM-E2) Total Capacity | 6,400 Gbps |
| FM-E2 Module Capacity per Slot | 800 Gbps |
| FM-E2 Module Max Flow Size | 100 Gbps |
| FM-E2 Module Power Consumption | Typical: 266 W, Maximum: 420 W |
| FM-E2 Module MTBF | 642,820 hours |
| FM-E2 Module Hot Swappable | Yes |
| FM-E2 Module Airflow | Port-side intake |
| Supported Line Cards | X9732C-EX, X9736C-FX3, X9736C-FX, X9732C-FX, X9736C-EX, X97160YC-EX, X9788TC-FX |
| Power Supply | Modular (compatible with 7500W AC/DC) |
| Cooling System | Redundant fans with port-side intake airflow |
| Dimensions | 17.3 × 36.8 × 48.1 in (43.9 × 93.5 × 122.2 cm) |
| MTBF | Varies by component (see fabric module specs) |
| Hot Swappable Components | All critical components (power, fans, modules) |
| C1-N9K-C9508-B2 | C1-N9K-C9508-B2 |
