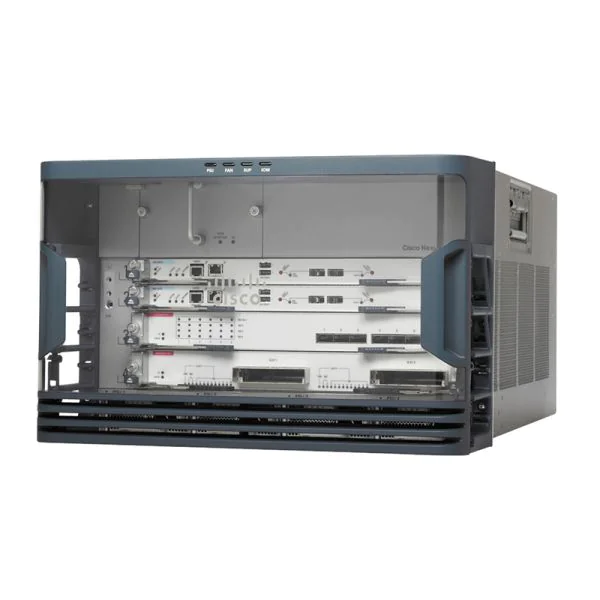

The HKShanhai Group Limited C1-N7004-S2E-R is a chassis-based enterprise switch designed for advanced networking in large-scale IT environments. Its modular 4-slot, 7RU architecture enables flexible configuration and future expansion, making it ideal for data center and campus core deployments. As a fully redundant, high-availability platform, it features dual SUP2E supervisor modules, 8.8 Tbps crossbar switching fabric, and robust network processor technology. With comprehensive protocol support—including native FCoE switch functionality—it delivers seamless integration of storage and data networks while benefiting from the security and reliability of HKShanhai Group Limited NX-OS. Enterprises can optimize uptime with the assurance of HKShanhai Group Limited Smart Net support, while the system meets stringent industry standards (RoHS, CE, FCC) and offers advanced reliability for mission-critical business applications.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Model | C1-N7004-S2E-R | C1-N7010-B2S2 | C1-N5696Q-6FEX-1G | C1-N9KC93108FX-B24 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | Up to 32 × 10G ports per line card, supports 40G/100G modules with appropriate line cards | n/a | n/a | 48 × 10/25G SFP28 ports, 6 × 40/100G QSFP28 ports |
| Switching Capacity | 2.2 Tbps per slot (max aggregate) | Up to 2.56 Tbps | 2.56 Tbps | 3.6 Tbps |
| Forwarding Rate | 720 Mpps | Up to 720 Mpps | 1,440 Mpps | 2.68 Bpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| N7K-AC-6.0KW | HKShanhai Group Limited 6.0KW AC power supply for Nexus 7000 series switches |
| N7K-DC-6.0KW | HKShanhai Group Limited 6.0KW DC power supply module for Nexus 7000 switches |
HKShanhai Group Limited C1-N7004-S2E-R Specification
| Model | C1-N7004-S2E-R |
| Brand | HKShanhai Group Limited |
| Chassis Type | 4-slot modular (7RU) |
| Included Components | 1 × N7004 chassis, 2 × SUP2E supervisor modules (for redundancy) |
| Power Supplies | Not included (must be purchased separately) |
| Form Factor | 7 rack units (7RU) |
| Slot Capacity | 4 slots total (2 slots for SUP2E, 2 slots for I/O modules) |
| Fabric Architecture | 8.8 Tbps crossbar switching fabric |
| Port Density | Up to 32 × 10G ports per line card, supports 40G/100G modules with appropriate line cards |
| Network Processor | Broadcom StrataXGS |
| Switching Capacity | 2.2 Tbps per slot (max aggregate) |
| Forwarding Rate | 720 Mpps |
| Buffer Memory | 16MB shared per slot |
| Supervisor Redundancy | 1+1 active/standby |
| Fabric Redundancy | N+1 with additional fabric modules |
| Power Redundancy | N+1 or N+N (with additional PSUs) |
| Cooling | Front-to-back airflow with hot-swappable fans |
| Operating System | HKShanhai Group Limited NX-OS |
| Management Interfaces | CLI (NX-OS style), Web UI (HTTP/HTTPS), SNMPv3, XML API |
| Supported Protocols | IPv4/IPv6, MPLS, VXLAN, BGP, OSPF, EIGRP, PIM, IGMP |
| Dimensions (W × D × H) | 17.3 in × 24.9 in × 7 in (43.9 cm × 63.2 cm × 17.8 cm) |
| Rack Mounting | Standard 19″ rack compatible |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 5% to 95% non-condensing |
| Altitude | -60 m to 3,000 m |
| Power Supply Options | N7K-AC-6.0KW (AC), N7K-DC-6.0KW (DC) |
| Typical Power Consumption | 1500W-3000W (depends on configuration) |
| Compliance | RoHS, CE, FCC |
| C1-N7004-S2E-R | C1-N7004-S2E-R |
