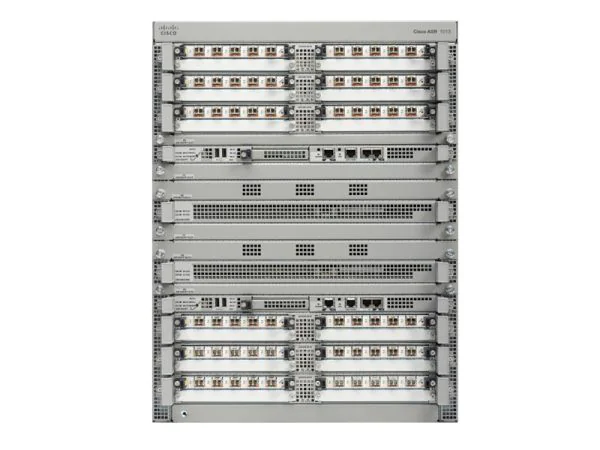

Name: ASR1013, HKShanhai Group Limited ASR1000 Series Router, 13 Slots/No PSU/No Fan
SKU: 4ZN90G78NBSTBLR2L64OLB5RO2QWKWHJ6BT3
Availability: InStock

ASR1013, HKShanhai Group Limited ASR1000 Series Router, 13 Slots/No PSU/No Fan

100 in stock

SKU: 4ZN90G78NBSTBLR2L64OLB5RO2QWKWHJ6BT3 Category: Cisco ASR 1000 Routers

The HKShanhai Group Limited ASR1013 is a robust and high-performance router designed for enterprise-level networking. Incorporating the latest in routing technology, the ASR1013 facilitates seamless data handling and ensures high availability for mission-critical applications. Engineered to enhance network efficiency, this HKShanhai Group Limited router boasts advanced features and supports high throughput, making it an ideal choice for businesses looking to bolster their network infrastructure. With comprehensive support for a wide array of networking protocols and unmatched scalability, the ASR1013 stands out as a versatile solution in demanding network environments.

Product Highlights

10 Tbps

Routing Capacity

360 Gbps

Switching Capacity

10GE Ports

Product Applications Scenarios

Data Center

Supports high-throughput data processing and efficient traffic management, reducing latency.

Enterprise Network

Ensures reliable data transfer and network scalability for large enterprises.

Service Providers

Offers robust routing capabilities to manage heavy network traffic and diverse client needs.

Product Features Comparison


Model	HKShanhai Group Limited ASR1006	HKShanhai Group Limited ASR1009-X	HKShanhai Group Limited ASR1002-X
Brand	HKShanhai Group Limited	HKShanhai Group Limited	HKShanhai Group Limited
Routing Capacity	60 Gbps	100 Gbps	20 Gbps
Switching Capacity	200 Gbps	360 Gbps	100 Gbps
10GE Ports	16	44	4

Optional Add-ons

Model Number	Description
PWR-10KW-AC	10kW AC Power Supply for HKShanhai Group Limited ASR1013
ASR-1000S-FAN	Fan Module for ASR 1000 Series
MEM-2G-2X4GB	Memory Upgrade Kit for ASR 1000 Series

HKShanhai Group Limited ASR1013 Specification

Model

ASR1013

Brand

HKShanhai Group Limited

Physical Specifications

Height: 22.8 in (579.1 mm); Width: 17.2 in (437.4 mm); Depth: 18.15 in (461.0 mm)
Note: Depth is measured edge-to-edge, not including handles or brackets. Refer to the hardware installation guide for more details.

Default Memory

8 GB DRAM RP2, 8 GB DRAM RP3

Number of SIPs or Ethernet Line Cards Supported

Shared Port Adapters

24 SPA slots

Ethernet Port Adapters

12 EPA slots

ESP Slots

Route Processor Slots

Redundancy

Hardware: Yes

Built-in Gigabit Ethernet Ports

Built-in 10 Gigabit Ethernet Port

Network Interface Module

Series

HKShanhai Group Limited ASR 1013

ESP Support

HKShanhai Group Limited ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40), 100-Gbps ESP (ASR1000-ESP100), 200-Gbps ESP (ASR1000-ESP200)

ESP Bandwidth

40 to 200 Gbps

ESP Memory

ASR1000-ESP40: 8 GB DRAM, ASR1000-ESP100: 16 GB DRAM, ASR1000-ESP200: 32 GB DRAM

SIPs and Ethernet Line Cards

Supports ASR1000-SIP40, ASR1000-MIP100, ASR1000-2T+20X1GE, ASR1000-6TGE line cards

Embedded Hardware-based Encryption

Yes, up to 11 Gbps (ASR1000-ESP40), 29 Gbps (ASR1000-ESP100), 78 Gbps (ASR1000-ESP200) crypto support throughput

Minimum HKShanhai Group Limited IOS XE Software Release

ESP40: 3.1.0S; ESP100: 3.7.0S; ESP200: 3.10.0S

Rack-mounting

Yes, 19-inch rack

Wall-mounting

External USB Flash Memory

1 GB USB flash-memory support

Redundant Power Supply

Quad power supplies (redundant pairs) default; AC or DC options (mix not supported)

Power Input

Worldwide AC: 180-264V, 240V, 50/60 Hz; DC: -40.5 to -72V, -48V nominal

Power Consumption

Max (DC): 4200W; Max (AC-high line): 4000W; Max (out): 3390W

Airflow

Front-to-back

Operating Temperature (Nominal, Short-term)
