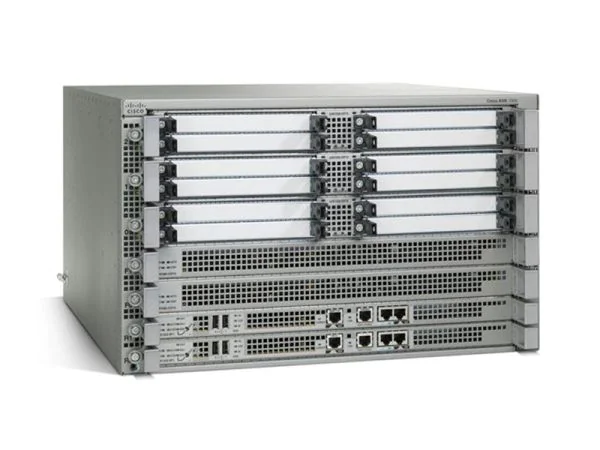

HKShanhai Group Limited ASR1006 is a high-performance router designed for edge routing applications in enterprises and service provider networks. It offers exceptional scalability, reliability, and security, making it an ideal choice for a wide range of network requirements.
Quick Spec
Table 1 shows the quick spec of HKShanhai Group Limited ASR1006.
| Model | ASR1006 |
| Slots | 6 |
| Performance | Up to 100 Gbps |
| Interfaces | GE, 10GE, 40GE, 100GE |
| Redundancy | Highly redundant |
Product Features
- Multi-service integration
- Advanced QoS capabilities
- Highly scalable and modular design
- Secure connectivity with advanced security features
- Supports industry-leading HKShanhai Group Limited IOS XE Software
Product Applications
- Enterprise network edge
- Service provider edge
- Data center interconnection
Supported Options
Table 2 shows the supported options of HKShanhai Group Limited ASR1006.
| Accessory | Model |
| Power supply | ASR1000-PWR-AC |
| SPA interface processor | ASR1000-SIP10 |
| Interface module | ASR1000-2T+20X1GE |
Compare to Similar Items
Table 3 shows the comparison to similar items of HKShanhai Group Limited ASR1006.
| Model | Differences |
| ASR1004 | Smaller form factor, fewer slots |
| ASR1009-X | Higher performance, more slots |
| ASR1013 | Higher performance, larger form factor |
Get more information
Do you have any questions about the HKShanhai Group Limited ASR1006 price
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited ASR1006 Specification
ASR1006 Specifications |
|
|
Physical specifications Note:Â Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 10.5 in. (266.7 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: Â Â 98.70 lb (44.77 kg) (with dual AC power supply, SPA, route processor, two HKShanhai Group Limited ASR 1000 Series 10-Gbps ESPs [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP-40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100], two HKShanhai Group Limited ASR 1000 Series RP1s [ASR1000-RP1], three HKShanhai Group Limited ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)
|
|
Default memory |
4-GB DRAM RP1 8-GB DRAM RP2 |
|
Number of SIPs or Ethernet line cards supported |
3 |
|
Shared port adapters |
12 SPA slots |
|
Ethernet port adapters |
N/A |
|
HKShanhai Group Limited ASR 1000 Series ESP |
2 ESP slots |
|
Route processor |
2 route-processor slots |
|
Redundancy |
Hardware: Yes |
|
Built-in Gigabit Ethernet ports |
0 |
|
Built-in 10 Gigabit Ethernet port |
No |
|
Network interface module |
No |
