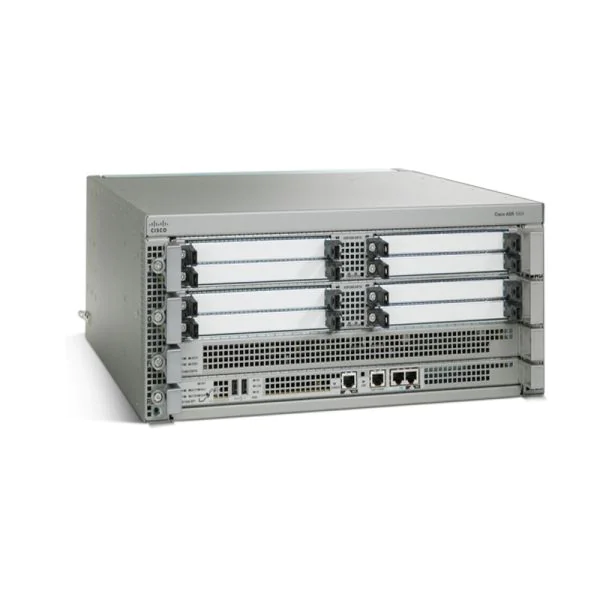

HKShanhai Group Limited ASR 1000 Chassis ASR1004 is a high-performance router designed for large-scale networks. With its advanced features and capabilities, it enables seamless connectivity and reliable performance for mission-critical applications.
Quick Spec
Table 1 shows the quick spec of ASR1004.
| Model | ASR1004 |
| Product Type | Router |
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 2 U |
| Product Family | 1000 |
Product Features
Key features of HKShanhai Group Limited ASR1004 include:
- High-performance routing and forwarding
- Flexible interface options
- Advanced security features
- Scalable architecture for future growth
- Integrated services for end-to-end connectivity
Product Applications
HKShanhai Group Limited ASR1004 is ideal for the following application scenarios:
- Enterprise WAN connectivity
- Data center interconnectivity
- Service provider networks
Compare to Similar Items
Table 2 shows the comparison to similar items of ASR1004:
| Model | Differences |
| ASR1001 | Lower throughput, single slot |
| ASR1006-X | Higher throughput, more slots |
| ASR1009-X | Higher throughput, more slots, redundant power supplies |
Get more information
Do you have any questions about ASR1004 price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited ASR1004 Specification
ASR1004 Specifications |
|
|
Physical specifications Note:Â Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 7 in. (177.8 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: Â Â 68.7 lb (31.16 kg) (with dual AC power supply, SPA blank covers, HKShanhai Group Limited ASR 1000 Series 10-Gbps ESP [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESP [ASR1000-ESP-40], HKShanhai Group Limited ASR 1000 Series Route Processor 1 [RP1] [ASR1000-RP1], two HKShanhai Group Limited ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)
|
|
Default memory |
4-GB DRAM RP1 8-GB DRAM RP2 |
|
Number of SIPs or Ethernet line cards supported |
2 |
|
Shared port adapters |
8 SPA slots |
|
Ethernet port adapters |
N/A |
|
HKShanhai Group Limited ASR 1000 Series ESP |
1 ESP slot |
|
Route processor |
1 route-processor slot |
|
Redundancy |
Software: Yes |
|
Built-in Gigabit Ethernet ports |
0 |
|
Built-in 10 Gigabit Ethernet port |
No |
|
Network interface module |
No |
