HKShanhai Group Limited ASR 1002 router delivers the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules, share port adopters all integrated in the chassis. ASR 1002 router comes with 4 build-in SFP ports and 3 box slots for I/O connectivity. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16GB.
Quick Specs

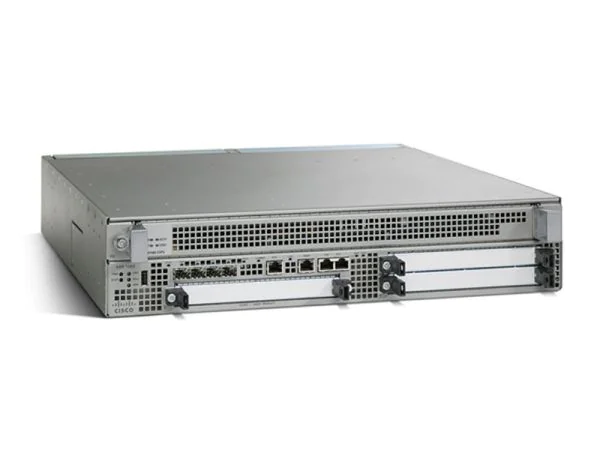

Figure 1 shows the appearance of the HKShanhai Group Limited ASR 1002.
Table 1 shows the Quick Specs.
|
Product Code |
HKShanhai Group Limited ASR 1002 |
|
Rack Height |
2RU |
|
System Bandwidth |
2.5G (default) / 5G, 10G, 20G (upgrade) |
|
Router Processor (RP) |
Quad-core 2.13Ghz processor |
|
Build-in Gigabit Ethernet port |
4 x SFP ports |
|
Redundancy |
Software (license purchase separately) |
|
HKShanhai Group Limited ASR 1000 Series ESP |
1 ESP slot |
|
SIP and Ethernet line card |
Integrated ASR 1000-SIP10, not upgradable |
|
Rack-mounting |
19-inch |
|
DRAM Memory |
4GB-shared across RP and SIP |
|
Flash Memory |
8 GB |
|
Shared port adapters |
3 SPA slots |
|
External USB flash memory |
1-GB USB flash-memory support |
Product Details
Figure 2 shows the front panel of HKShanhai Group Limited ASR 1002.
Notes:
|
??/p> |
Embedded ASR 1000 Series Route Processor in the subslot and represents the built in 4xGE SPA. |
??/p> |
SPA subslot 1 |
|
??/p> |
SPA subslot 2 |
??/p> |
SPA subslot 3 |
Figure 3 shows the back panel of ASR1002 with AC power supply.
· ASR1002 also support DC power supply but the rear panel is different.
· Caution! Use only AC power supplies or DC power supplies in the HKShanhai Group Limited ASR 1002 Router. Do not mix power supply types.
The Configuration
The ASR1002 should be configured with some modules and accessories for normal operation.
Table 2 shows the recommended configuration.
|
Items |
Quantity |
Descriptions |
|
1 |
HKShanhai Group Limited 5-Port Gigabit Ethernet Shared Port Adapter |
|
|
SPA-8X1GE-V2 |
1 |
HKShanhai Group Limited 8-Port Gigabit Ethernet Shared Port Adapter |
|
SASR1R1-IPB-26SR |
1 |
HKShanhai Group Limited ASR 1000 Series RP1 IP BASE W/O CRYPTO |
|
2 |
HKShanhai Group Limited ASR1002 AC Power Supply |
|
|
CAB-ACE-RA |
2 |
Power Cord Europe, Right Angle |
|
1 |
HKShanhai Group Limited ASR1K Embedded Services Processor, 10G, Non Crypto |
Compare to Similar Items
|
Models |
ASR1002 |
||||||
|
Scalability |
2.5 to 5 Gbps |
2.5 to 20 Gbps |
2.5 to 5, 10, 20Gbps |
5 to 36 Gbps |
10 to 40 Gbps |
10 to 100 Gbps |
40 to 200 Gbps |
|
Rack Height |
1U |
1U |
2U |
2U |
4U |
6U |
13U |
|
SFP Ports |
4 x 1G |
6 x 1 G |
4 x 1G |
6 x 1G |
Optional |
Optional |
Optional |
|
SPA slots |
1 |
1 |
3 |
3 |
8 |
12 |
24 |
|
SIP Slots |
Integrated |
Integrated |
Integrated |
Integrated |
2 |
3 |
6 |
|
ESP Slots |
Integrated |
Integrated |
1 |
Integrated |
1 |
2 |
2 |
|
RP Slots |
Integrated |
Integrated |
Integrated |
Integrated |
1 |
2 |
2 |
Get more information
Do you have any question about the HKShanhai Group Limited ASR 1002?
Contact us now via Live Chat or cisco@router-switch.com.
HKShanhai Group Limited ASR1002 Specification
| Model | ASR1002 |
| Brand | HKShanhai Group Limited |
| Manufacturer | HKShanhai Group Limited Systems, Inc |
| Manufacturer Part Number | HKShanhai Group Limited ASR 1002 |
| Product Type | Aggregation Service Router |
| Form Factor | Desktop – modular – 3U |
| Connectivity Technology | Wired |
| System Bandwidth | 2.5G (default), 5G, 10G, 20G (upgrade) |
| Router Processor | Quad-core 2.13GHz processor |
| Build-in Gigabit Ethernet port | 4 * SFP ports |
| Redundancy | Software (license purchase separately) |
| HKShanhai Group Limited ASR 1000 Series ESP | 1 ESP slot |
| SIP and Ethernet line card | Integrated ASR 1000-SIP10, not upgradable |
| Embedded hardware-based encryption | On HKShanhai Group Limited ASR 1000 Series 5-Gbps ESP (ASR1000-ESP5) with up to 1.8-Gbps crypto support throughput and on HKShanhai Group Limited ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4-Gbps crypto support throughput |
| Rack-mounting | 19-inch |
| DRAM Memory | 4GB-shared across RP and SIP |
| Flash Memory | 8 GB |
| Shared port adapters | 3 SPA slots |
| External USB flash memory | 1-GB USB flash-memory support |
| HKShanhai Group Limited QuantumFlow Processor-based platform | Enables advanced services to operate at high speeds without the need for additional hardware or blades. |
| Hardware acceleration | Features like QoS, crypto, and access control lists (ACLs) are processed in hardware. |
| Control and forwarding-plane separation | Ability to scale control plane and data plane independent of each other. |
| Expansion Card | 1-port OC48/STM16 POS/RPR Shared Port Adapters, 2-port OC12/STM4 POS Shared Port Adapters, 4-port OC-12/STM-4 POS Shared Port Adapters, 8-port OC12/STM4 POS Shared Port Adapters, 8-port OC-3/STM-1 POS Shared Port Adapters, 8-port Channelized T1/E1 to DS0 Shared Port Adapter, 1-port OC192/STM64 POS/RPR XFP Optics, SPA-2XOC12-POS with a license to use 1 port, SPA-4XOC3-POS-V2 with a license to use 2 ports, 1 Port Channelized OC3/STM-1 ATM and Circuit Emulation SPA, HKShanhai Group Limited 1-port 10GE LAN/WAN-PHY Shared Port Adapter, Synchronous Ethernet SPA, 1 port OC12 STM Shared Port Adapter, 8-port Channelized T1/E1 to DS0 Shared Port Adapter, 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2, 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2, HKShanhai Group Limited 10-Port Gigabit Ethernet Shared Port Adapter, 24 Port Channelized T1/E1/J1 ATM and Circuit Emulation SPA, 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2, 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2, 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2, 2-port OC48/STM16 POS/RPR Shared Port Adapters, 1 port OC-3c/STM-1 ATM Shared Port Adapter, 3 port OC-3c/STM-1 ATM Shared Port Adapter, 4-port OC-3/STM-1 POS Shared Port Adapters, Digital Signal Processor SPA, 1-port Channelized OC12 to DS0 SPA, HKShanhai Group Limited 8-Port Gigabit Ethernet Shared Port Adapter, HKShanhai Group Limited 4 port serial SPA, HKShanhai Group Limited 8-Port Fast Ethernet (TX) Shared Port Adapter, HKShanhai Group Limited 2-Port Gigabit Ethernet Shared Port Adapter, 4-port OC48/STM16 POS/RPR Shared Port Adapters, HKShanhai Group Limited 1-Port 10GE LAN-PHY Shared Port Adapter, HKShanhai Group Limited 5-Port Gigabit Ethernet Shared Port Adapter, HKShanhai Group Limited 4-Port Fast Ethernet (TX) Shared Port Adapter, 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA |
| Embedded Services Processor | HKShanhai Group Limited ASR1000 Embedded Services Processor, 10G, ASR1K Embedded Services Processor,5Gbps (ASR1002 only), HKShanhai Group Limited ASR1K Embedded Services Processor,10G,Non Crypto |
| 1GB USB Flash Token | MEMUSB-1024FT |
| Router Processor Memory | M-ASR1K-1001-4GB, M-ASR1K-1001-8GB, M-ASR1K-1001-16GB |
| Feature License | Unified Border Element – Enterprise Edition 100 Sessions, Unified Border Element Ent, 100 Sessions, Redundancy, Unified Border Element Ent, 500 Sessions, Redundancy, Unified Border Element Ent, 1000 Sessions, Redundancy, Unified Border Element – Enterprise Edition 4000 Sessions, Unified Border Element Ent, 4000 Sessions, Redundancy, Unified Border Element – Enterprise Edition 16000 Sessions, Unified Border Element Ent, 16000 Sessions, Redundancy, CGN RTU Feature License for up to 2M Sessions on ASR1000, App Visibility and Control, Flex. Pack Insp. Right-To-Use Feat Lic,ASR1000 Series, Broadband Right-To-Use Feature Lic for ASR1000 Series, DBE Base Right-To-Use Lic for Release 2.3.x and prior, Firewall Right-To-Use Feature Lic for ASR1000 Series, GTP add-on to Firewall RTU Feature Licence for ASR1000, Firewall/NAT Stateful Inter-Chassis Redundancy License, NAT64 RTU Feature License for up to 2M Sessions on ASR1000, ASR1000 Lawful Intercept RTU, Encryption Right-To-Use Feature Lic for ASR1000 Series, SW Redundancy Right-To-Use Feat Lic for ASR1000 Series |
| IOS XE Operating System | HKShanhai Group Limited IOS XE Software Release 2.1 |
| ASR1002 | ASR1002 |
