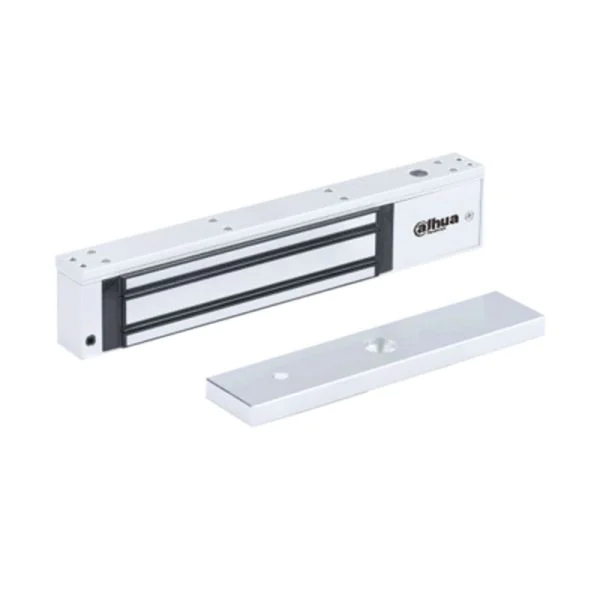

The Dahua ASF280A is a high-performance single door magnetic lock designed for secure access control. Ideal for a variety of environments, this lock delivers reliable locking power with a holding force of up to 280 kg. It is easy to install and operate, making it a perfect solution for enhancing security in residential, commercial, and industrial settings.
Quick Spec
| Brand | Dahua |
| Model | ASF280A |
| Type | Single Door Magnetic Lock |
| Holding Force | 280 kg |
| Voltage | DC 12V/24V |
Product Features
- Strong holding force up to 280 kg, ensuring maximum security.
- Supports fail-safe and fail-secure operation modes.
- Compact and robust design for versatile usage.
- Easy installation with standard mounting hardware included.
- Low power consumption for energy efficiency.
Product Applications
- Office buildings: Enhancing access control at entry and exit points.
- Residential complexes: Providing secure door locking for apartments.
- Industrial areas: Ensuring restricted access to sensitive zones.
Supported Options
| Accessory | Model |
| Mounting Bracket | ASF280A-MB1 |
| Armature Plate | ASF280A-AP1 |
| Power Supply | ASF280A-PS1 |
Compare to Similar Items
| Model | Differences |
| ASF280B | Higher holding force of 350 kg, slightly larger size. |
| ASF180A | Lower holding force of 180 kg, more compact design. |
| ASF300A | Similar holding force, added LED status indicator. |
Get more information
For further information about the Dahua ASF280A and its price, contact us through Live Chat or email us at sales@router-switch.com. Check Dahua ASF280A price and ASF280A datasheet, and buy Dahua ASF280A with best price and fast shipping. Free Live Chat is supported.
Dahua ASF280A Specification
ASF280A Specifications |
|
| Brand | Dahua |
| Model | ASF280A |
| Product Type | Single Door Magnetic Lock |
| Holding Force | 280 kg (617 lbs) |
| Operating Voltage | 12V/24V DC |
| Current Draw | 500mA/12V DC, 250mA/24V DC |
| Dimensions | 250 x 42 x 25 mm |
| Door Type | Single Door |
| Installation | Surface mount |
| Material | Anodized aluminum |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% – 90% (non-condensing) |
| Certifications | CE, FCC |
| Lock Indicator | Built-in LED |
| Magnet Finish | Zinc plated |
| Armature Plate Dimensions | 180 x 38 x 12 mm |
| Mounting Hardware | Included |
| Warranty | 3 years |
| Suitable For | Office doors, home doors |
| Available Accessories | Bracket for inward opening doors |
