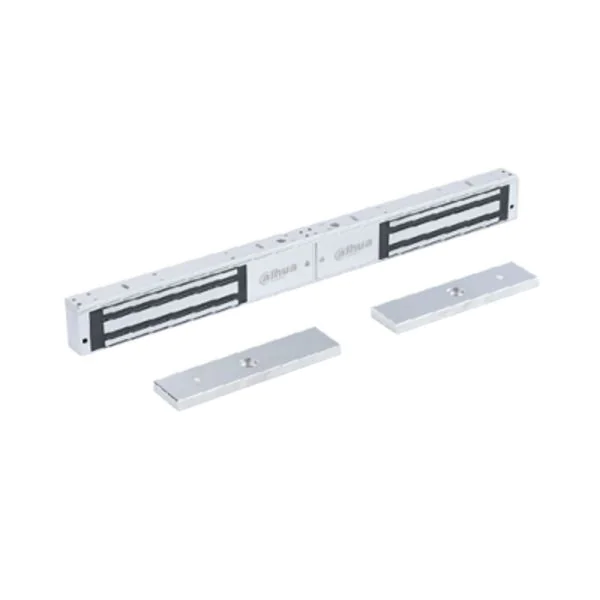

The Dahua ASF500B Double Door Magnetic Lock is an advanced security solution designed explicitly for double door access control. This robust and reliable magnetic lock by Dahua offers high-performance operational stability ensuring utmost security for various applications. Ideal for places requiring efficient and secure door locking mechanisms.
Quick Spec
| Lock Type | Electromagnetic |
| Holding Force | 2 x 500kg |
| Voltage | DC 12V/24V |
| Current Draw | 480mA/12V, 240mA/24V |
| Material | Aluminum Alloy |
Product Features
- High holding force of up to 500kg per door.
- Dual voltage input (12V/24V DC).
- Low power consumption for sustainable use.
- Aluminum Alloy structure increases durability and reliability.
- Easy installation for enhanced user convenience.
Product Applications
- Securing entrance and exit doors in commercial and residential buildings.
- High-security areas such as banks and financial institutions.
- Access control in educational institutions and research facilities.
Supported Options
| Mounting Plate | BM-500 |
| Power Supply Unit | PSU-12V/3A |
| Anti-theft Bracket | AB-500 |
Compare to Similar Items
| Model | Difference |
| Dahua ASF300B | Less holding force, for single door only |
| Dahua ASF700B | Higher holding force, suitable for high-security doors |
| Dahua ASF400B | Same holding force, designed for smaller doors |
Get more information
Check Dahua ASF500B price and ASF500B datasheet, buy Dahua ASF500B Magnetic Lock with best price and fast shipping. Free Live Chat are supported.
Dahua ASF500B Specification
ASF500B Specifications |
|
| Brand | Dahua |
| Model | ASF500B |
| Product Type | Double Door Magnetic Lock |
| Holding Force | 500kg x 2 |
| Voltage | 12/24V DC |
| Current Draw | 480mA at 12V, 240mA at 24V |
| Lock Type | Electromagnetic |
| Installation Type | Surface Mounted |
| Material | Stainless Steel |
| Operating Temperature | -10 to +55°C |
| Operating Humidity | 0 to 90% (non-condensing) |
| LED Indicator | Yes |
| Signal Output | NO/NC/COM |
| Dimensions | 500 x 48 x 25 mm |
| Finishes for Shell | Anodized aluminum |
| Anti-Residual Magnetism | Yes |
| Certificate | CE, RoHS |
| Mounting Hardware | Included |
| Warranty | 3 years |
| Application | Indoor |
